Description

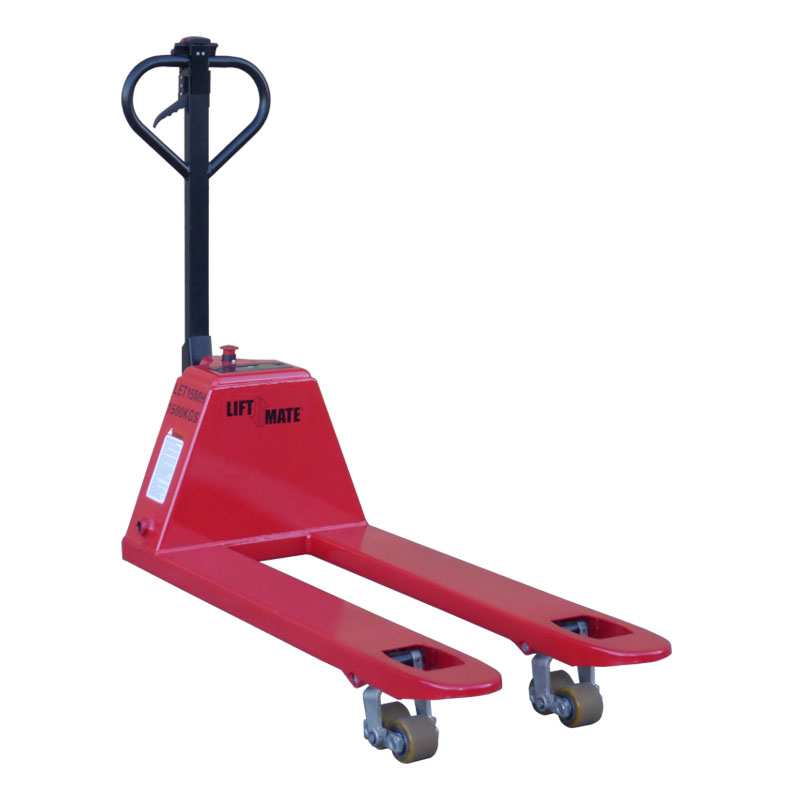

1.5 Tonne Semi-Electric Pallet Truck
- Powered drive, manual hydraulic lift
- Easy to operate, powerful and portable semi- electric pallet truck
- Ergonomically designed handle with LED battery indicator
- Reversing button and Accelerator on handle
- The pallet jack’s forks are designed for easy pallet entry
- Portable lithium battery
- Quick charging – our semi-electric pump truck can be charged between 2 and 5 hours
- Integrated design of Key Switch and Emergency Stop
- This semi-powered pallet truck requires minimum maintenance
- Optional handle rain cover available – see image above
Technical Specifications:
| Model | LEMP15M 540×1000 | LEMP15M 540×1150 |
| Drive | Electric | |
| Capacity | 1500 kg | |
| Load Centre | 500 mm | 600 mm |
| Length of Fork | 1000 mm | 1150 mm |
| Width over Forks | 540 mm | 540 mm |
| Raised Height | 200 mm | |
| Lowered Height | 80 mm | |
| Fork Thickness | 55 mm | |
| Overall Length | 1390 mm | 1540 mm |
| Rear Length | 390 mm | |
| Battery | 24V / 20Ah | |
| Minimum Turning Radius | 1190 mm | 1340 mm |
| Aisle Width with 1000 x 1200 Lengthways | 1950 mm | 2100 mm |
| Aisle Width with 800 x 1200 Lengthways | 1770 mm | 1920 mm |
| Type of Load Rollers | Single | Tandem |
| Maximum Travel Speed (laden) | 4 km/h | |
| Maximum Travel Speed (unladen) | 4.5 km/h | |
| Gradeability (laden) | 3% | |
| Gradeability (unladen) | 18% | |
| Drive Motor | 0.5 kW | |
| Weight (with battery) | 105 – 110 kg | |
