Anco Midispan Longspan Shelving

Description

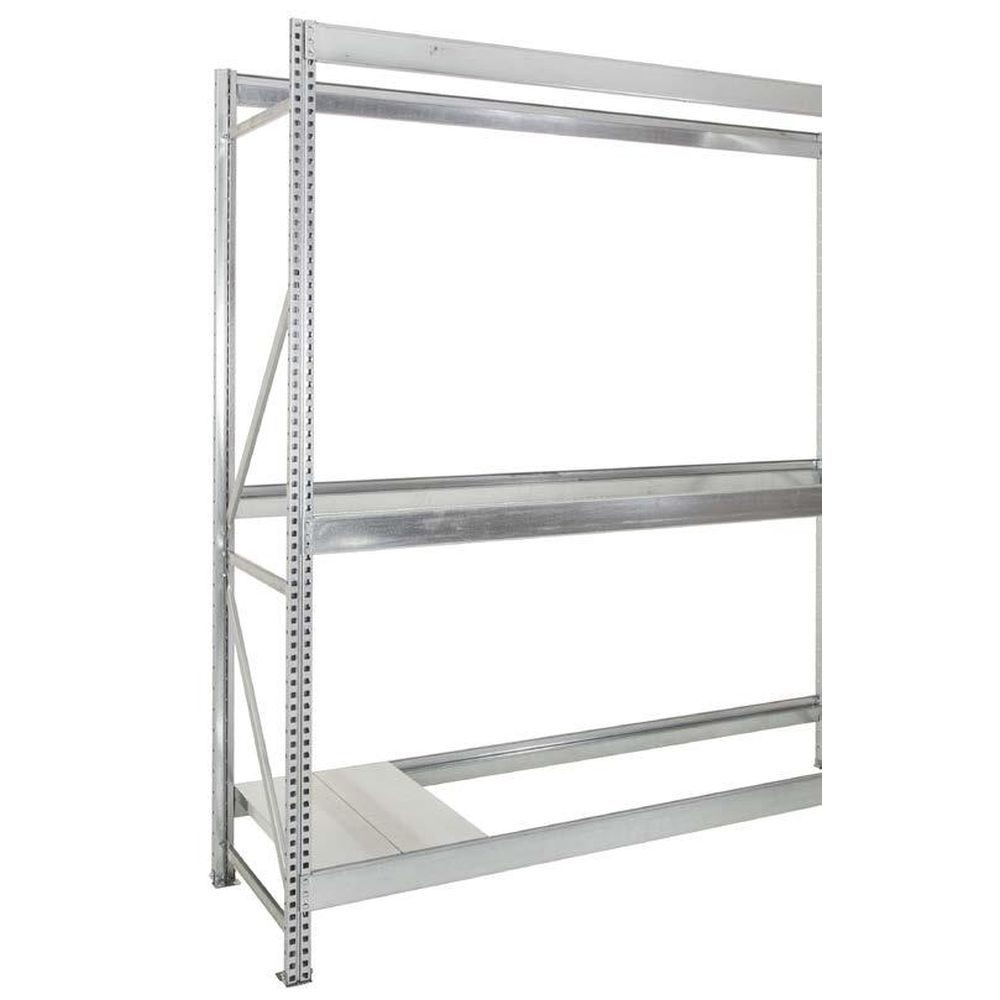

Midispan is our longspan shelving system with steel decking panels supplied in a contemporary pre-galvanised finish.

This makes it ideal for the most demanding applications and environments. The profiles are designed in such a way to ensure there are no sharp edges when assembling or in use. The system has a wide range of profiles and sizes which provides complete flexibility when designing your warehouse. Along with a range of accessories that make it simple to store many different products as well as bespoke solutions for the automotive industry.

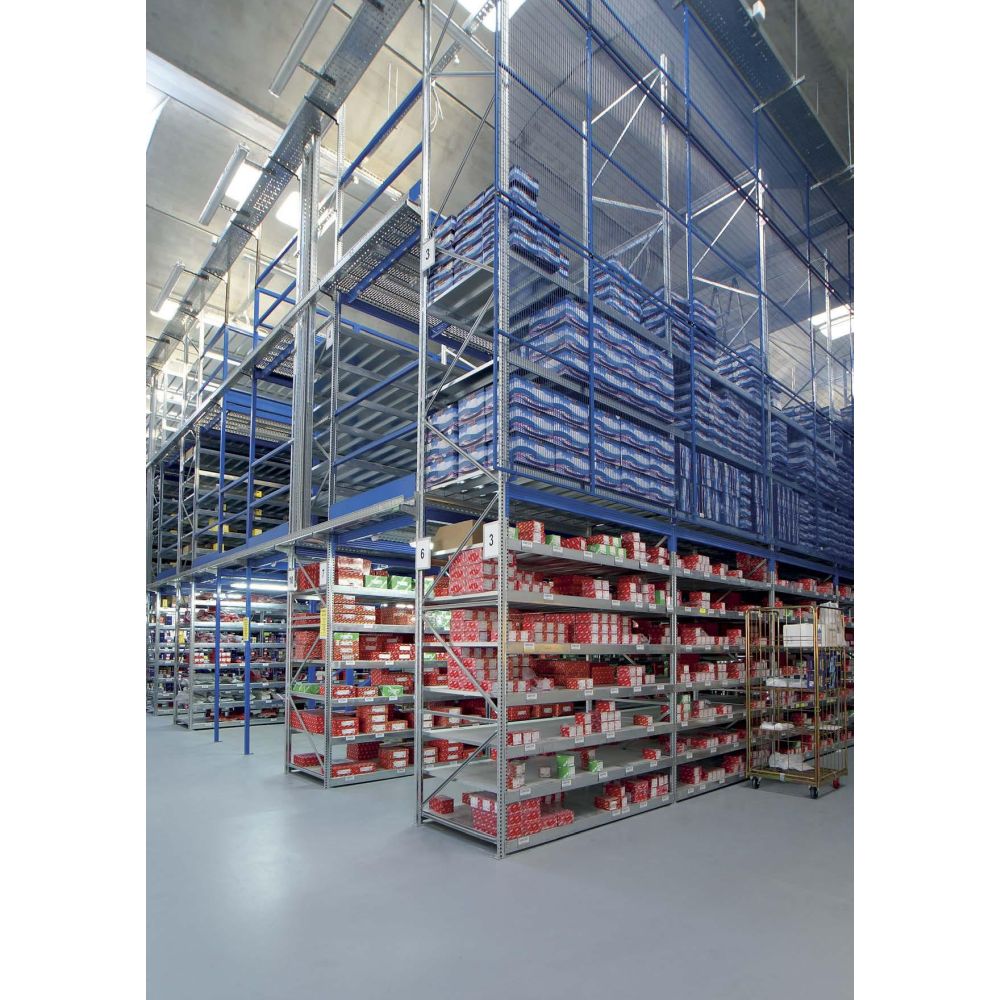

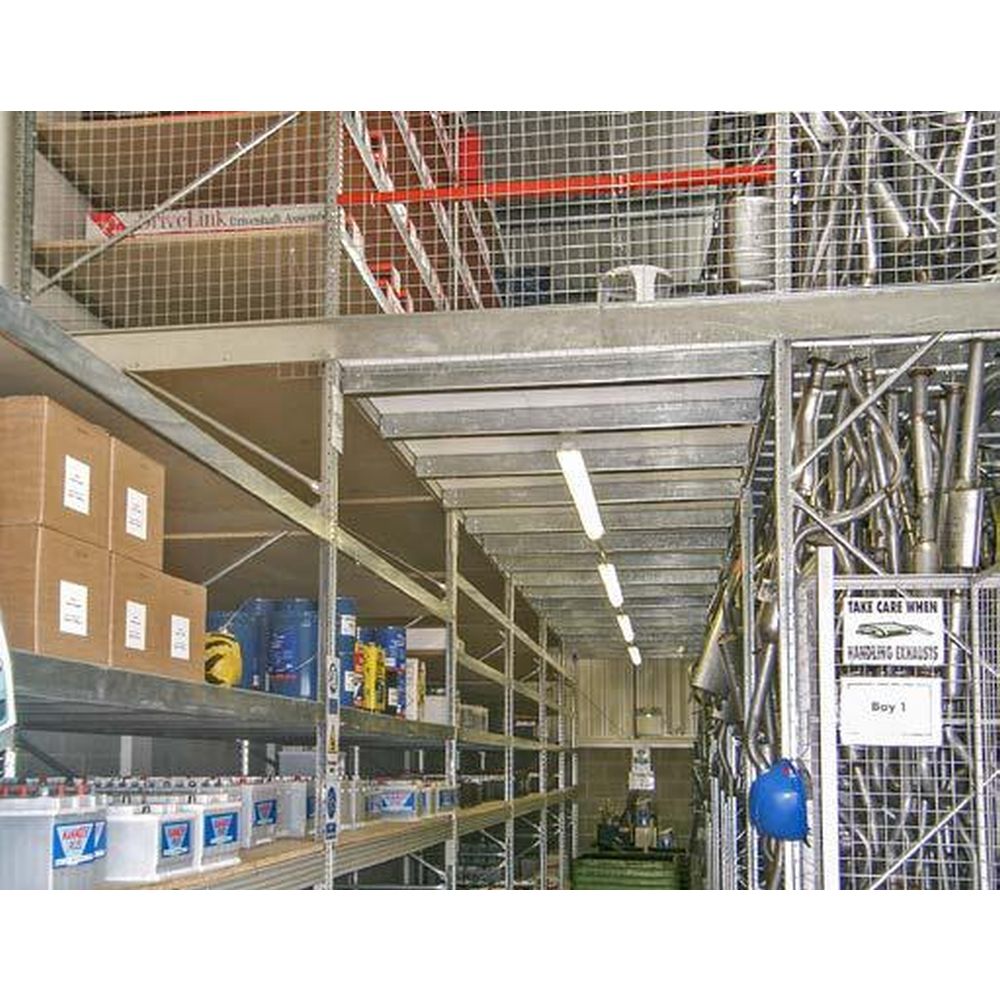

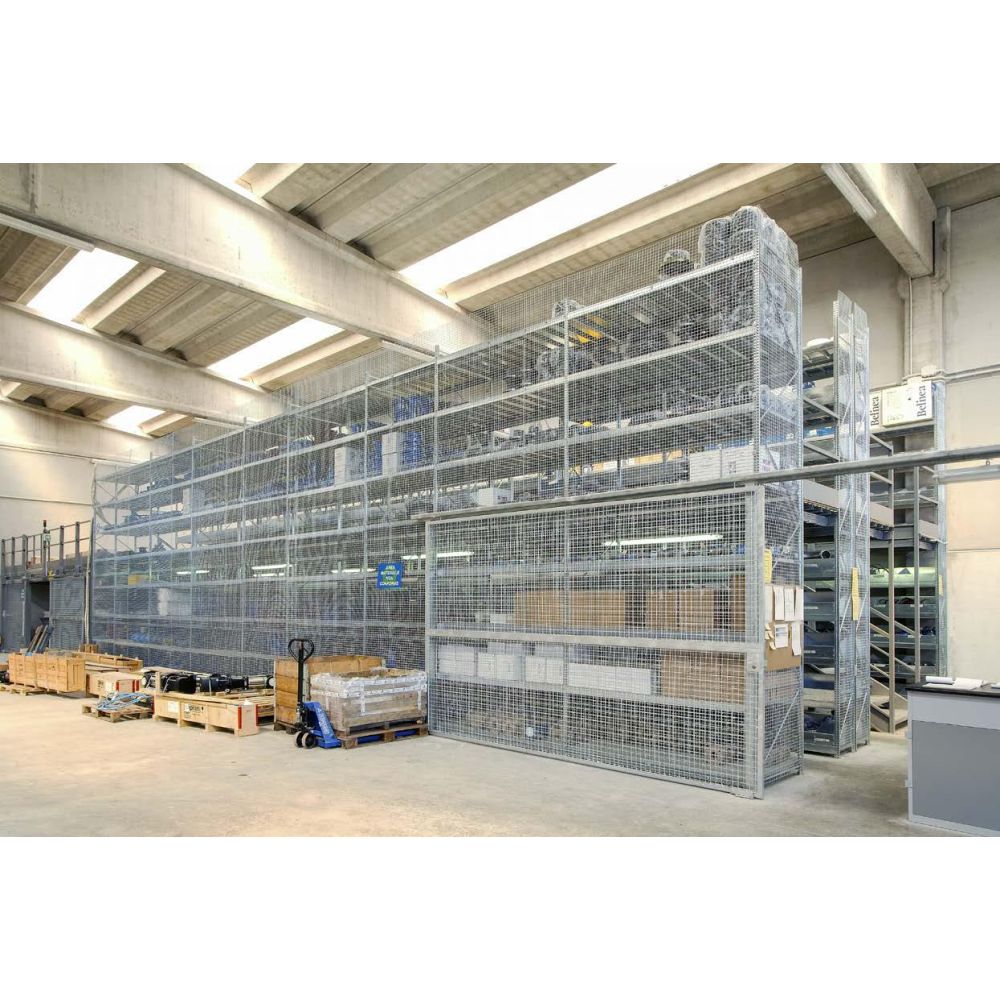

The system has a wide range of profiles and sizes which provides complete flexibility when designing your warehouse. Along with a range of accessories that make it  simple to store many different products as well as bespoke solutions for the automotive industry or to build a high bay and multi-tier installations.

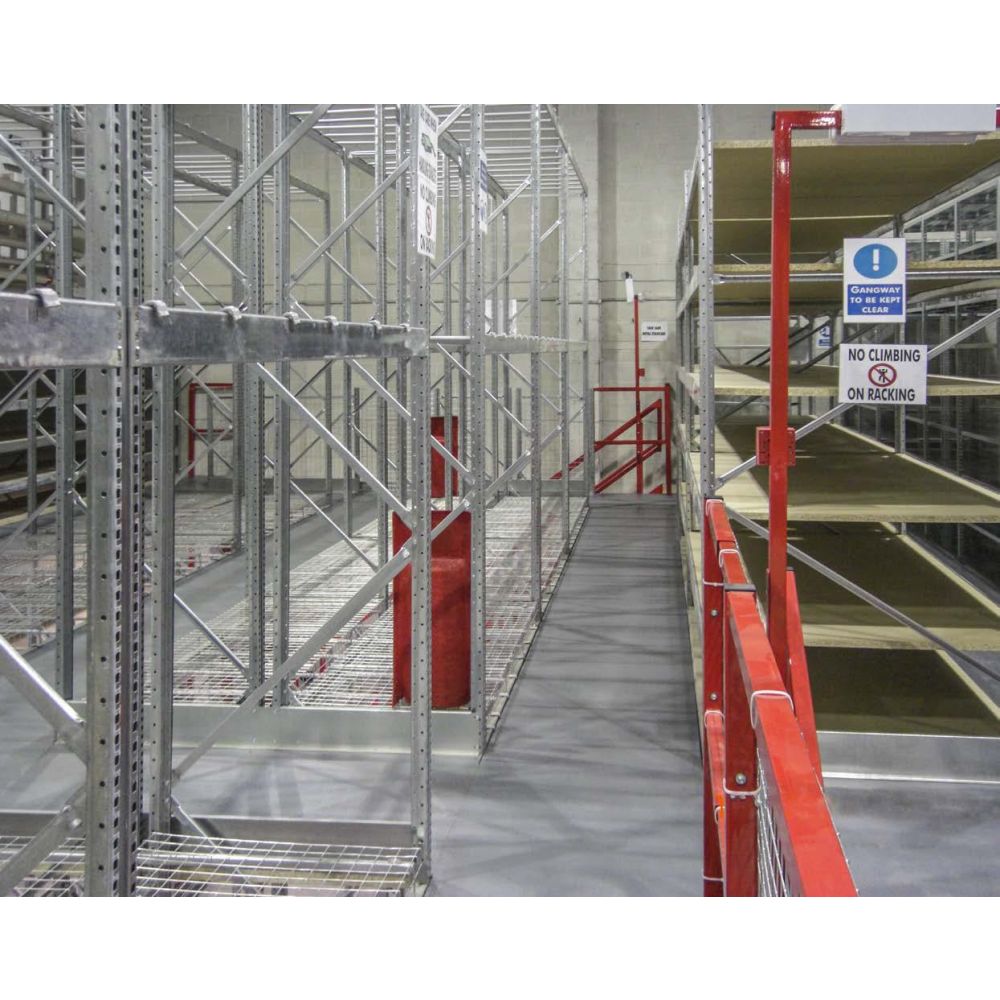

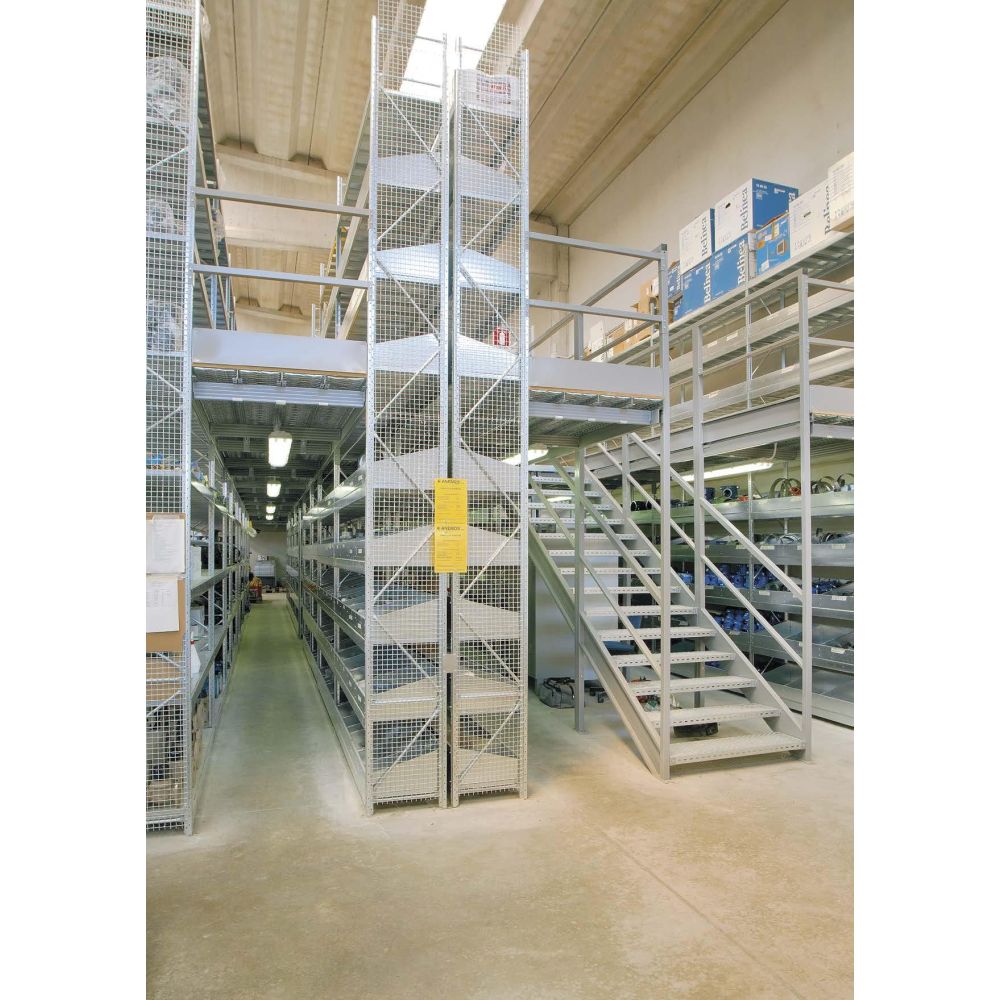

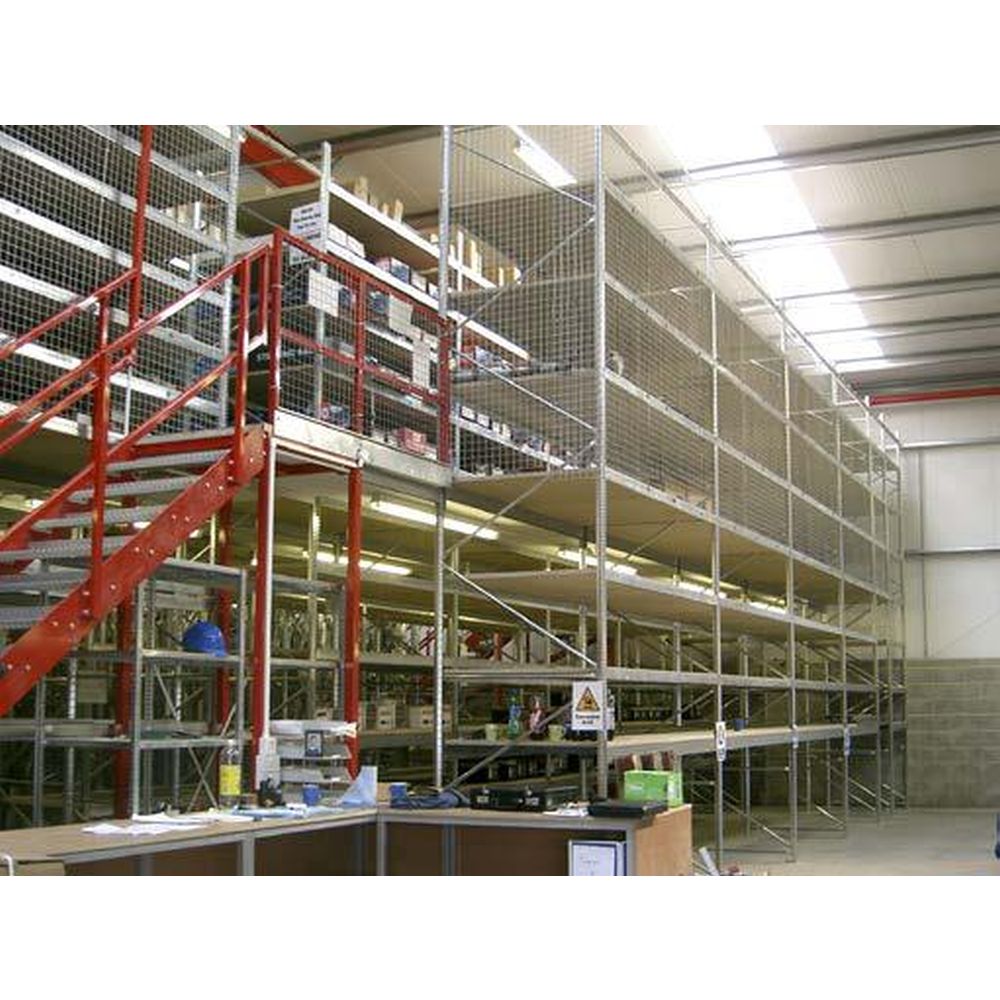

We offer guaranteed delivery within 5 days, including components to build a high bay or multi-tier installation from our large stocks.

• Heights: M50 Profile 1950, 2550, 3000. M70 Profile 2550, 4500, 5550, 6000
• Widths: C50 Beams 1000, 1200, 1600. C70 Beams 1000, 1200, 1600, 1800, 2000, 2400. C100 Beams 1600, 1800, 2000, 2400
• Depths: 400, 600, 800, 1000, 1200

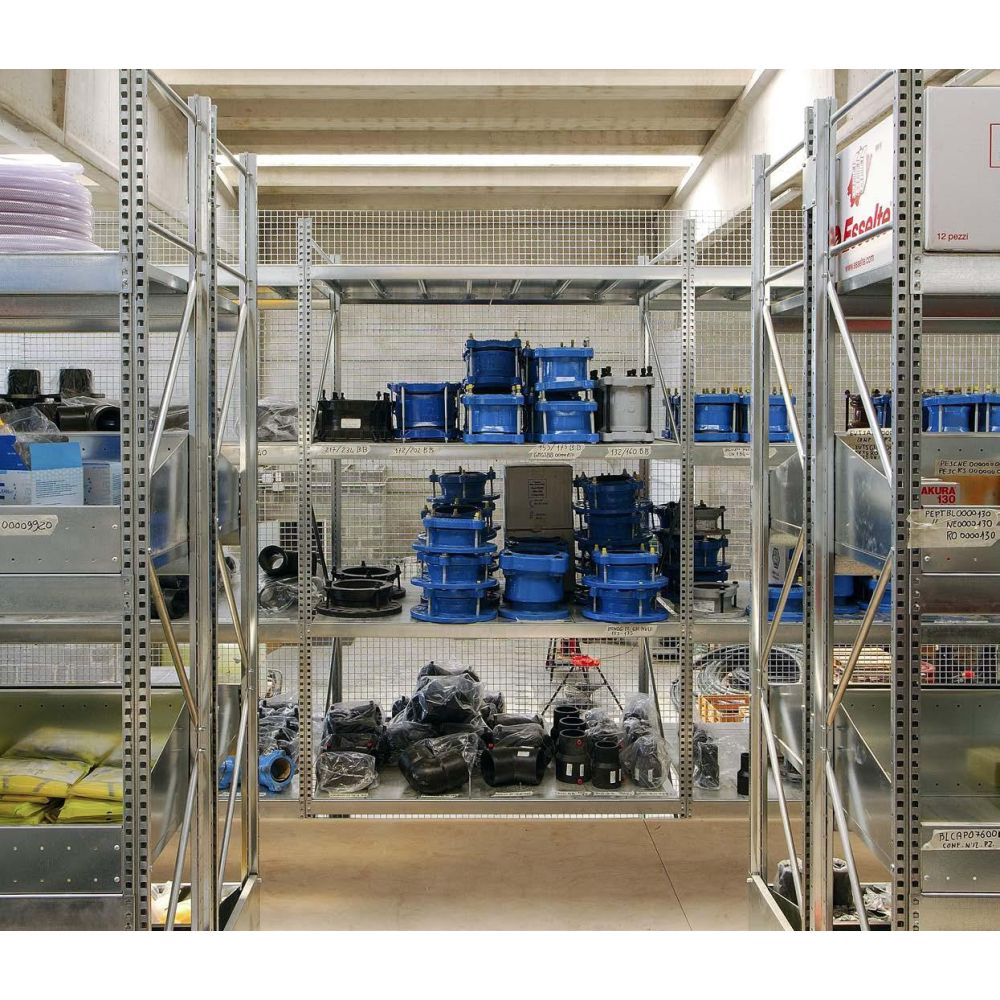

• Application Environment: Warehouse, Storeroom, Workshop

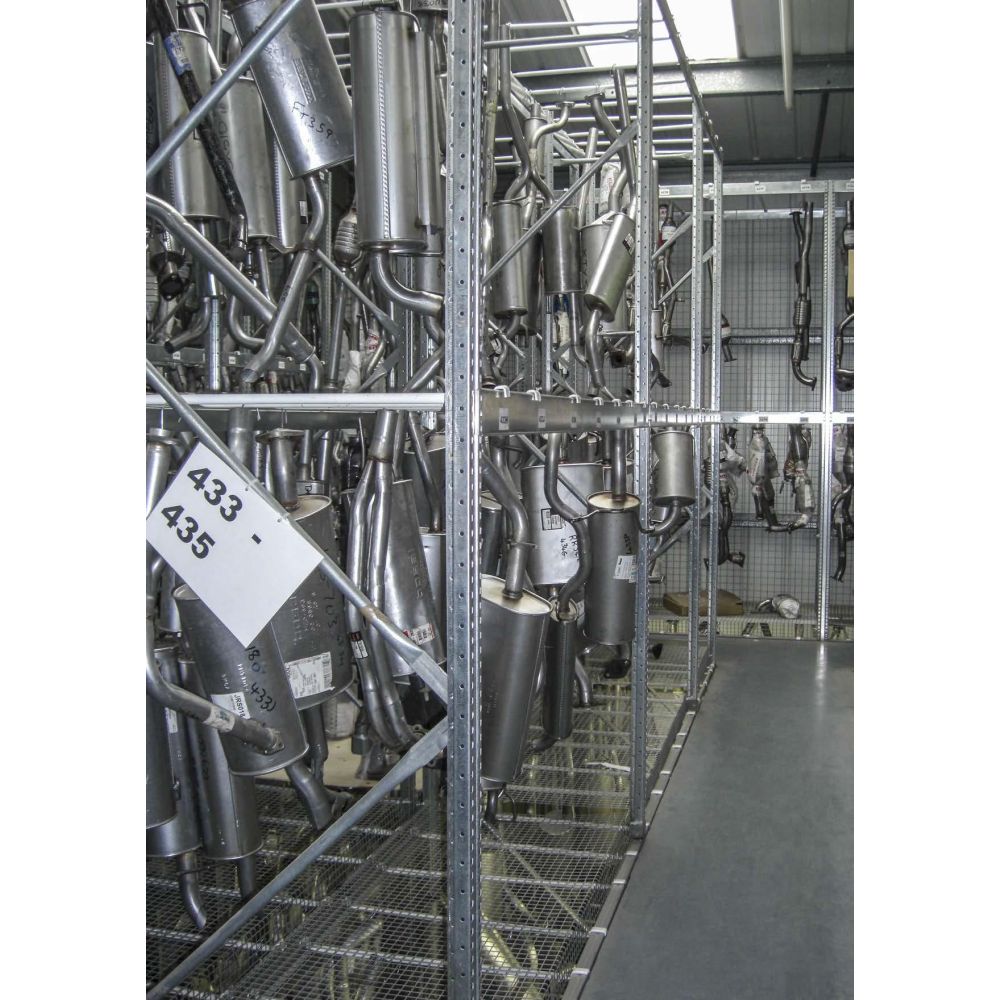

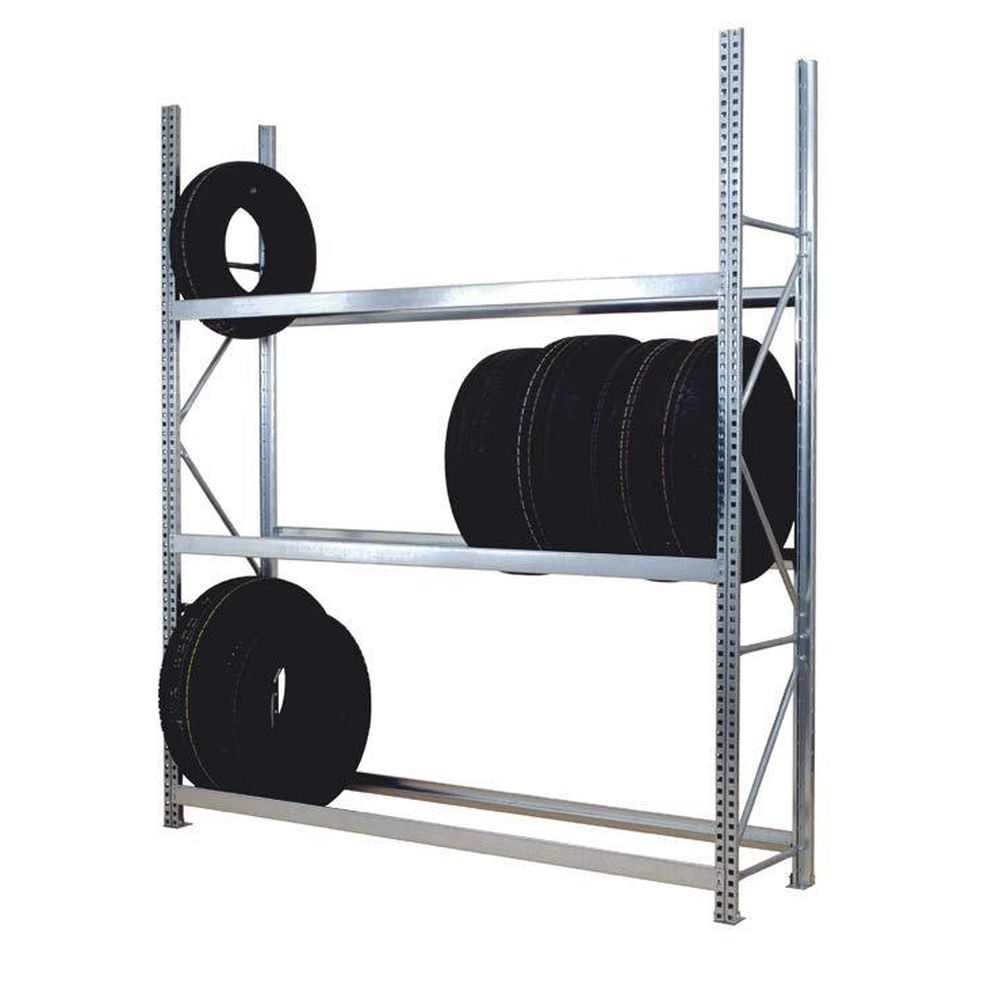

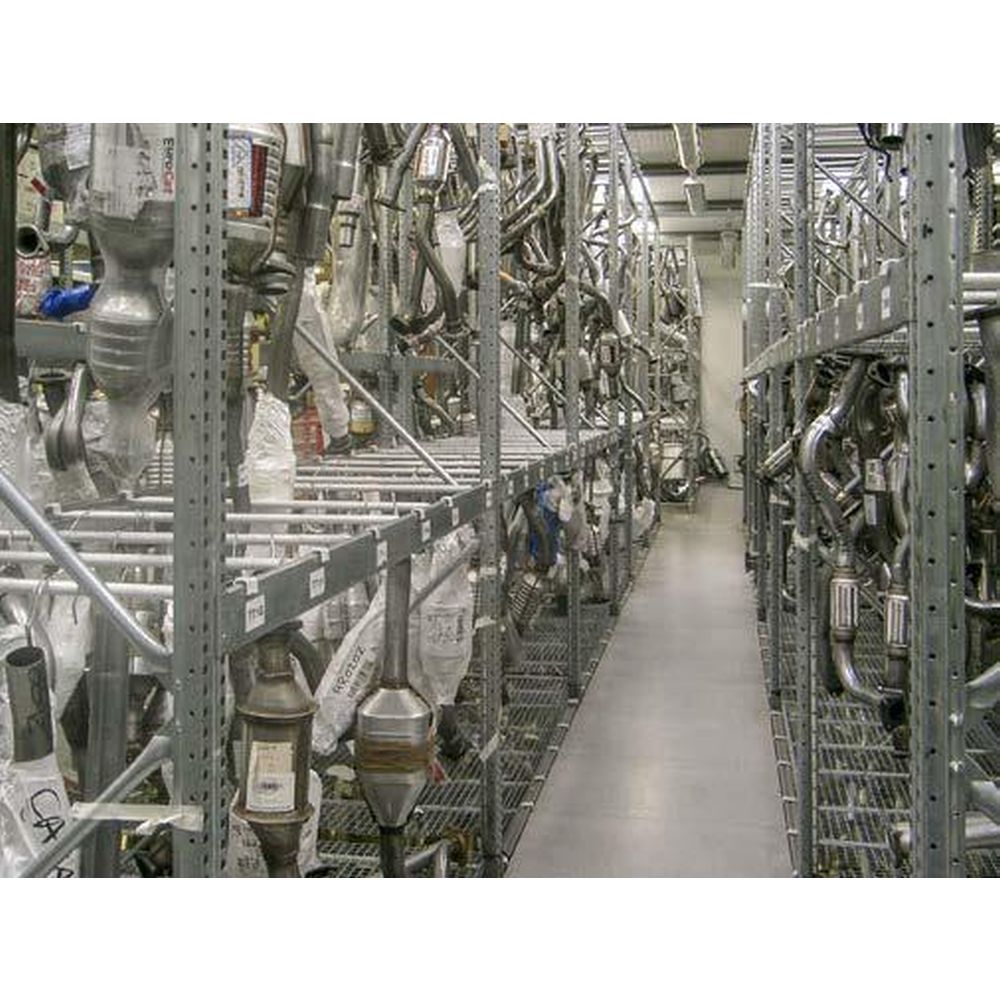

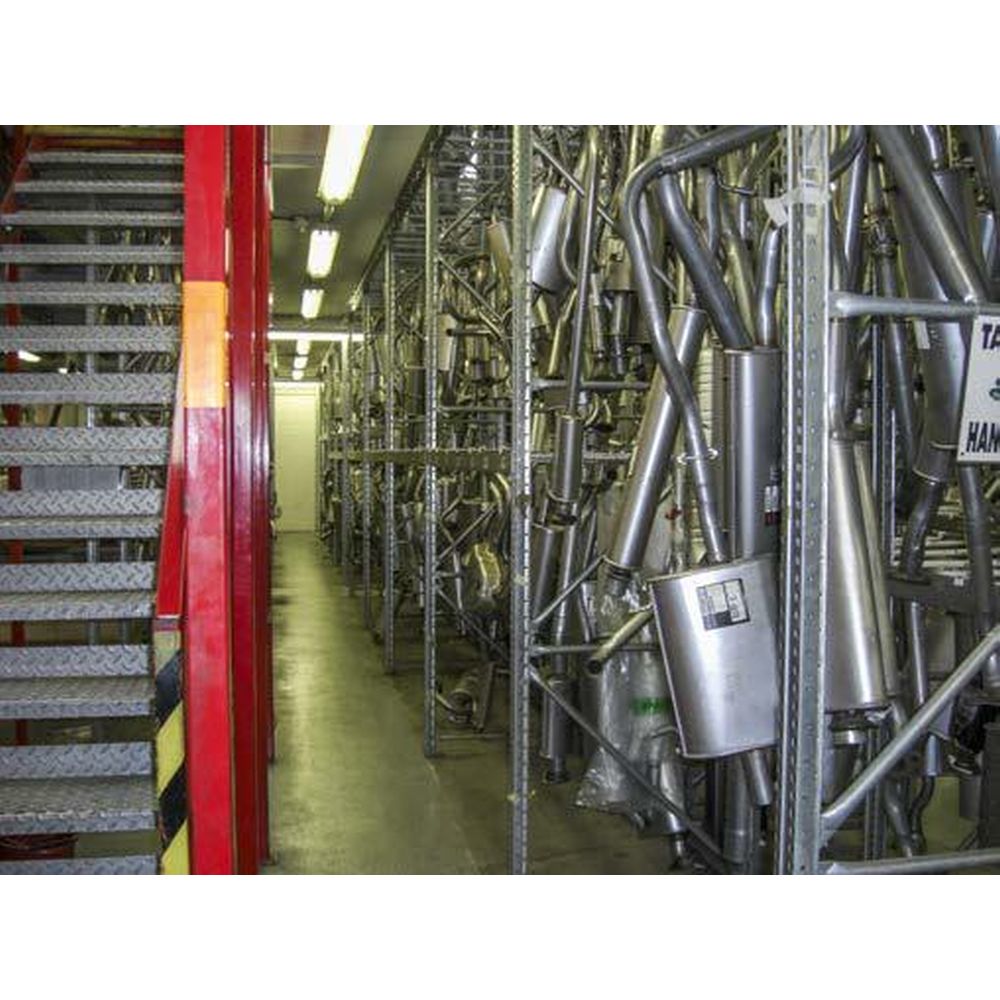

• ​Usage: Heavy Duty Storage, Automotive Storage Solutions
• Construction: Uprights: Steel Galvanised. C50 & C70 Beams: Steel Galvanised​. C100 Beams: Steel Grey RAL7037. Shelves: Steel Galvanised Panels
• Loadings: Shelf Load up to 2500kg UDL. M50 Max Bay Load 4300kg. M70 Max Bay Load 8800kg

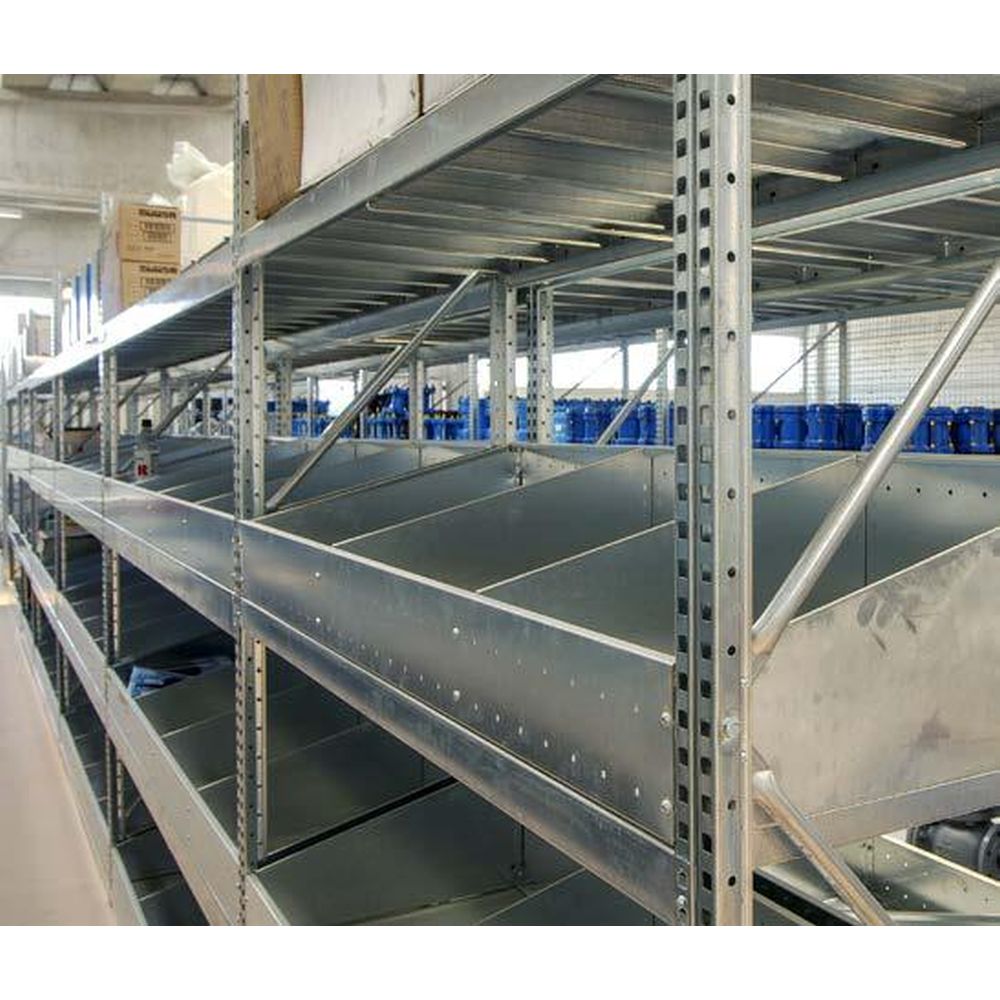

Steel Shelves

Shelves are made of 200mm wide steel panels that sit in the steps of the beams along the whole width of the bay. For example, a 1000mm wide bay will need 5 steel panels per shelf (5 x 200mm =1000mm) The steel panels come at different lengths to cater for different depths of the system – 400, 500, 600, 700, 800, 1000 and 1200mm.

Steel shelf levels – Loading Capacity (Kgs UDL)

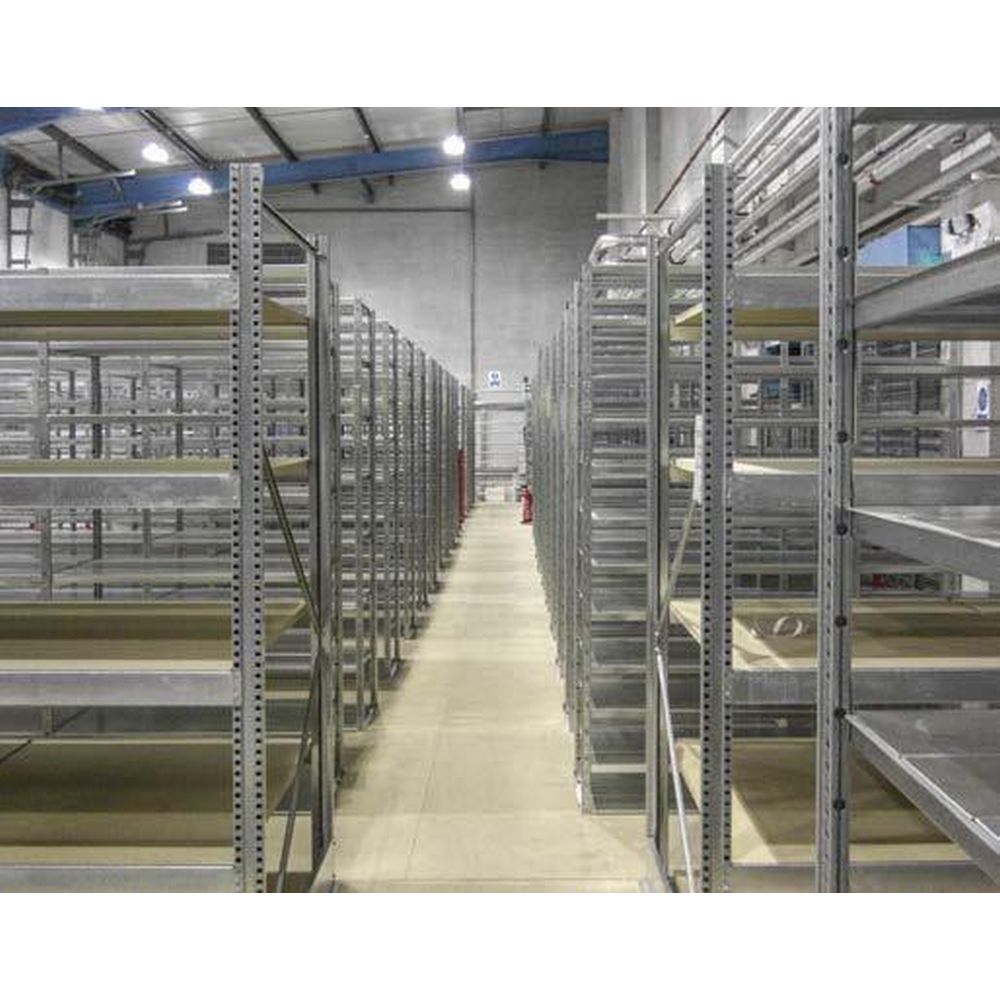

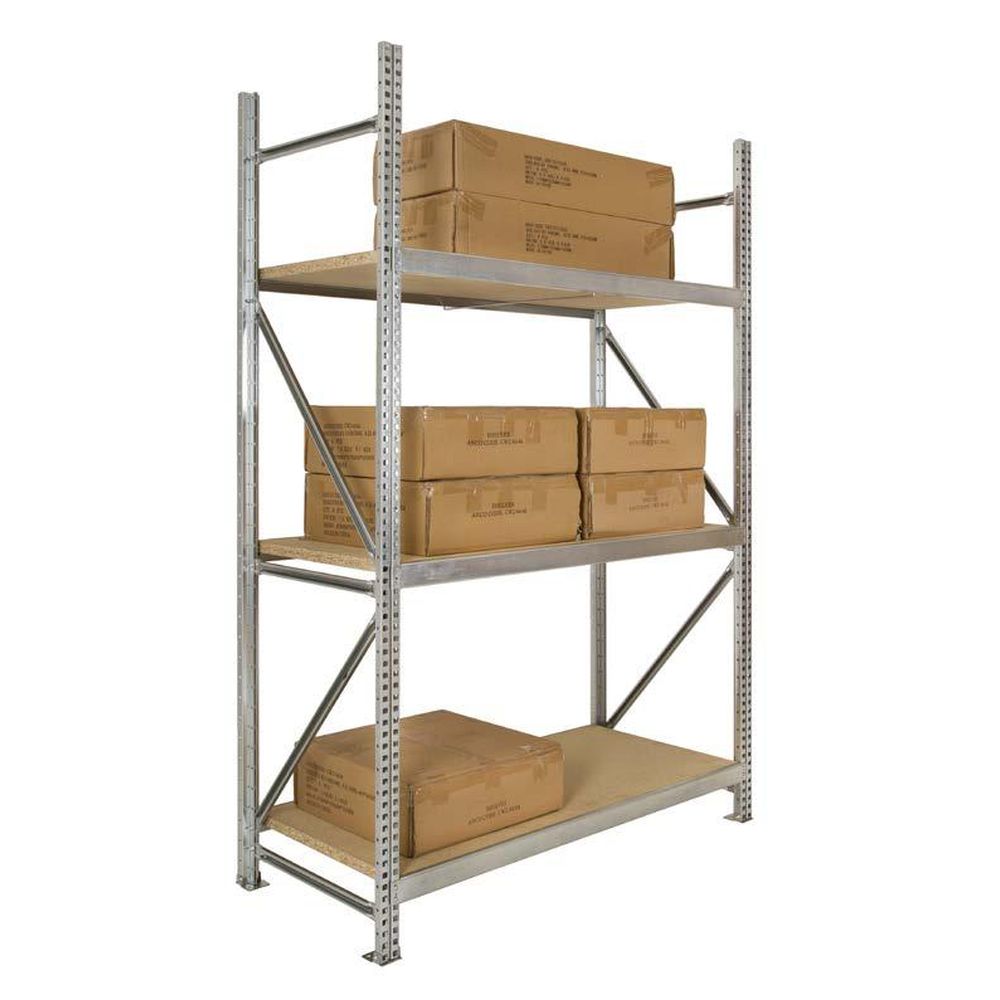

Chipboard Shelves

Chipboard shelves are also available. We use 28mm chipboard that has a very similar loading capacity as the steel shelf (even greater at certain sizes), but is at a more competitive price. Great savings for larger projects where you don’t need steel shelves. It provides a smooth surface and sits flush with the top of the beams.
