Description
Store your gas or medical oxygen cylinders safely with our Cylinder Storage Racks.
They are suitable for the storage of cylinders 100mm and 140mm in diameter/width.
- Choice of 2, 3, 4, 6, 8 and 9 cylinder storage, in various configurations
- Robust rubber ring to protect cylinders from damage
- Ribbed rubber lining in the base for extra protection
- Recommended to be fixed to a solid level surface
- Commonly used in doctors surgeries and hospital waiting rooms, for CD size portable oxygen cylinders
- For more information on cylinder sizes, click here
- Light Grey epoxy powder coat
- Made in the UK
- 1 year manufacturers warranty
- Wall mountable racks are also available

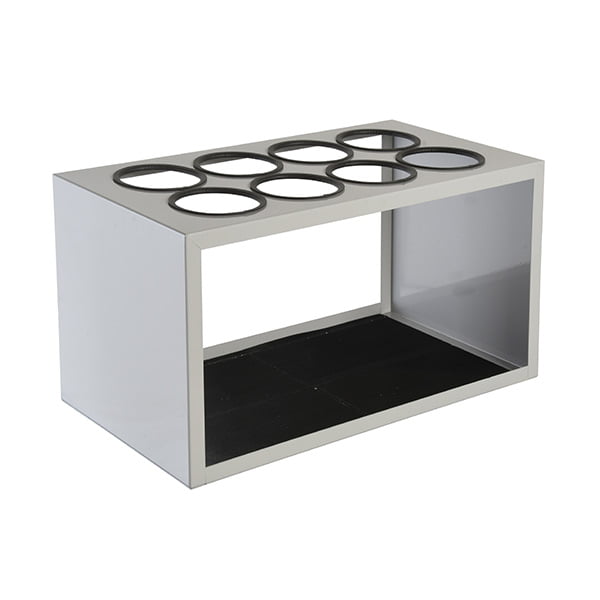

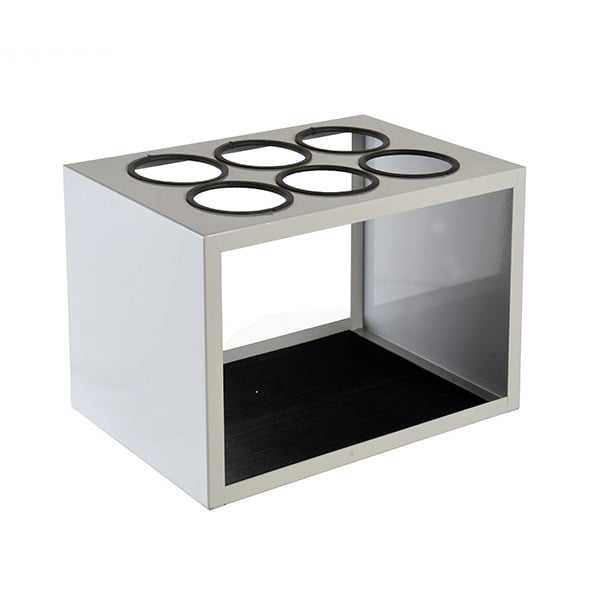

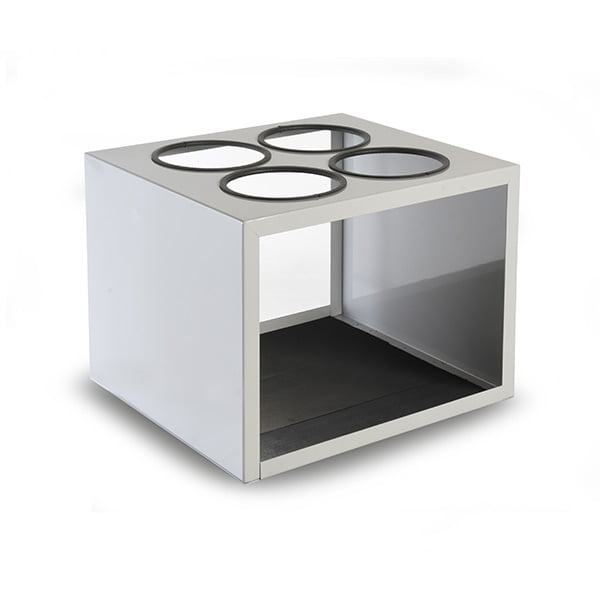

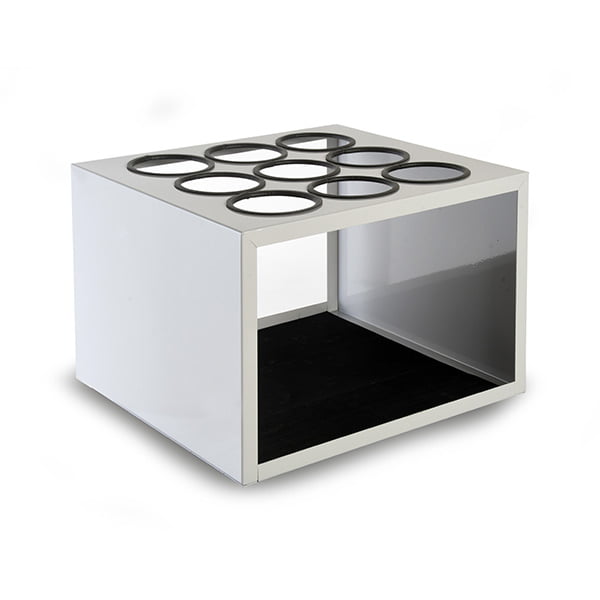

| SKU | Cylinder Diameter | No of Cylinders | Configuration | Height | Width | Depth |
| SC223 | 100mm | 2 | 1 x 2 | 325mm | 365mm | 190mm |
| SC224 | 100mm | 3 | 1 x 3 | 325mm | 500mm | 190mm |
| SC225 | 100mm | 6 | 1 x 6 | 325mm | 905mm | 190mm |
| SC226 | 100mm | 4 | 2 x 2 | 325mm | 365mm | 330mm |
| SC227 | 100mm | 6 | 2 x 3 | 325mm | 500mm | 330mm |
| SC228 | 100mm | 8 | 2 x 4 | 325mm | 635mm | 330mm |
| SC229 | 100mm | 9 | 3 x 3 | 325mm | 500mm | 460mm |
| SKU | Cylinder Diameter | No of Cylinders | Configuration | Height | Width | Depth |
| SC230 | 140mm | 2 | 1 x 2 | 325mm | 445mm | 230mm |
| SC231 | 140mm | 3 | 1 x 3 | 325mm | 620mm | 230mm |
| SC232 | 140mm | 6 | 1 x 6 | 325mm | 1145mm | 230mm |
| SC233 | 140mm | 4 | 2 x 2 | 325mm | 445mm | 405mm |
| SC234 | 140mm | 6 | 2 x 3 | 325mm | 620mm | 405mm |
| SC235 | 140mm | 8 | 2 x 4 | 325mm | 795mm | 405mm |
| SC236 | 140mm | 9 | 3 x 3 | 325mm | 620mm | 580mm |
