Description

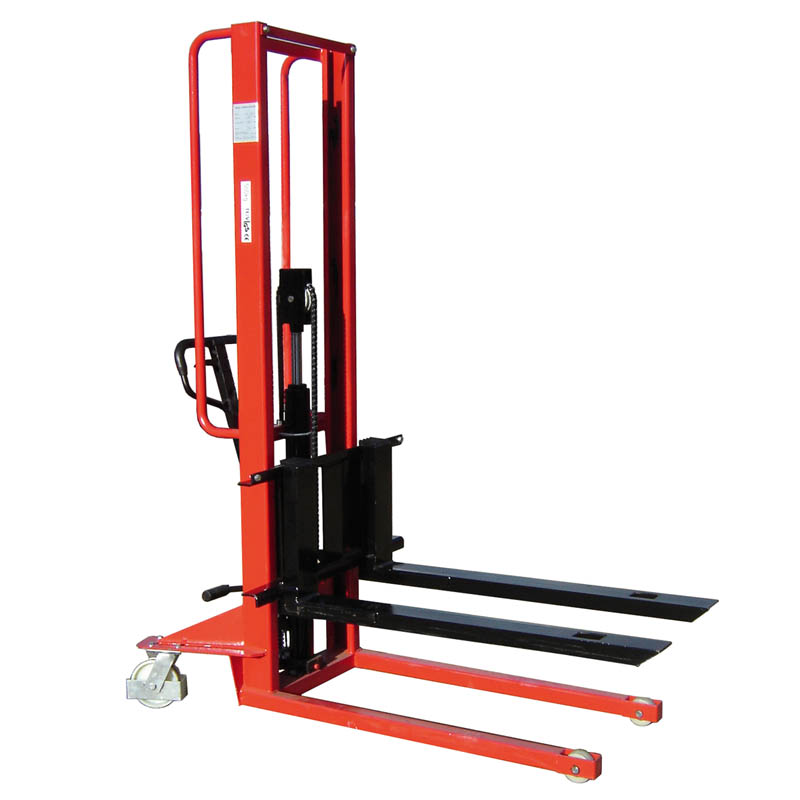

Manual Pallet Stacker with Adjustable Forks
The KI range of manual pallet stackers has an ergonomic pump handle and foot pump, giving you a choice of operation. The stackers are sturdy and compact constructed from robust steel profiles.
The KI 500A pallet lifter is ideal for companies who wish to lift and handle euro pallets in a warehouse environment.
This pallet stacker has width-adjustable forks fitted as standard so it can also handle other (smaller or larger) open bottom pallets with ease. The lowering speed is fully adjustable.
Technical Specifications:
| Capacity: | 500kg |
| Load Centre: | 600 mm |
| Max. Lift Height: | 1600 mm |
| Fork Length: | 1100 mm |
| Width over Forks: | Adjustable 220 – 760 mm |
| Overall Length: | 1640 mm |
| Overall width: | 810 mm |
| Overall Closed Height: | 2000 mm |
| Lowered Fork Height: | 90 mm |
| Wheels: | Nylon |
| Wheels Diameter: | ø 150 / 80 mm |
| Approx. Weight: | 231kg |
