Description

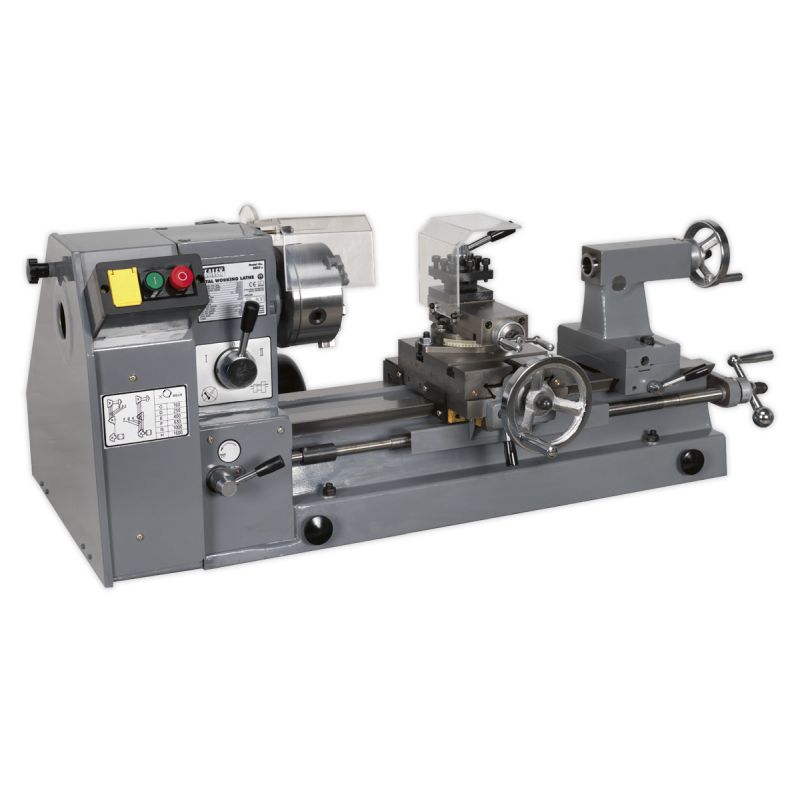

- Quality workshop lathe suitable for a wide range of turning and drilling applications.
- Features power feed for even surface finish and thread cutting.

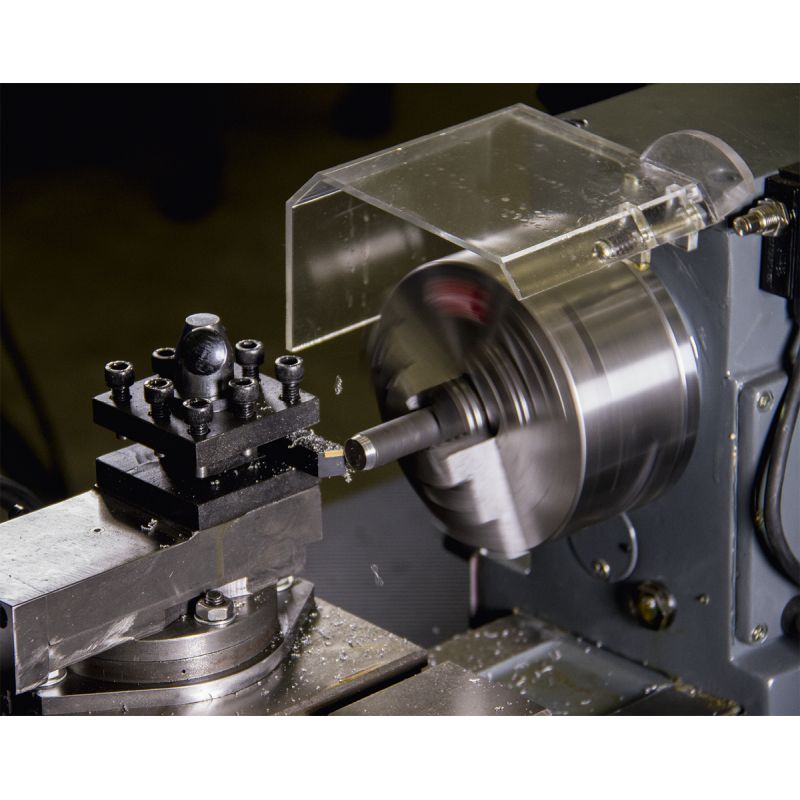

- 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.
- Powered by 550W motor through 6-speed gearbox.
- Incorporates quiet running PTO gearbox with oil bath lubrication for power feed.
- Supplied with 3-jaw chuck and dead centre.
- Fitted with no-load voltage release switch.
- Fully guarded to CE safety of machinery directives and covered by EMC directive and Low Voltage directive.
- Workshop stand available as an optional extra, order Model No. SM27ST.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
- Model No. SM27
Specification
Centre Height Over Table: 150mm
Centre Height Over Saddle: 80mm
Distance Between Centres: 500mm
Spindle Bore: Ø26mm
Speed Range: 160-1600rpm
Head Stock Taper: MT4
Tail Stock Taper: MT3
Tail Stock Travel: 40mm
Screw Cutting
Metric Pitch Quantity: 14
Metric Pitch Range: 0.5-3mm
Inch Pitch Quantity: 20
Inch Pitch Range: 11-40tpi
Motor Power: 550W
Supply: 230V
