Description
These Heavy Duty Tray Trolleys in an attractive blue epoxy finish, feature three tray tiers and five steps, with a top tread height of 1145mm.
Tray options include fixed sheet steel trays with a 20mm lip all round or fixed plywood shelves with a 10mm lip all round, both lips are also finished in a blue epoxy coating. Options include removable steel trays, reversible to give either a flush finish or 25mm lip all round, or removable wire baskets with 160mm high sides, both options include a white powder coated finish.
Fixed steps and a handrail fitted to each side and across the top guarantees easy and safe usage, with two retractable castors in front and 2 fixed castors to the rear, each with 125 mm rubber tyred wheels and roller bearings. The front castors retract with a hand-operated lever to immobilise the trolley and ensure maximum stability. Maximum load 125kg.
- Steps: Fixed steps, handrail fitted to each side and across top.
- Construction: Fully welded from RSA angle and ERW tube.
- Finish: Blue epoxy.
- Top tread height: 1145 mm
Tray Options
- Fixed sheet steel trays – with 20mm lip all round, blue epoxy finish
- Fixed plywood shelves – recessed with 10mm lip all round
- Removable steel trays – reversible to give either a flush finish or 25mm lip all round, white powder coated finish

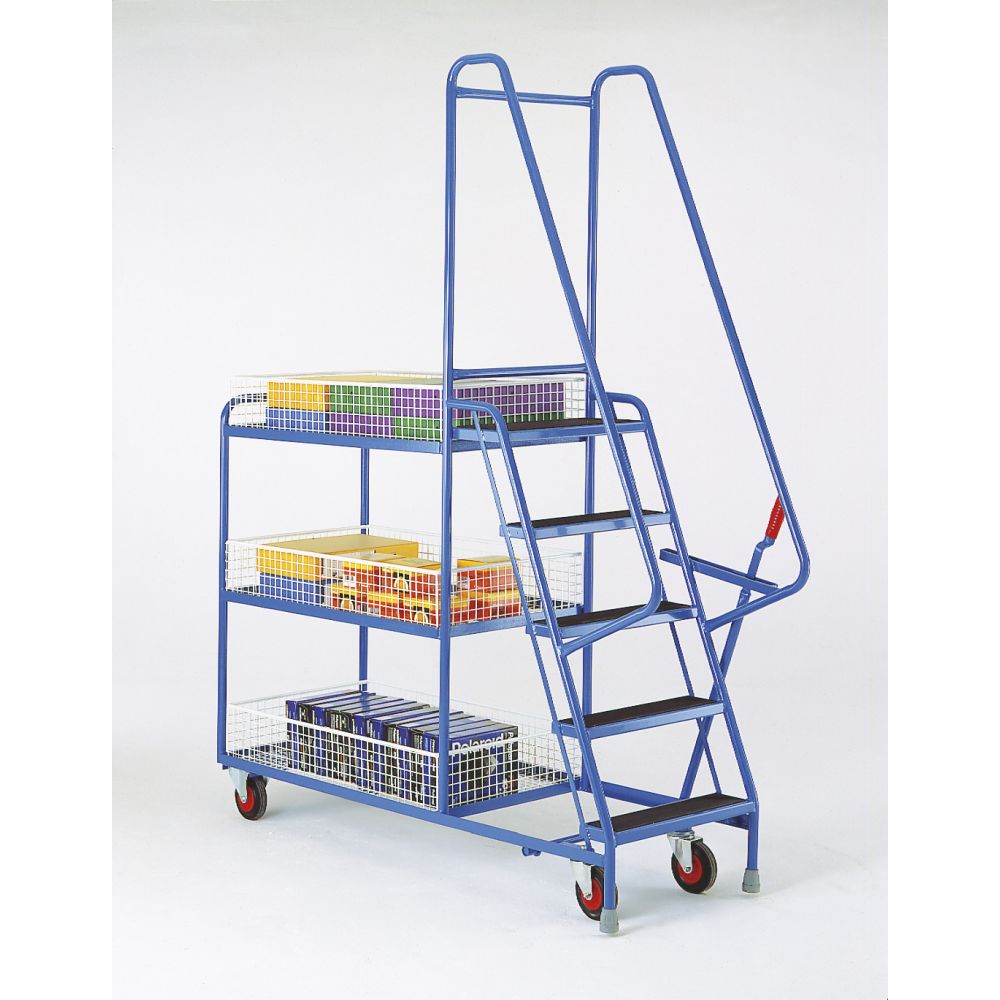

- Removable wire baskets – 160mm high sides, white powder coated finish
| Tray type | Tray heights (top x middle x bottom) | Usable W x L mm | Overall H x W x L mm | Weight Kg | SKU |
| Fixed blue trays | 1115 x 650 x 185 | 525 x 935 | 2075 x 620 x 1730 | 67 | S190 |
| Fixed ply trays | 1115 x 650 x 185 | 525 x 935 | 2075 x 620 x 1730 | 61 | S193 |
| Reversible white trays | 1115 x 650 x 185 | 510 x 920 | 2075 x 620 x 1730 | 71 | S196 |
| Removable baskets | 1245* x 785* x 320 | 500 x 905 | 2075 x 620 x 1730 | 61 | S199 |
* Dimension to top of basket. Maximum recommended step load is 125kg (operator and goods carried) Trolley capacities as stated.
