Description

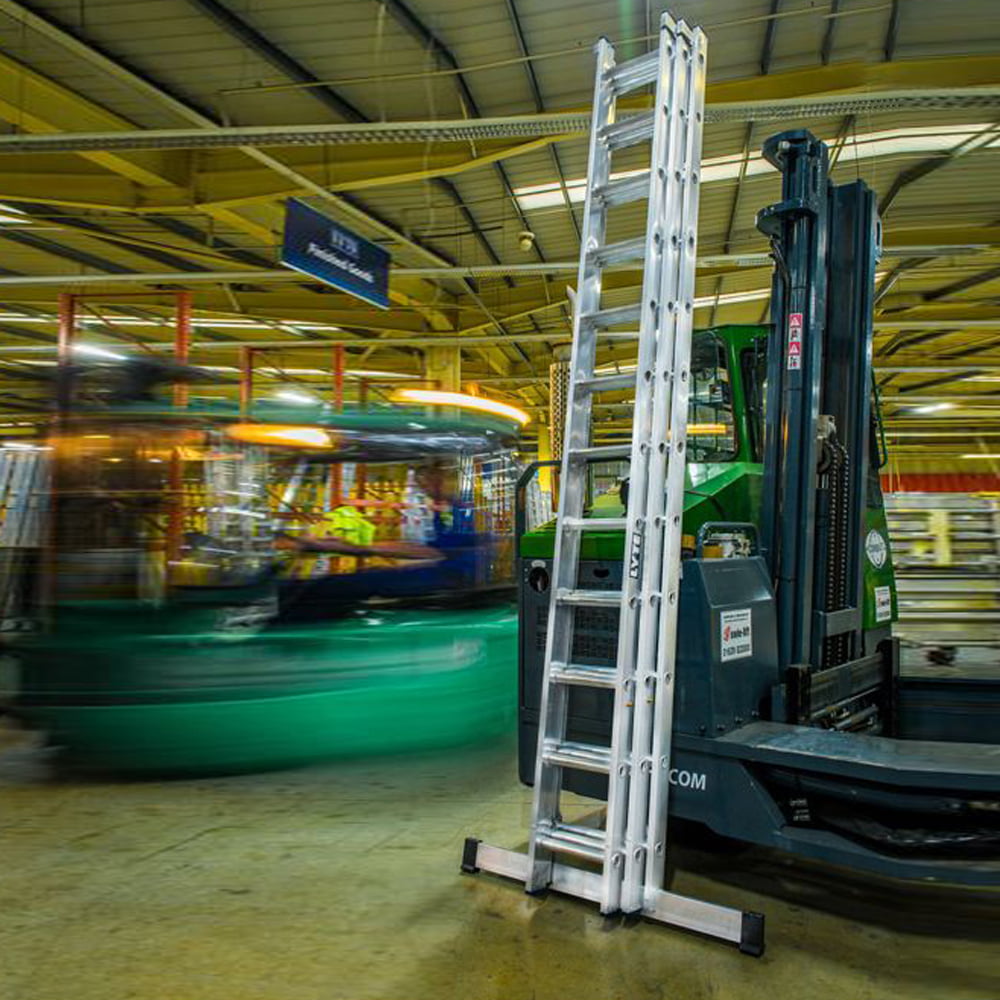

These Industrial Extension Ladders are made in the UK and built from the best quality aluminium which is ideal for frequent use. All of these extension ladders have been re-designed, tested and manufactured to the new EN131-2 standard and are available in 2 or 3 sections. Now comes with a high quality stabiliser bar so you can work with maximum safety and stability.
- Available in double or triple sections
- Various heights available, see below
- Stability bar included
- Complies to EN131-2 standard
- Made in the UK
| Code | No. of Sections | No. of Rungs Per Section | Weight kg | Closed Length mm | Extended Length mm | Max Standing Height mm* | Approx. Working Height mm* | Largest Ladder Section Width mm | Smallest Ladder Section Width mm | Stabiliser Width mm | Individual Section Depth mm | Full Ladder Depth mm | Space Between Rungs mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGB225 | Double | 8 | 10.00 | 2450 | 3850 | 3100 | 4850 | 405 | 337 | 1000 | 60 | 105 | 280 |
| NGB230 | Double | 10 | 12.50 | 2930 | 4900 | 4150 | 5900 | 405 | 337 | 1000 | 60 | 105 | 280 |
| NGB235 | Double | 12 | 17.00 | 3455 | 5970 | 5220 | 6970 | 405 | 337 | 1000 | 74 | 155 | 280 |
| NGB240 | Double | 14 | 18.50 | 4040 | 7140 | 6390 | 8140 | 405 | 337 | 1200 | 74 | 155 | 280 |
| NGB245 | Double | 15 | 22.00 | 4450 | 7810 | 7060 | 8810 | 405 | 337 | 1200 | 87 | 170 | 280 |
| NGB250 | Double | 17 | 24.50 | 4950 | 8880 | 8130 | 9880 | 405 | 337 | 1200 | 87 | 170 | 280 |
| NGB325 | Triple | 8 | 18.50 | 2450 | 5230 | 4480 | 6230 | 475 | 337 | 1000 | 74 | 200 | 280 |
| NGB330 | Triple | 10 | 23.00 | 2930 | 6920 | 6170 | 7920 | 475 | 337 | 1200 | 74 | 200 | 280 |
| NGB335 | Triple | 12 | 27.00 | 3455 | 8480 | 7730 | 9480 | 475 | 337 | 1200 | 87 | 230 | 280 |
| NGB340 | Triple | 14 | 31.00 | 4040 | 9660 | 8910 | 10666 | 475 | 337 | 1200 | 87 | 230 | 280 |
*Where applicable, the Approx. Working Height is calculated by adding 1750m (5’8”) to the Max Standing Height. This assumes the ladder is positioned at a 75° angle.
