Description

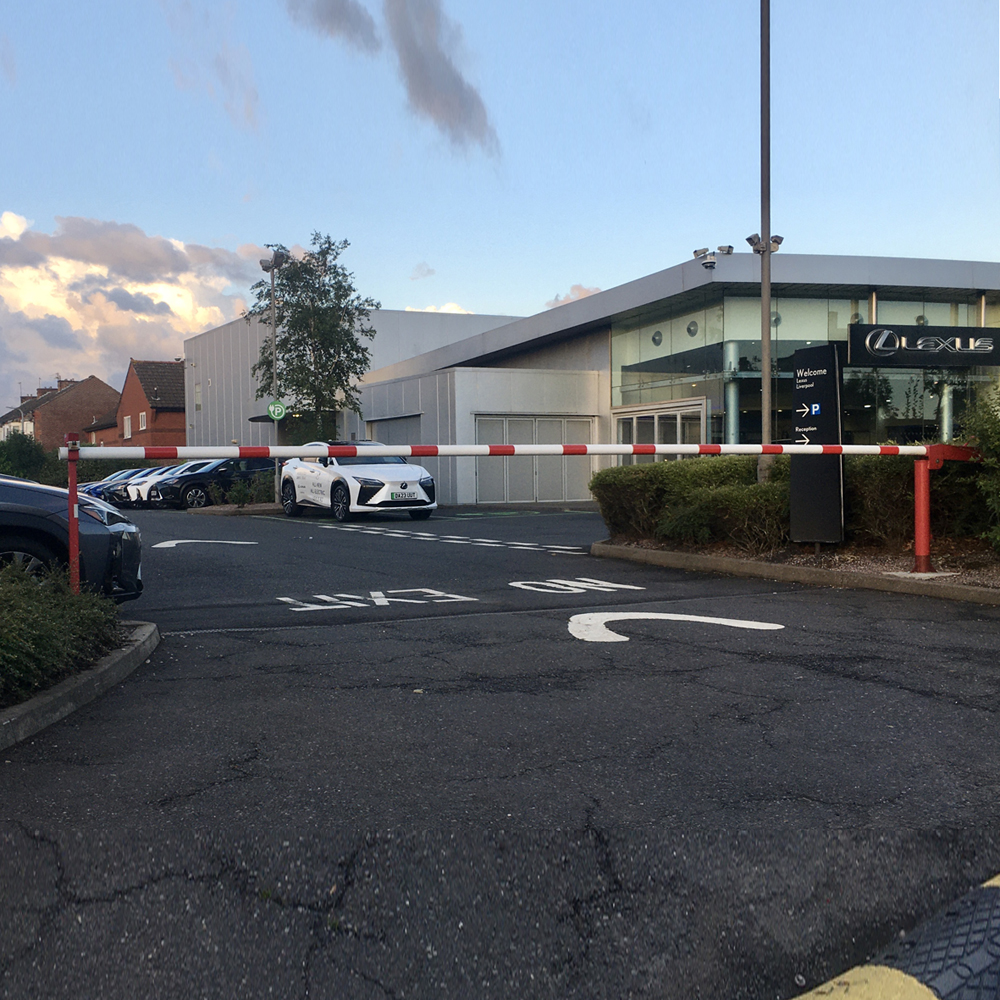

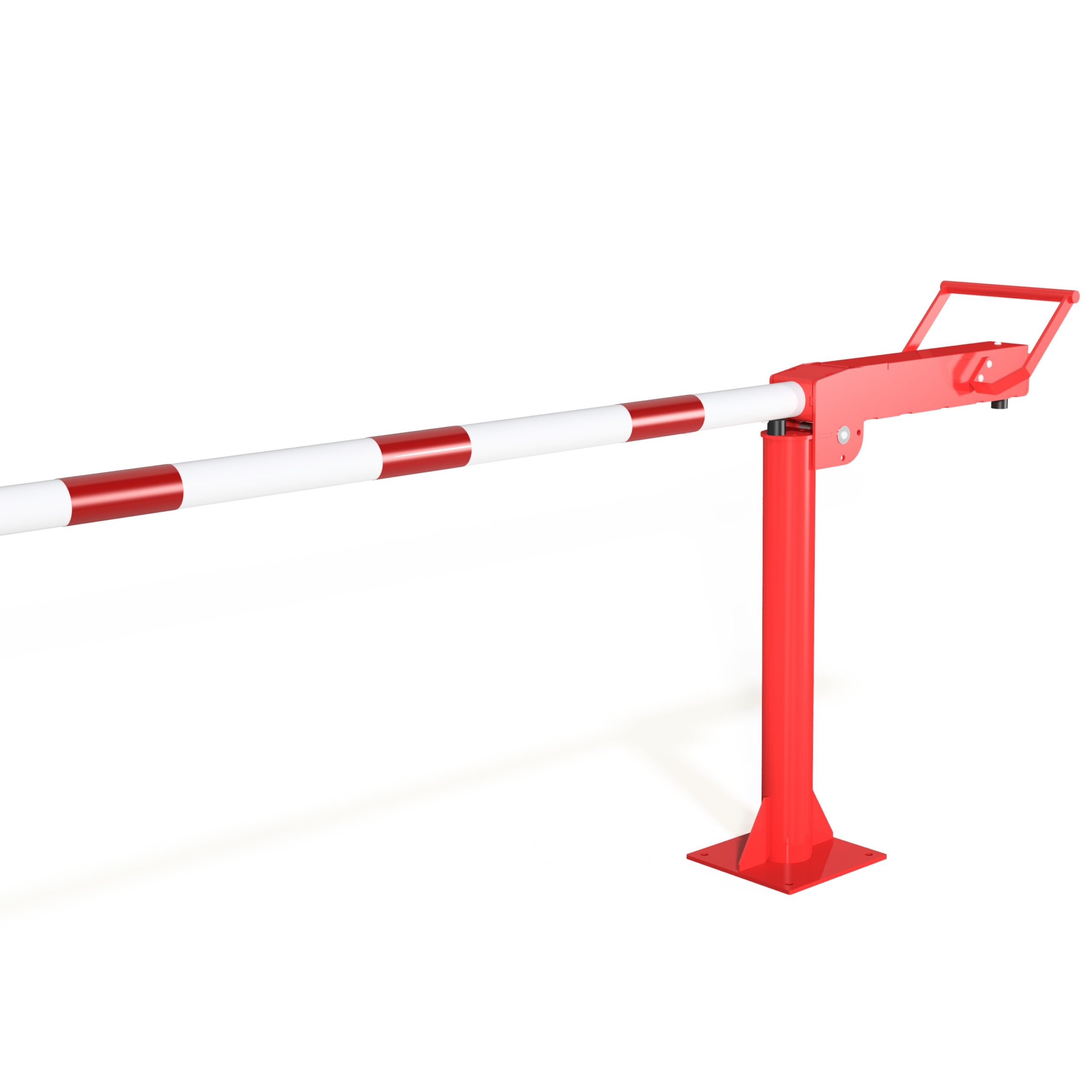

The Manual Arm barrier has a slimline design and is suitable for protecting car parks and entrances to commercial property sites.
This barrier is ideal for areas where access only needs to be restricted during certain times of the day. The barrier can be locked in the raised and lowered positions offering complete peace of mind when the parking area is not in use.
Manufactured from galvanised mild steel with an aluminium arm, the body of the barrier is coated blue as standard. Other colours are available on request, RAL codes must be stated at time of order.
Features
- Galvanised mild steel construction, painted red as standard. Other colours available on request

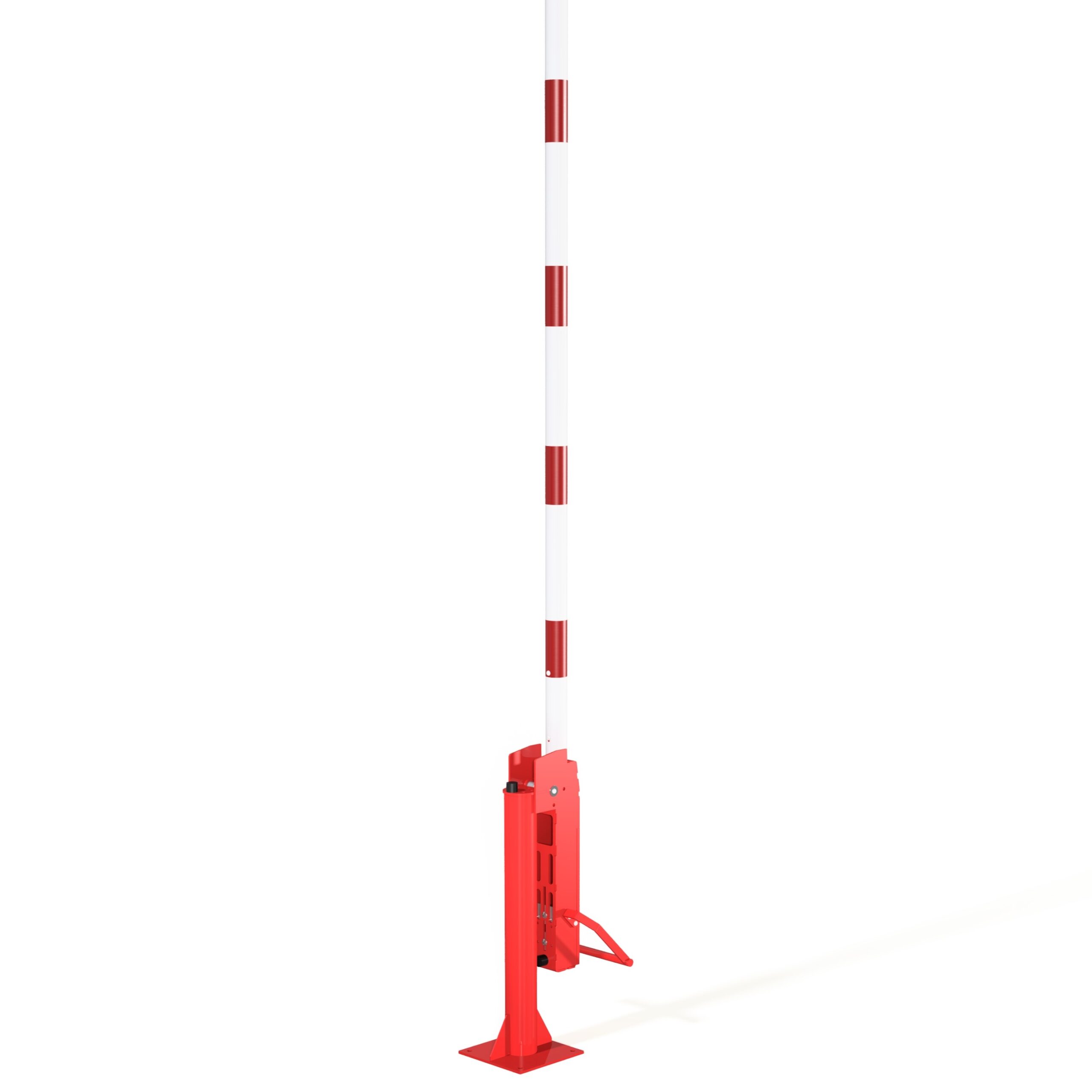

- Lockable in the raised and lowered position
- Single boom up to 7m
- Double barriers available for larger road widths
- Available in red, yellow, green, blue and grey
- Datasheet
Optional Extras
- Long nose padlock to keep barrier in upright position
- Lockable at catch post catch end (SWG Pin)
- Folding skirt option available up to 6m (skirt is aluminium)
- Double span barriers
- Pogo sticks

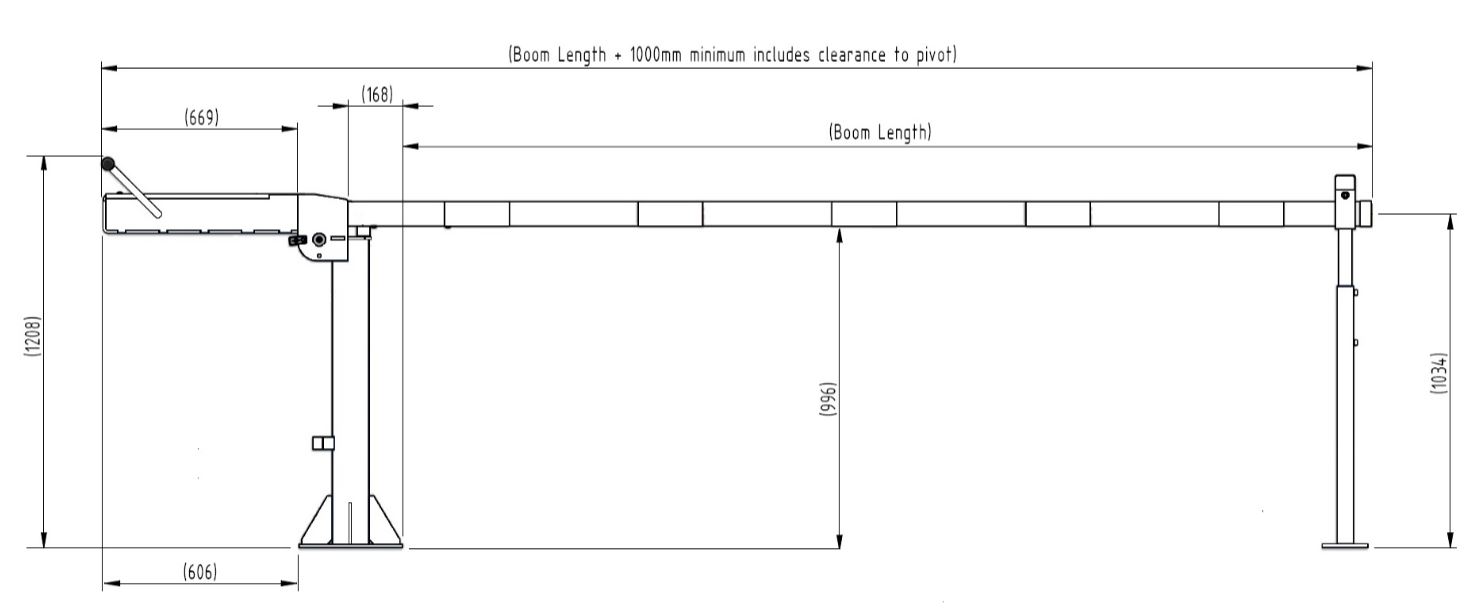

Specifications
- Approximately 1208mm overall height
- Boom lengths 3000mm- 7000mm
- Ragged barrier 600mm below ground
- Ragged catch post 300mm below ground for catch post
Additional Information
- Available ragged for casting in or flanged for bolting down
- Full site survey and installation service available
- Installation Guide
