Description

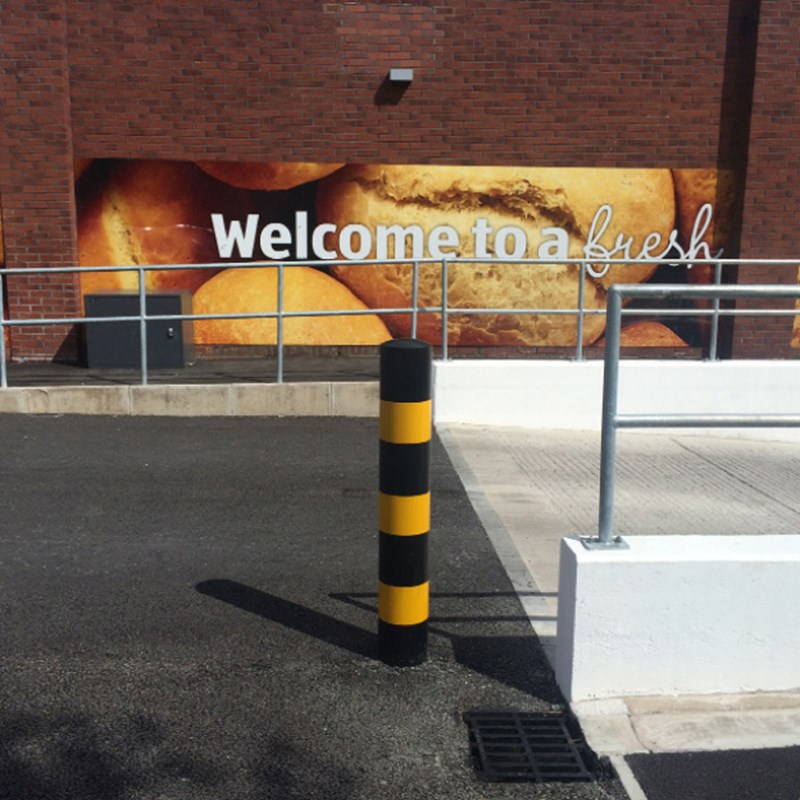

The High Visibility Steel Bollards are great for providing highly visible impact protection to buildings like warehouses, factories and other premises.
They can be used inside or outside as they are finished in a galvanised mild steel with black coating and yellow bands

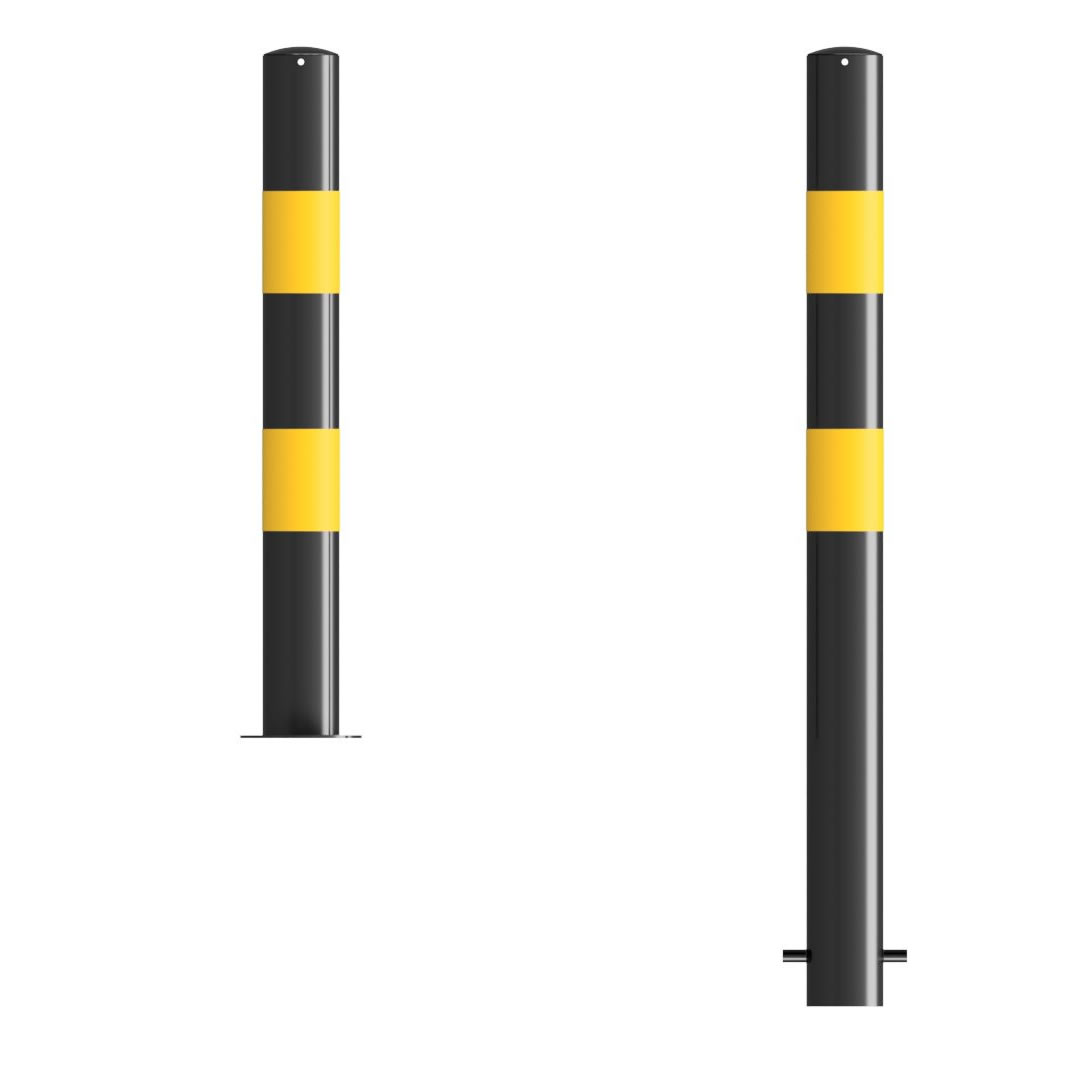

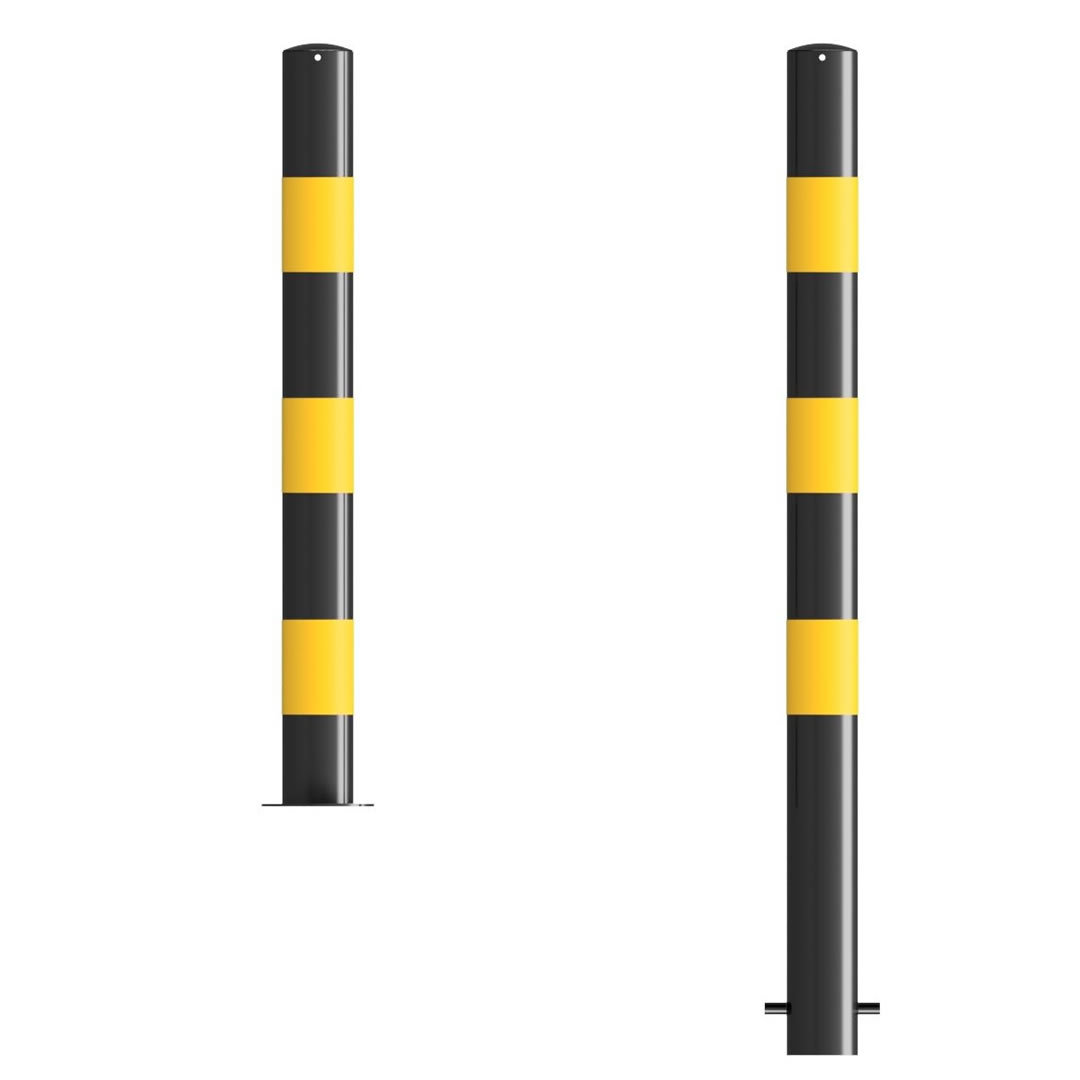

- Choose from ragged (concrete-in) or flanged (bolt down) models
- Bolt down (flanged) model heights: 900mm/1000mm/1200mm/1500mm high for bolting down
- Concrete-in model heights: 900mm/1000mm/1200mm/1500mm above ground and 300-400mm below ground for casting into concrete
- 60-114mm diameter (3mm wall)
- 139mm-193mm (5mm wall)
- Slightly domed welded steel cap
- Great for use at shutter doors and loading bays
- All products in the range are galvanised mild steel, ensuring their longevity and are designed to take the knocks and bumps that occur in all warehouse environments
- The bollard is coated black (RAL 9005) with 150mm reflective yellow bands (tape) for visibility *
- Fixings not included but are sold separately
- Datasheet
* Should any cosmetic damage occur, replacement reflective tape can be purchased here.
Product Details
- 3mm wall thickness – 60mm – 114mm and 152mm
- Also available bolt down or removable
- 5mm wall thickness – 139mm, 168mm – 219mm
- Concrete in 400mm (below ground)
138121124BY – 60mm Black & Yellow – 6kg
138121201BY – 76mm Black & Yellow – 7kg
138121287 – 90mm Black & Yellow – 9kg
138121357 – 101mm Black & Yellow – 10kg
138121427 – 114mm Black & Yellow – 12kg
138121631 – 139mm Black & Yellow – 23kg
138121651 – 152mm Black & Yellow – 15kg
138121721 – 168mm Black & Yellow – 28kg
138121791 – 193mm Black & Yellow – 33kg
138121904BY – 219mm Black & Yellow – 37kg
Installation & Use
- Bolt down to a suitable concrete surface.
- Telescopic, removable and concrete in are supplied with welded fixing spikes to ensure firm ground anchorage into concrete.
- Telescopic, removable and concrete in require a suitable excavated hole for installing into concrete.
- Products are guaranteed for 12 months (if installed and used correctly).
