Description
The Hymer 4047 series is the ultimate combination ladder. Can be used as a freestanding ladder, leaning ladder, extension ladder and stairway ladder (up to 3×10).
The simple locking mechanism allows easy assembly/disassembly.
- Versatile for use as a leaning, extension, step ladder, free standing and stairwell ladder
- Rolled profile rungs
- Solid steel fittings

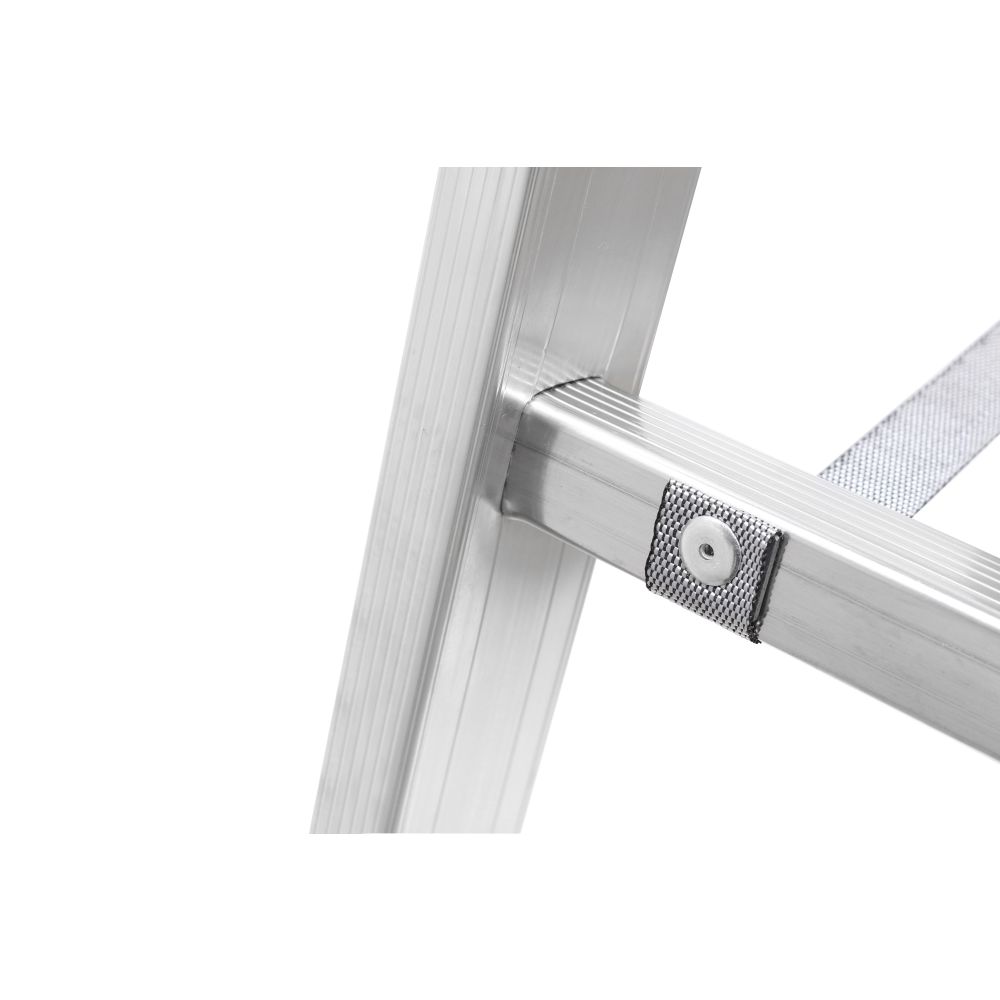

- High strength anti-splay straps

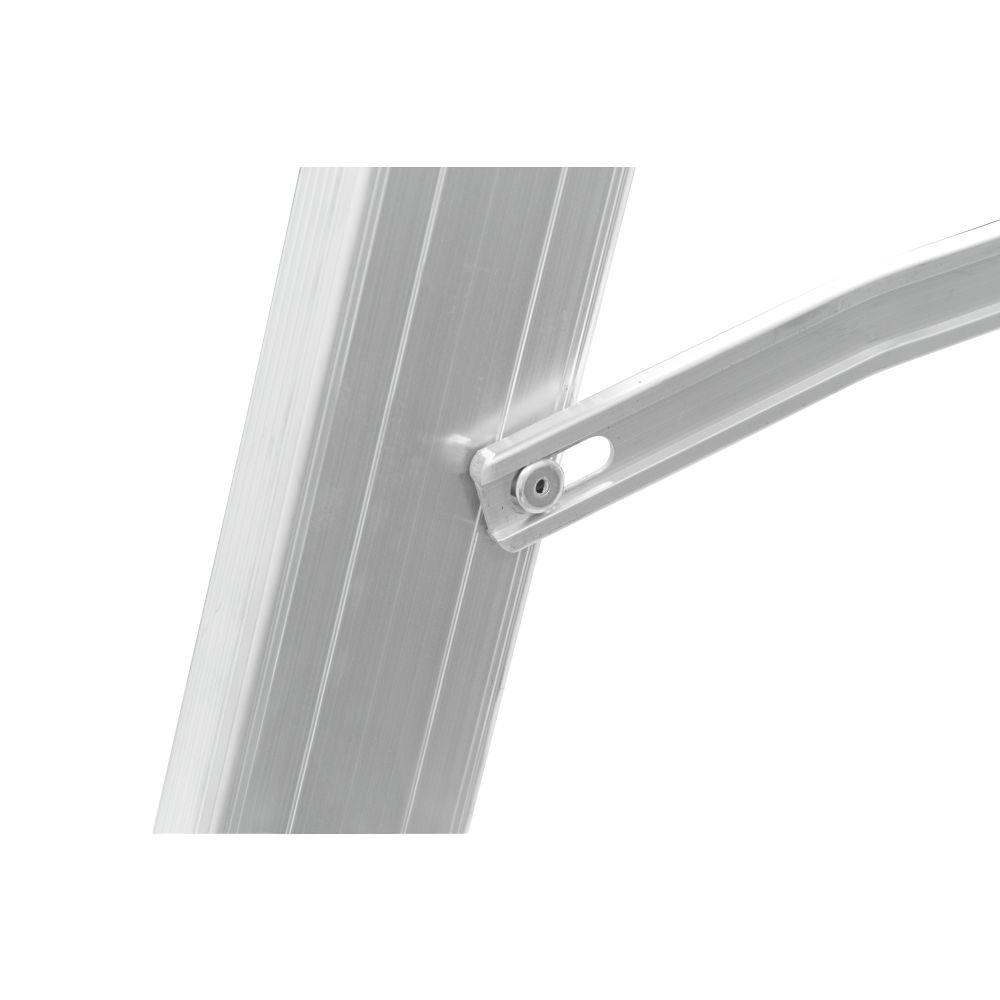

- Simple to use aluminium locking bar

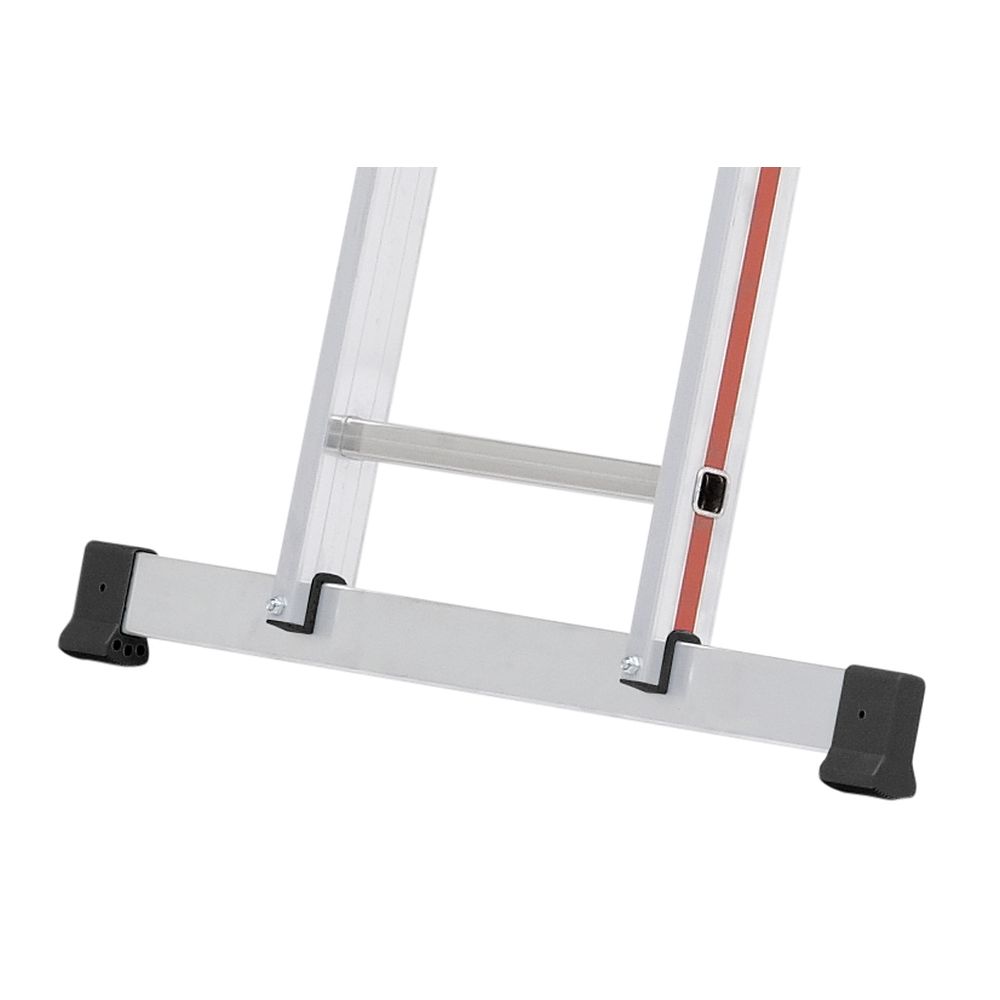

- Sturdy stabiliser bar
- Stairway mode possible up to 3×10
- Load capacity 150 kg
- EN 131 Professional
| SKU | Number Of rungs | Stile dimensions mm | Closed Length m | Extended Length (extension) m | Reach Height (extended) m | Reach Height (freestanding) m | Width (top/bottom) mm | weight kg |

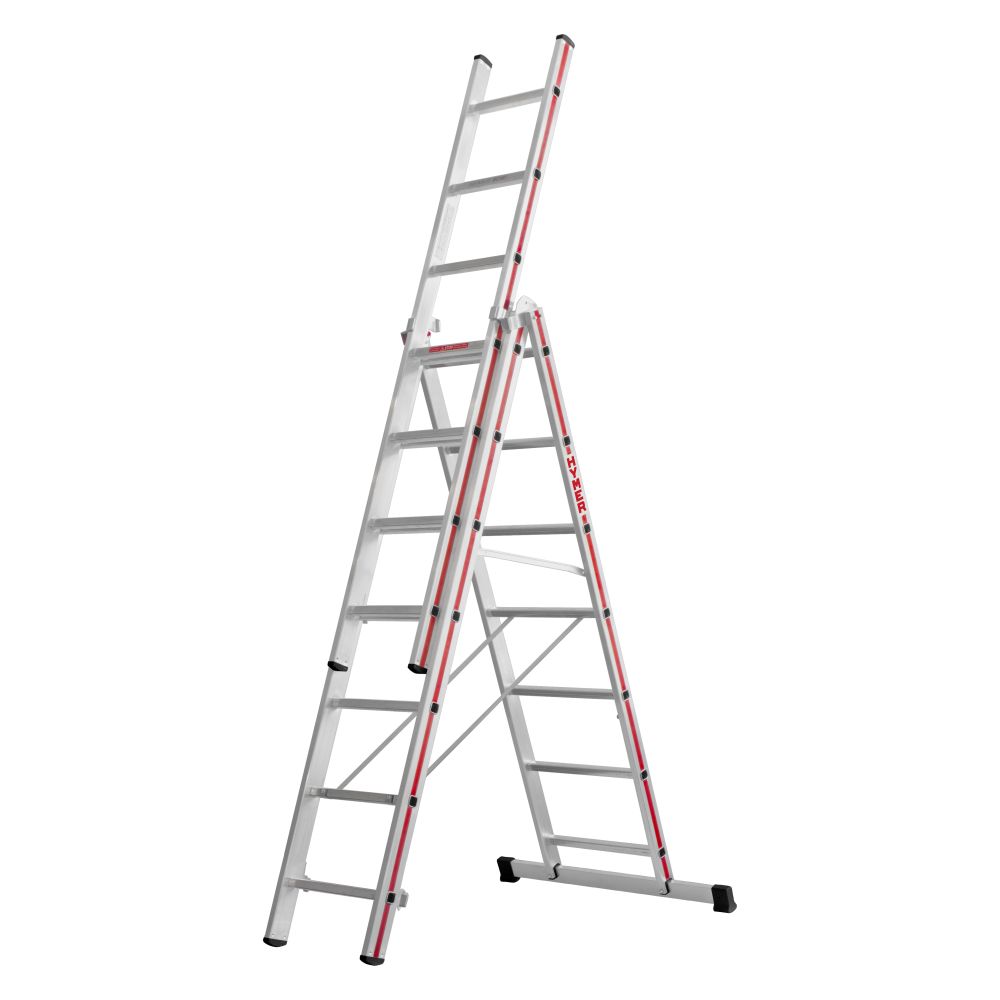

| 404721 | 3×7 | 60/66/60 | 2.07 | 4.87 | 5.73 | 4.06 | 355/425/837 | 13.2 |

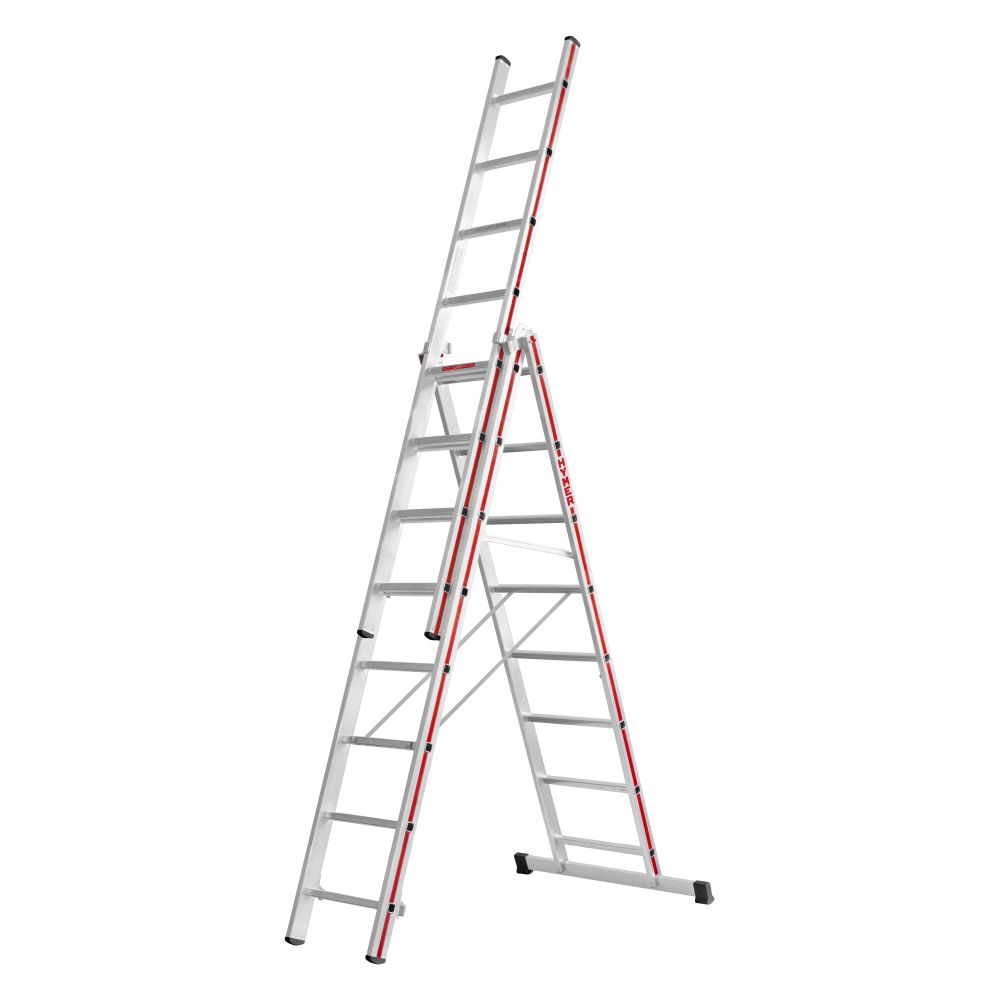

| 404724 | 3×8 | 60/71/60 | 2.35 | 5.43 | 6.29 | 4.59 | 355/425/1005 | 15.0 |

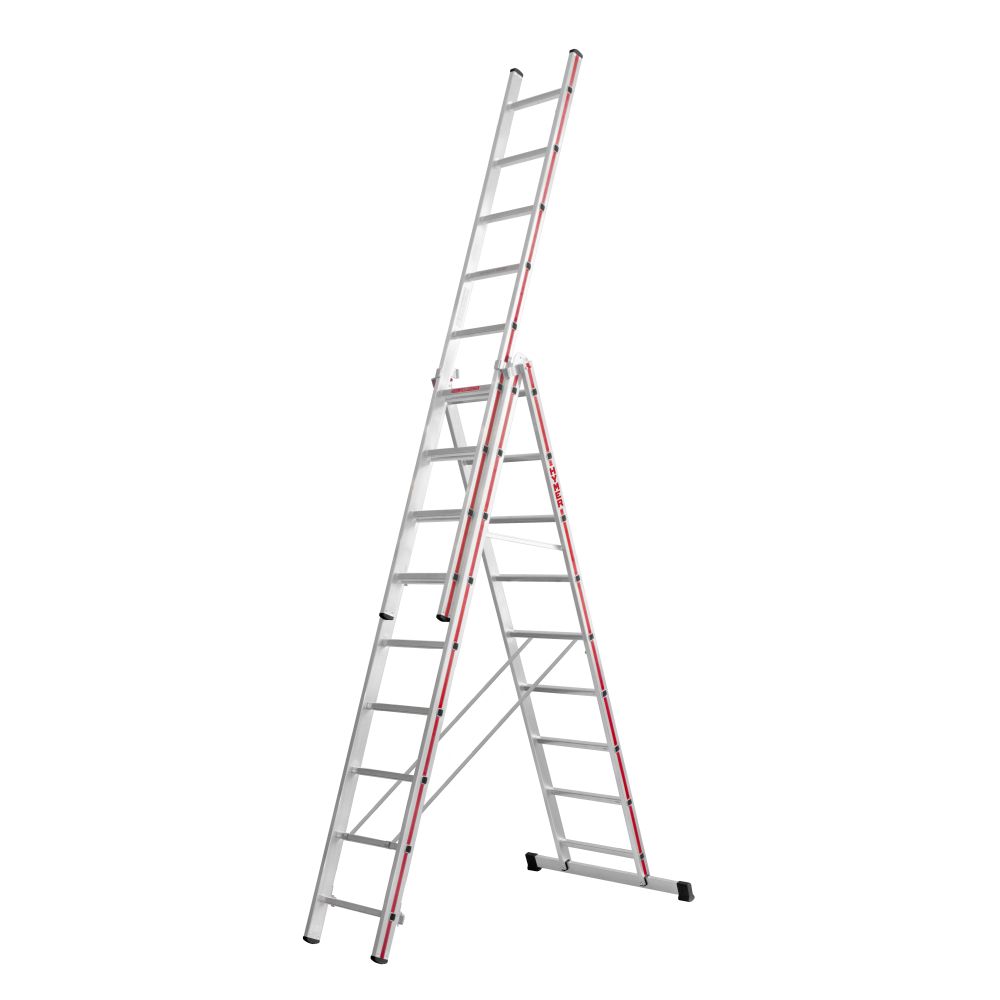

| 404727 | 3×9 | 71/83/71 | 2.63 | 6.55 | 7.39 | 5.12 | 355/425/1005 | 18.0 |

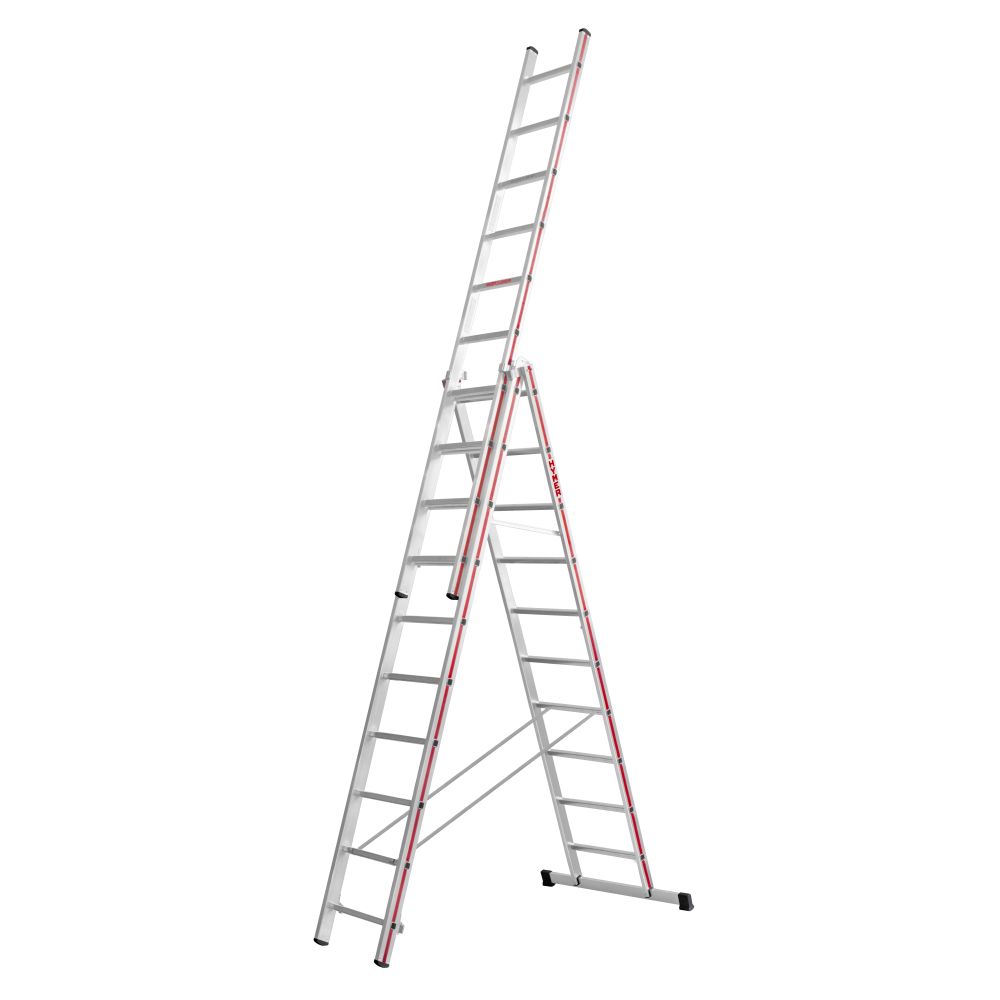

| 404730 | 3×10 | 71/83/71 | 2.91 | 7.11 | 7.94 | 5.65 | 355/425/1200 | 19.7 |

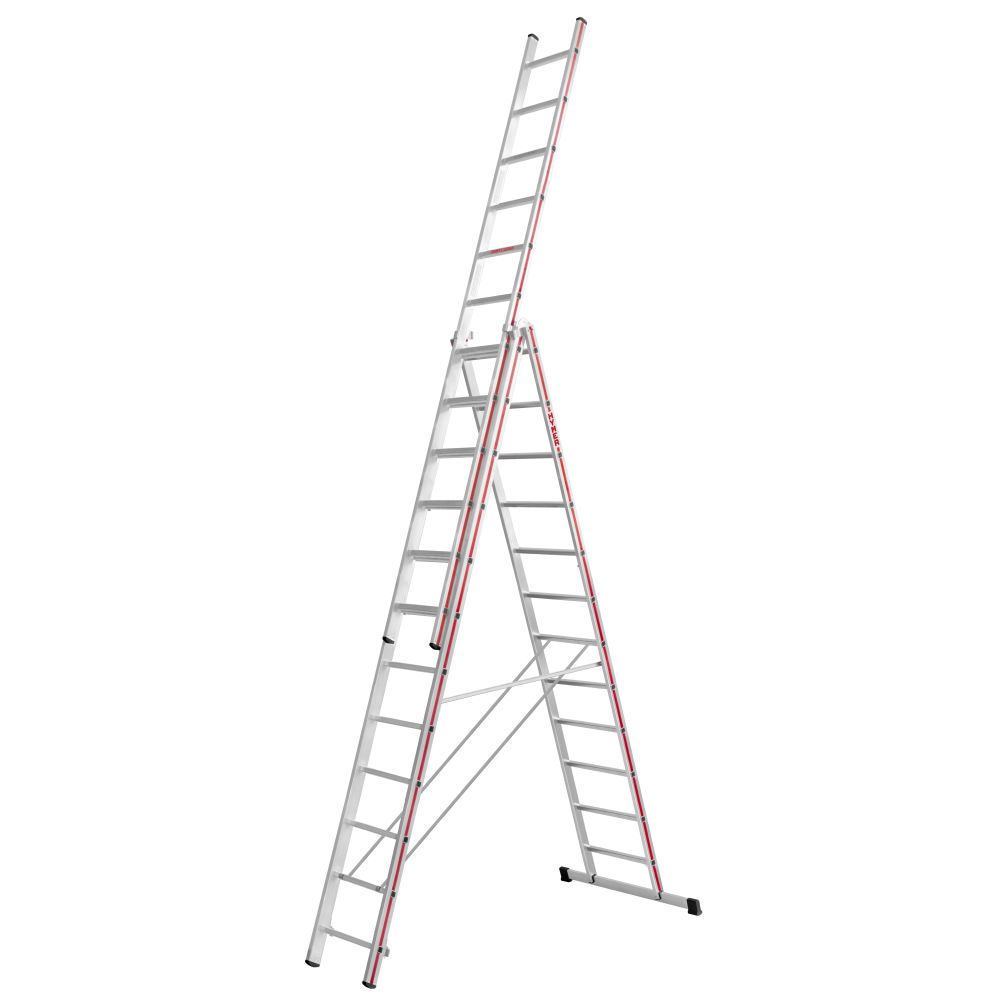

| 404736 | 3×12 | 71/89/71 | 3.47 | 8.51 | 9.32 | 6.44 | 355/425/1200 | 24.2 |

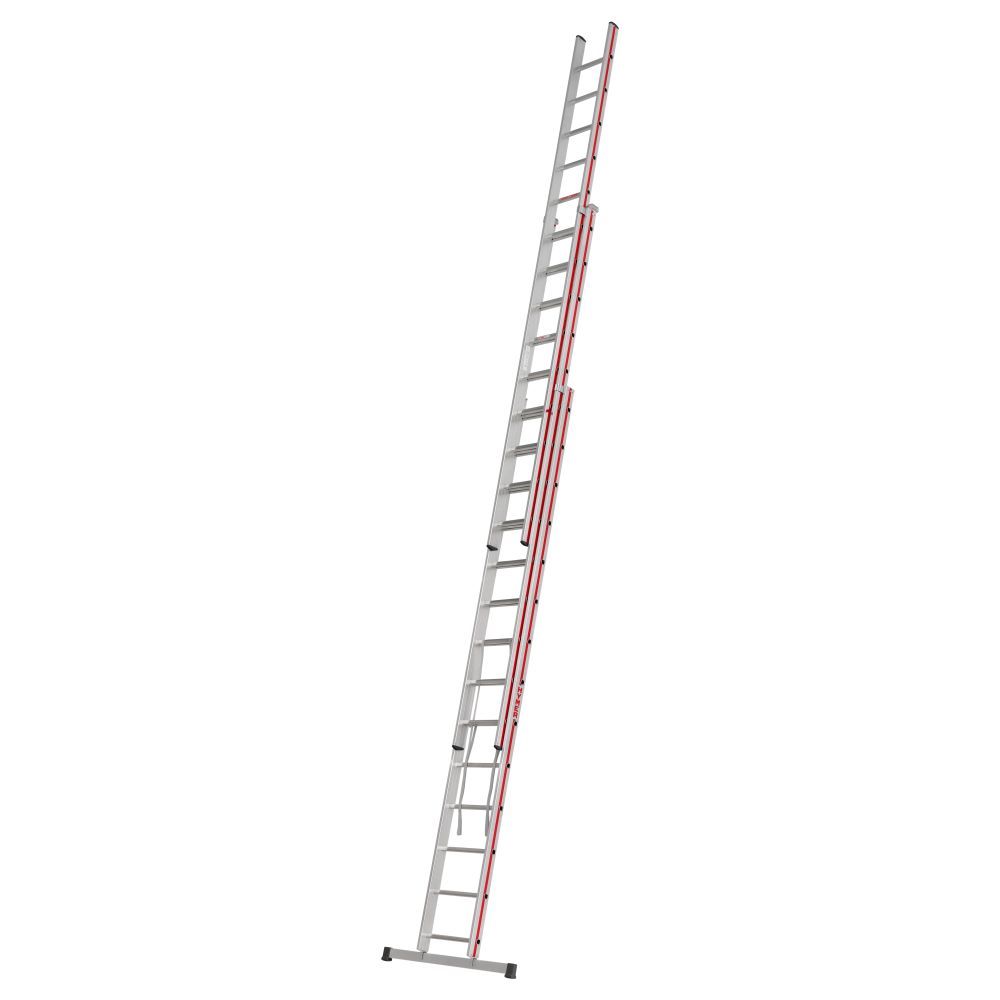

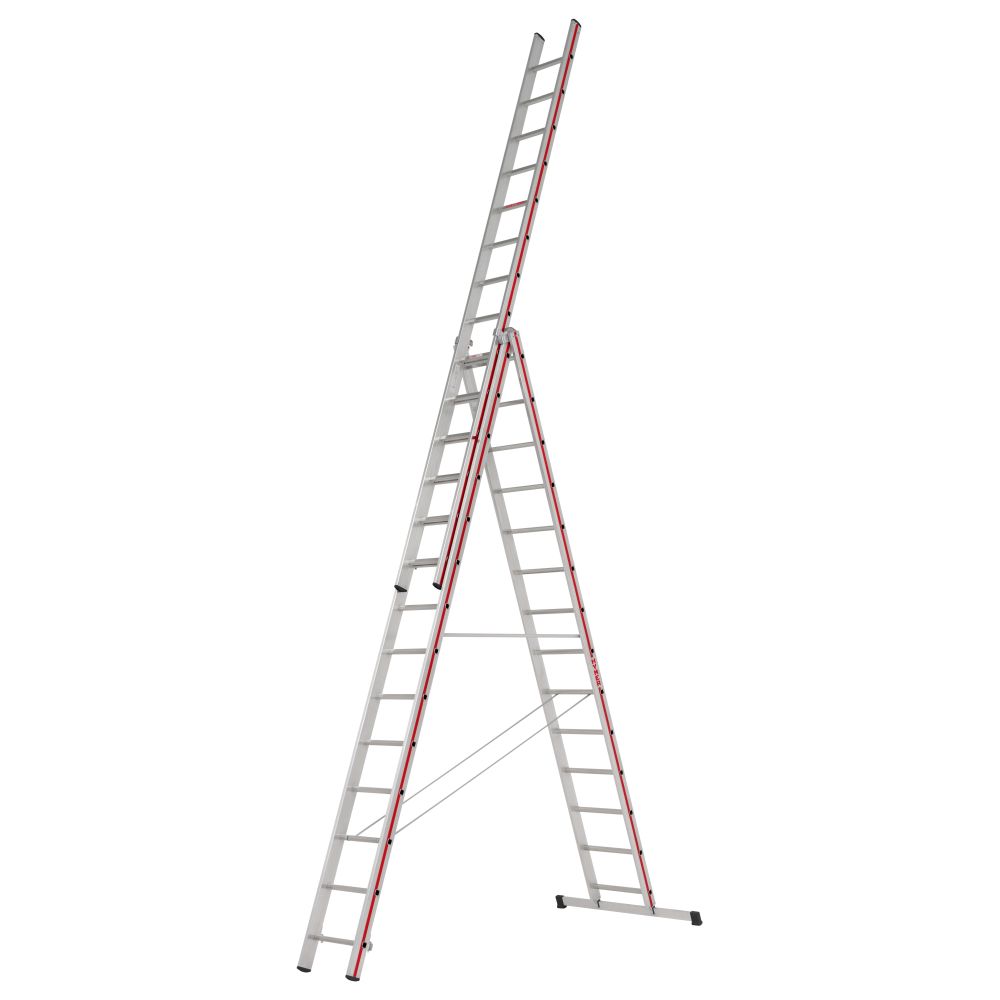

| 404742 | 3×14 | 89/89/89 | 4.11 | 9.72 | 10.34 | 7.23 | 355/425/1200 | 33.4 |
