Description

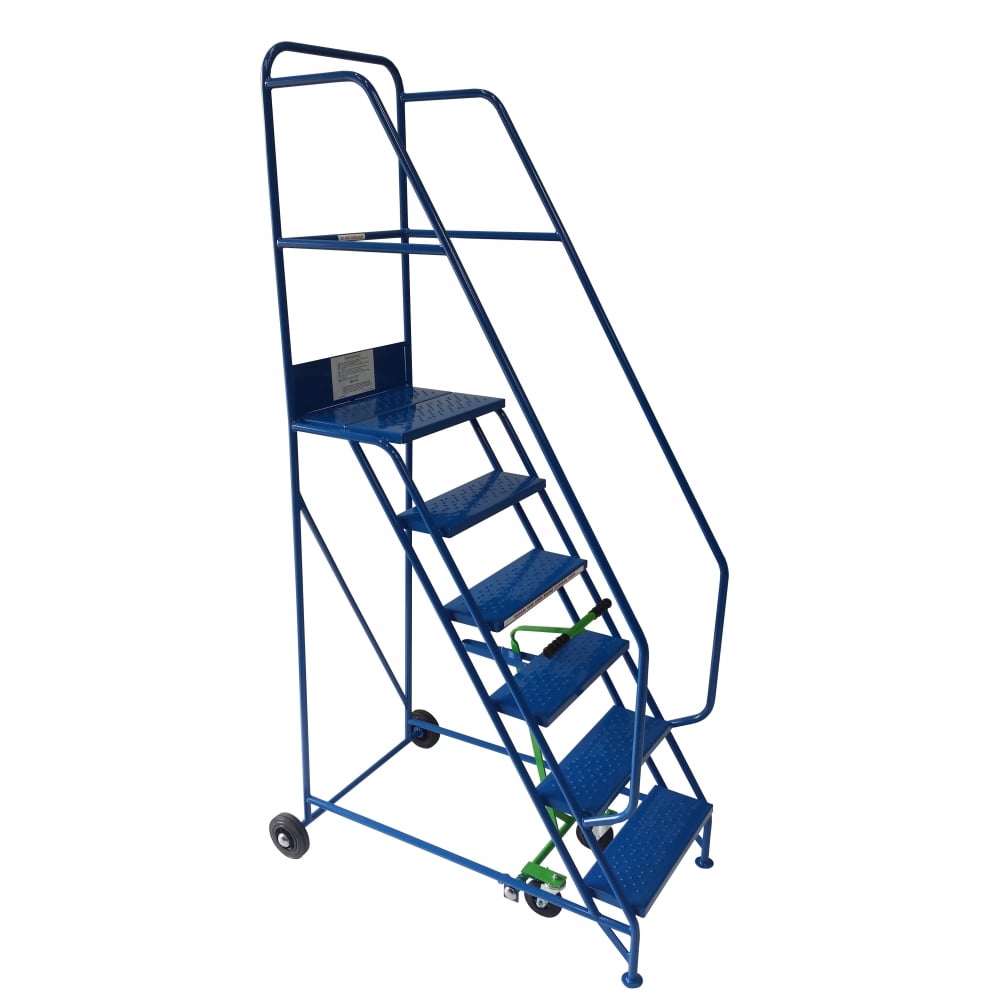

These strong Industrial Mobile Safety Warehouse Steps are fitted with double handrails for additional safety when climbing up or down.
Available in a choice of 6 colours with punched metal, PVC covered or rubber covered treads that will offer good grip underfoot. Choose from 3 to 15 tread mobile steps that are fully welded and ready to use.
- Platform Size: 550W x 400D mm
- Tread Depth: 550W x 200D mm
- Castor Dims: 2 x 125mm rubber tyred swivel retractableÂ
- Safe Working Load: 300kg
- Angle of Ascent:Â 60 degree
- Choose from 3 to 15 tread steps
- Available in blue or red as standard, other colours available at no extra cost
- Fully welded heavy duty tubular steel construction
- Tough epoxy powder coated finish
- 3 tread step is fitted with a side handle braking system

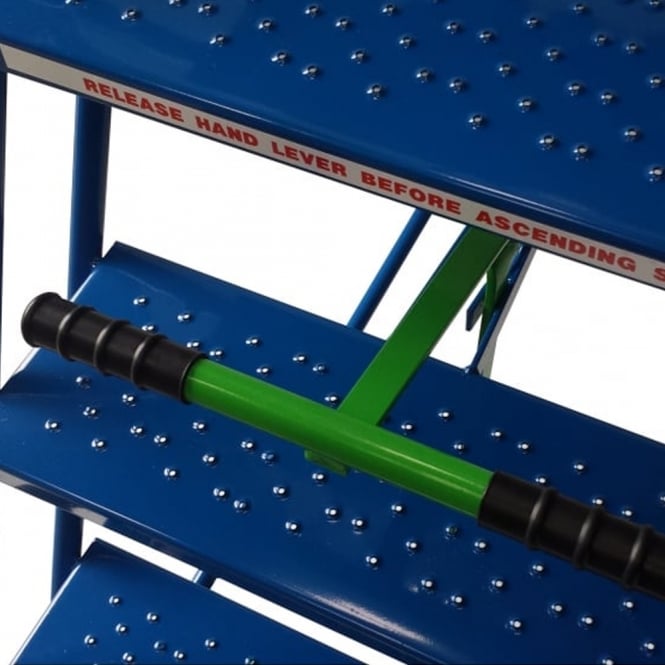

- 4-15 tread steps are fitted with a brightly coloured central braking system for easy identificationÂ
- 5 Year Warranty
- Manufactured in UK
- Specification sheet
| Product Code |
Treads | Working Platform Height |
Working Height |
Overall Height |
Overall Width |
Overall Length |
Weight | Brake Type |
|---|---|---|---|---|---|---|---|---|
| KE 03 | 3 | 750 | 1750 – 2500 | 1750 | 850 | 820 | 26 | Side brake |
| KE 04 | 4 | 1000 | 2000 – 2750 | 2000 | 850 | 1040 | 30 | Central brake |
| KE 05 | 5 | 1250 | 2250 – 3000 | 2250 | 850 | 1270 | 44 | Central brake |
| KE 06 | 6 | 1500 | 2500 – 3250 | 2500 | 850 | 1360 | 52 | Central brake |
| KE 07 | 7 | 1750 | 2750 – 3500 | 2750 | 850 | 1450 | 60 | Central brake |
| KE 08 | 8 | 2000 | 3000 – 3750 | 3000 | 850 | 1575 | 73 | Central brake |
| KE 09 | 9 | 2250 | 3250 – 4000 | 3250 | 850 | 1730 | 77 | Central brake |
| KE 10 | 10 | 2500 | 3500 – 4250 | 3500 | 1000 | 1905 | 80 | Central brake |
| KE 11 | 11 | 2750 | 3750 – 4500 | 3750 | 1000 | 2070 | 82 | Central brake |
| KE 12 | 12 | 3000 | 4000 – 4750 | 4000 | 1000 | 2230 | 86 | Central brake |
| KE 13 | 13 | 3250 | 4250 – 5000 | 4250 | 1230 | 2470 | 95 | Central brake |
| KE 14 | 14 | 3500 | 4500 – 5250 | 4500 | 1230 | 2630 | 107 | Central brake |
| KE 15 * | 15 | 3750 | 4750 – 5500 | 4750 | 1320 | 2795 | 109 | Central brake |
WORKING HEIGHT: Is a general ‘guide’ taken between waist height and just above the shoulders of the average person (approx. 750mm range).
* Shipping cost POA
