Description
Inglewood Shelter suitable for use as a smoking/vaping area.
The Inglewood shelter is a free-standing, open fronted shelter designed for on site assembly, constructed from galvanised mild steel. Complete with a 4mm PETG clear sheet roof, and ½ side panels. Side-to side curved roof.
Width of 3m, with lengths from 1-5m, extension bays can be added to achieve the desired shelter length. Bolt down as standard.
Product Details

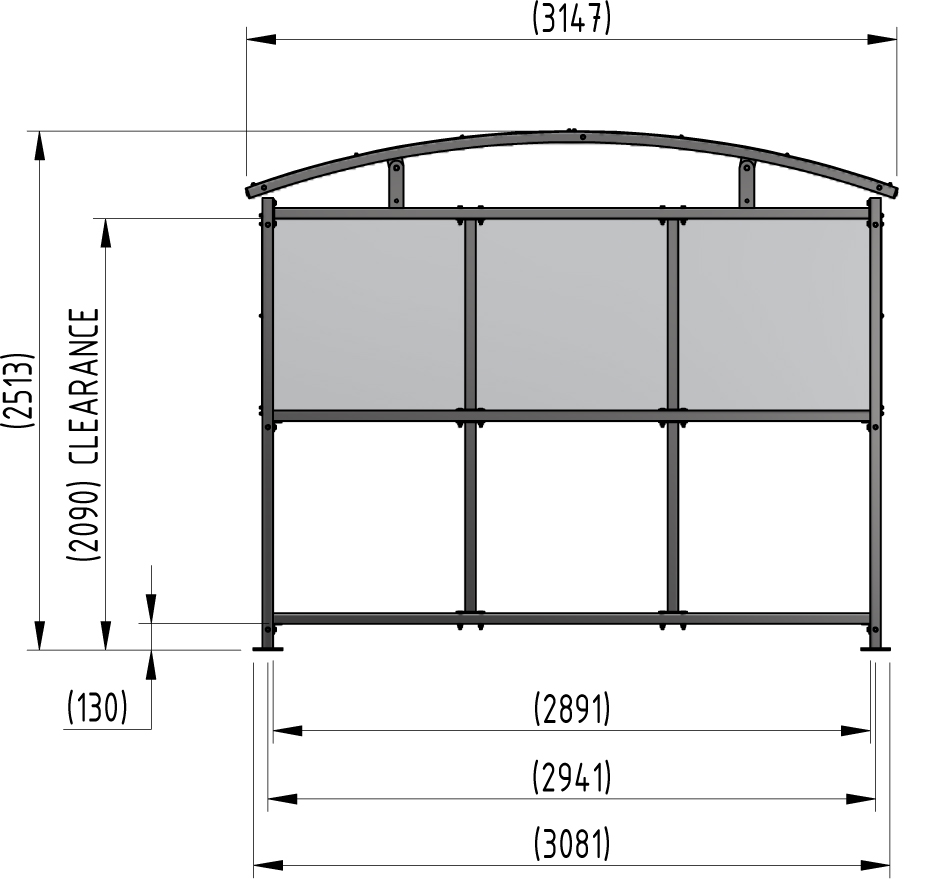

- Height – 2090mm clearance, 2513mm overall
- Width – 3147mm overall
- Length – 1m, 2m, 3m, 4m, 5m and extensions
- Square flange plate – 140mm x 140mm x 10mm
- Each flange plate requires 4 bolts
- 4mm PETG clear sheet

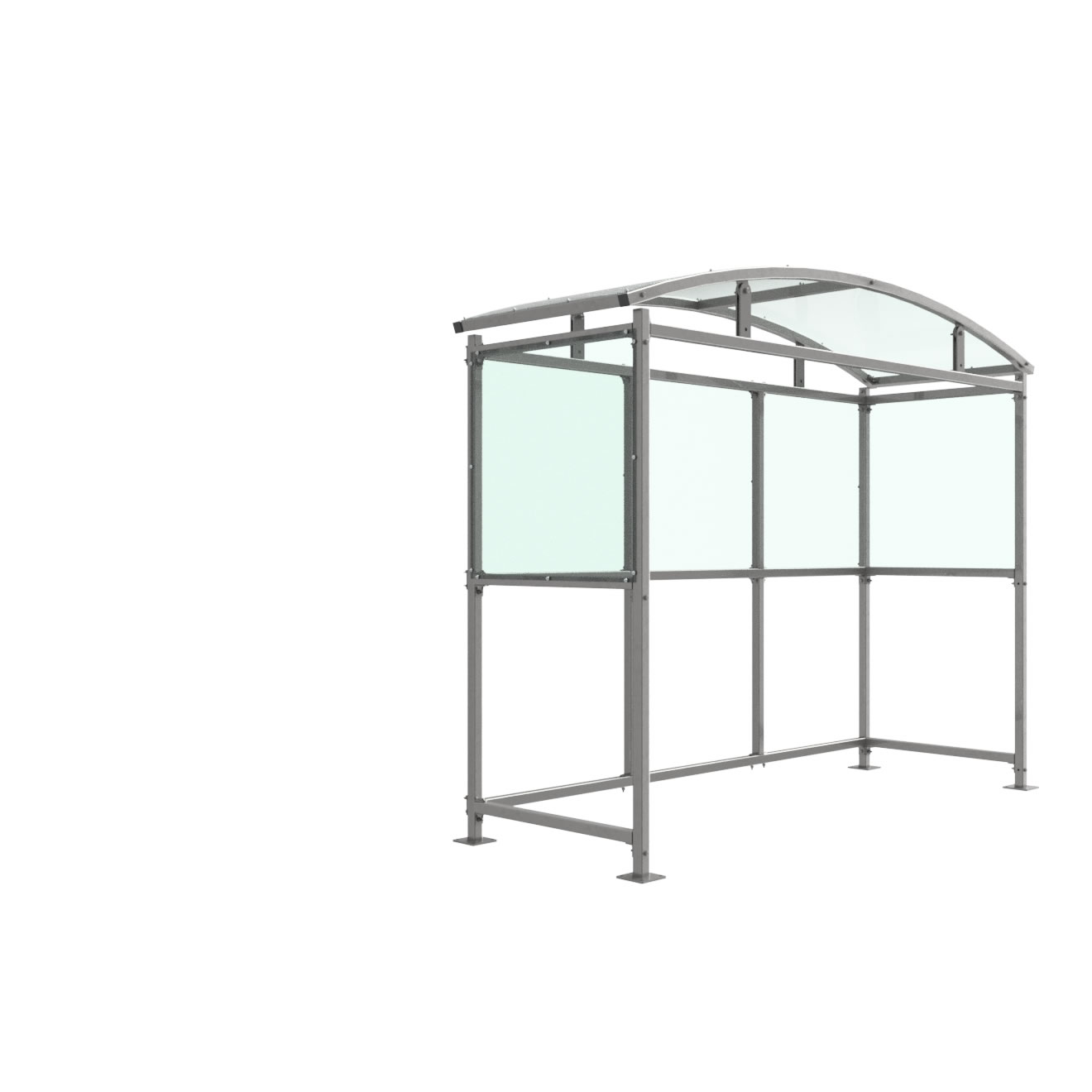

138000410 – Inglewood Shelter 1m – 214kg

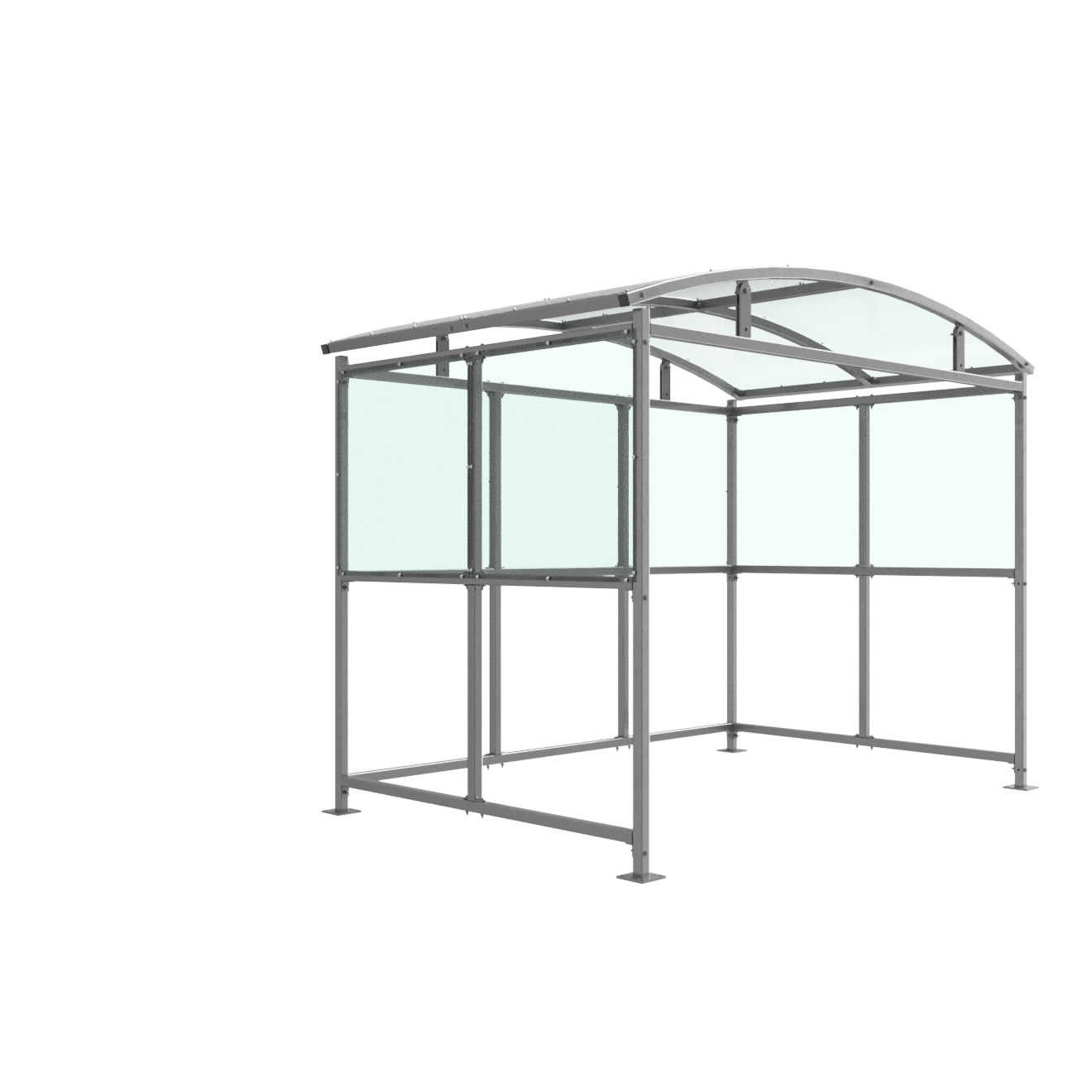

138000412 – Inglewood Shelter 2m – 306kg
138000414 – Inglewood Shelter 3m – 398kg

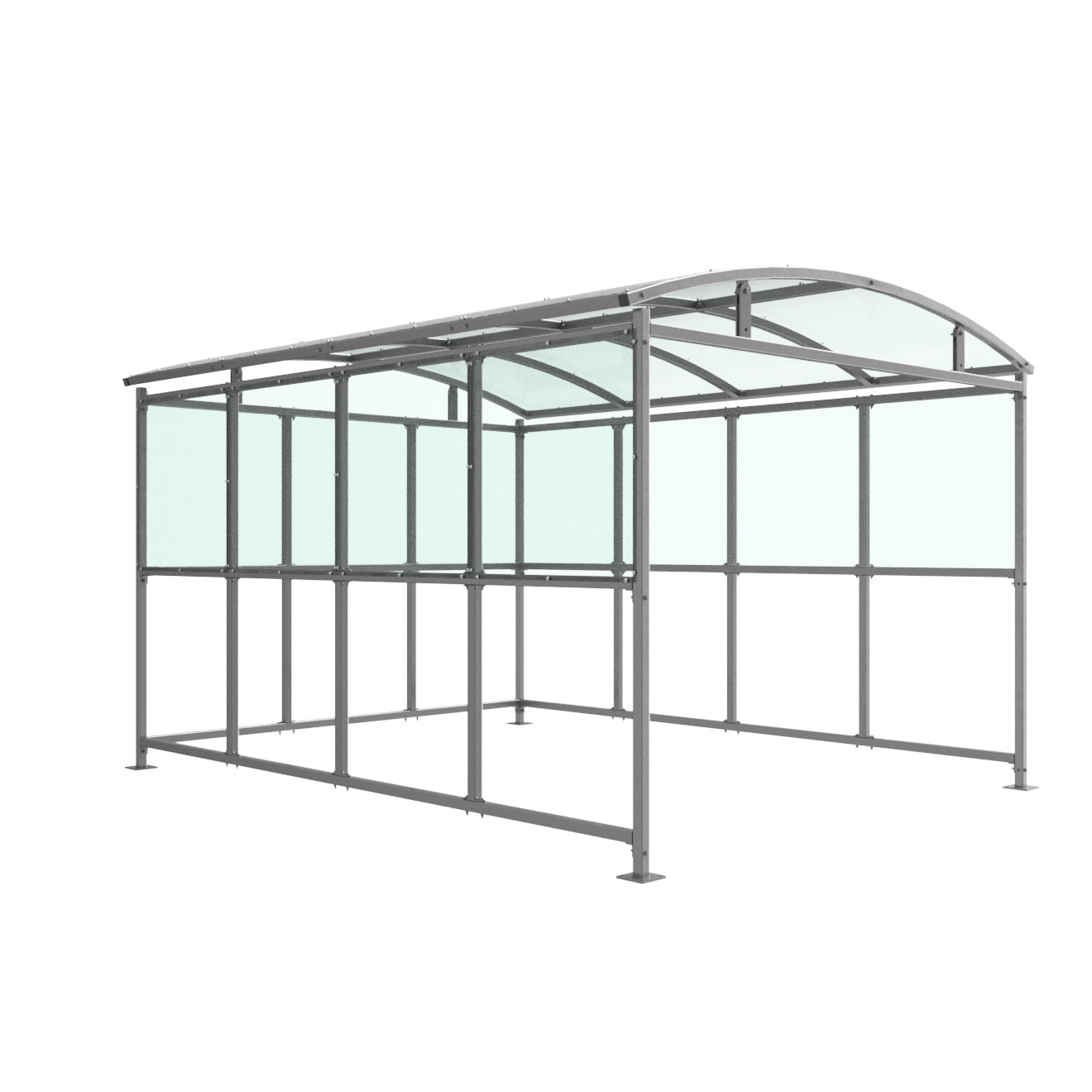

138000416 – Inglewood Shelter 4m – 490kg

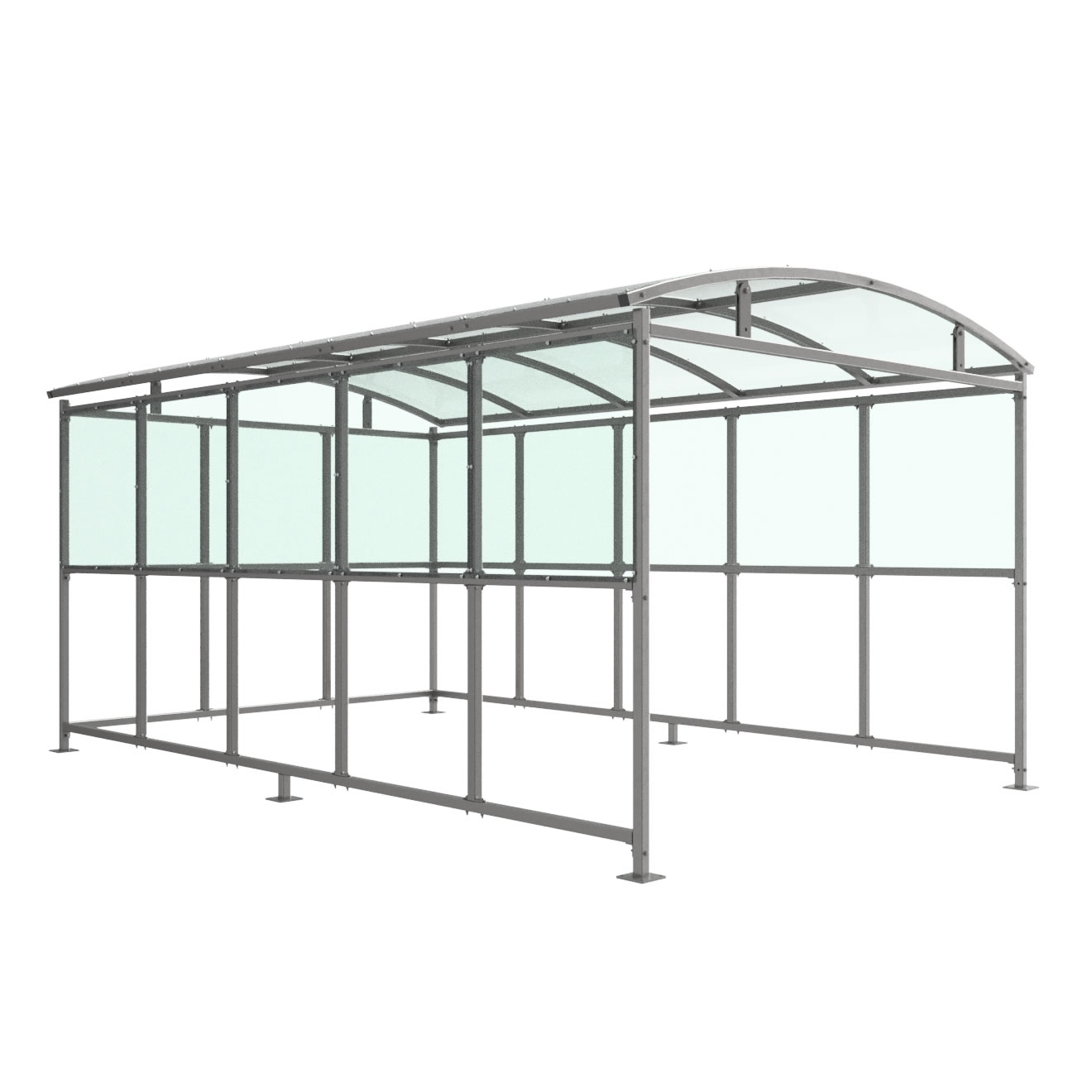

138000418 – Inglewood Shelter 5m – 585kg
138000411 – Inglewood Shelter 1m extension bay
138000413 – Inglewood Shelter 2m extension bay
138000415 – Inglewood Shelter 3m extension bay
138000417 – Inglewood Shelter 4m extension bay
138000419 – Inglewood Shelter 5m extension bay
Optional Extras

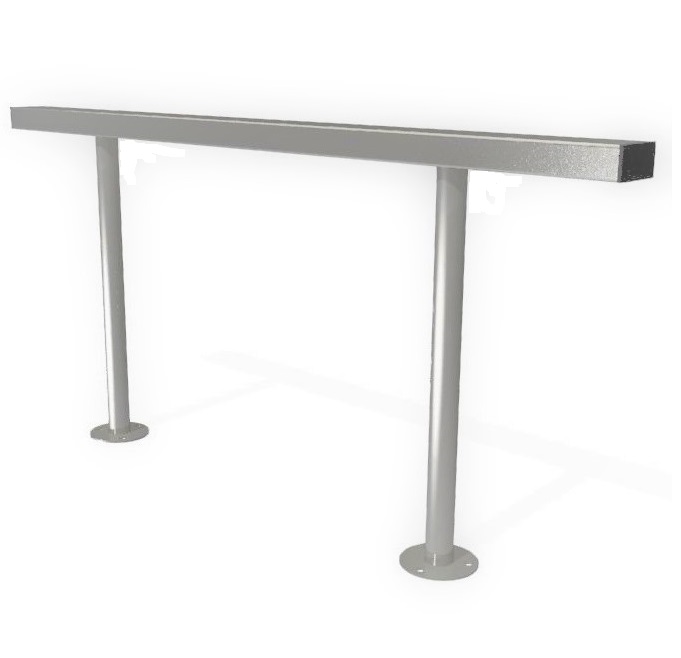

138000050 – Large Perch Bench. Galvanised. L1500 x W90 x H700 mm. Excludes fixing bolts.
138000051 – Small Perch Bench. Galvanised. L1000 x W90 x H700 mm. Excludes fixing bolts.
138817140 – Wall Ashtray. Bright polished stainless steel. Body tips up for emptying. Supplied with fixing kit. W: 150 x D: 72 x H: 48mm
Installation & Use
- This product is guaranteed for 12 months (if installed and used correctly)
- Each shelter leg requires bolting down to a suitable concrete surface, using expanding anchor bolts
- The area surrounding the installation must be flat and level with no nearby surface irregularities or gradient changes
- On-site assembly requires construction skill
