Description
Hand built with attention to detail, both in design and manufacture, to ensure total reliability and may years or arduous operation. Over load tested to 200kg.
With these steps, the narrow base is achieved by mounting the outboard wheels on a straight base frame, ensuring an optimum space-saving design. Made from welded heavy gauge steel box section and bar construction, steps are designed and built to withstand many years’ arduous use in the most demanding of environments. The main structure is finished in a tough, hardwearing blue epoxy coating, with the safety bar and hand lever mechanism finished in safety yellow.
Available with 3 up to 15 treads, including the platform, there is a choice of either Ribbed Rubber or Expamet tread finishes. The hand lock lever anchorage ensures that, when locked, the front feet rest firmly on the floor, and the feet are fitted with protective grey, non-marking rubber.

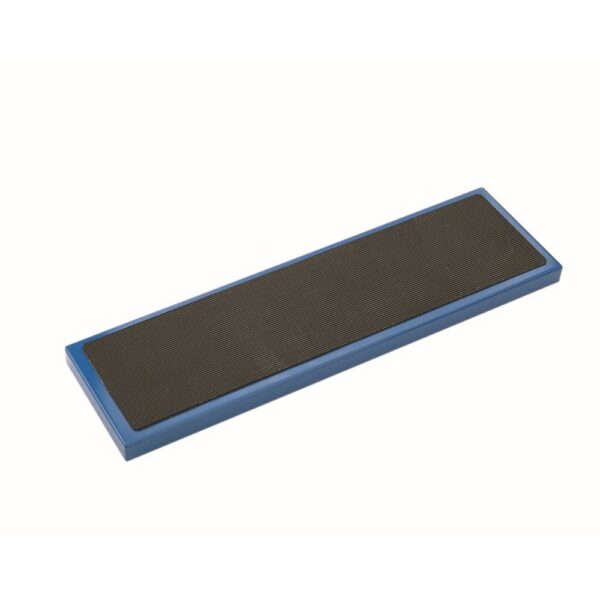

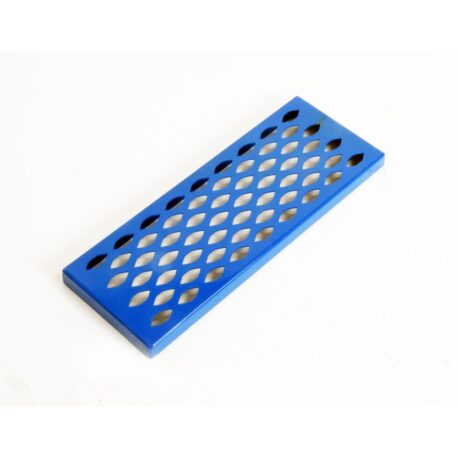

Ribbed Rubber / Expamet
Hand built with attention to details, both in design and manufacture, to ensure total reliability and many years of arduous operation. Over load tested to 200kg.
Construction: Welded heavy gauge steel box section and bar. Fitted with hand lock lever anchorage; when locked, the front feet rest firmly on the floor, feet fitted with protective grey non-marking rubber feet. Safety warning bar fitted to protrude in front of steps, linked to hand lock lever mechanism, to deter users from climbing steps when still in ‘mobile’ mode.
Narrow base model: Outboard wheels mounted on straight base frame for optimum space saving requirements.
Finish: Main structure blue epoxy finish; safety bar and hand lever mechanism in safety yellow.
Wheels: Front 2 swivel castors with 100mm dimeter rubber tyred wheels, with roller bearings. 2 rear axle mounted 200mm diameter wheels with rubber tyres and roller bearings.
A caution notice is fitted to remind user of operation procedure. A Health and Safety at Work information sheet is supplied.
| Treads Inc. Platform | Average Working Height mm | Platform Height mm | Overall Dimension (H x W x D) mm | R/Rubber Tread SKU | Kg | Expamet Tread SKU | Kg |
| 3 | 2190 | 690 | 1690 x 700 x 930 | S960 | 51 | S980 | 43 |
| 4 | 2420 | 920 | 1920 x 700 x 1140 | S961 | 59 | S981 | 51 |
| 5 | 2650 | 1150 | 2150 x 700 x 1240 | S962 | 69 | S982 | 57 |
| 6 | 2880 | 1380 | 2380 x 700 x 1410 | S963 | 88 | S983 | 76 |
| 7 | 3110 | 1610 | 2610 x 700 x 1570 | S964 | 97 | S984 | 84 |
| 8 | 6640 | 1840 | 2840 x 700 x 1740 | S965 | 107 | S985 | 94 |
| 9 | 3570 | 2070 | 3070 x 700 x 1900 | S966 | 117 | S986 | 105 |
| 10* | 3800 | 2300 | 3300 x 900 x 2060 | S967 | 131 | S987 | 119 |
| 11* | 4030 | 2530 | 3530 x 900 x 2230 | S968 | 140 | S988 | 127 |
| 12* | 4260 | 2760 | 3760 x 900 x 2400 | S969 | 151 | S989 | 138 |
| 13* | 4490 | 2990 | 3990 x 1230 x 2560 | S970 | 163 | S990 | 148 |
| 14* | 4720 | 3220 | 4220 x 900 x 2730 | S971 | 175 | S991 | 160 |
| 15* | 4950 | 3450 | 4450 x 900 x 2890 | S972 | 187 | S992 | 172 |
* 10 tread and above supplied in 2 halves for transport purposes.
