Description

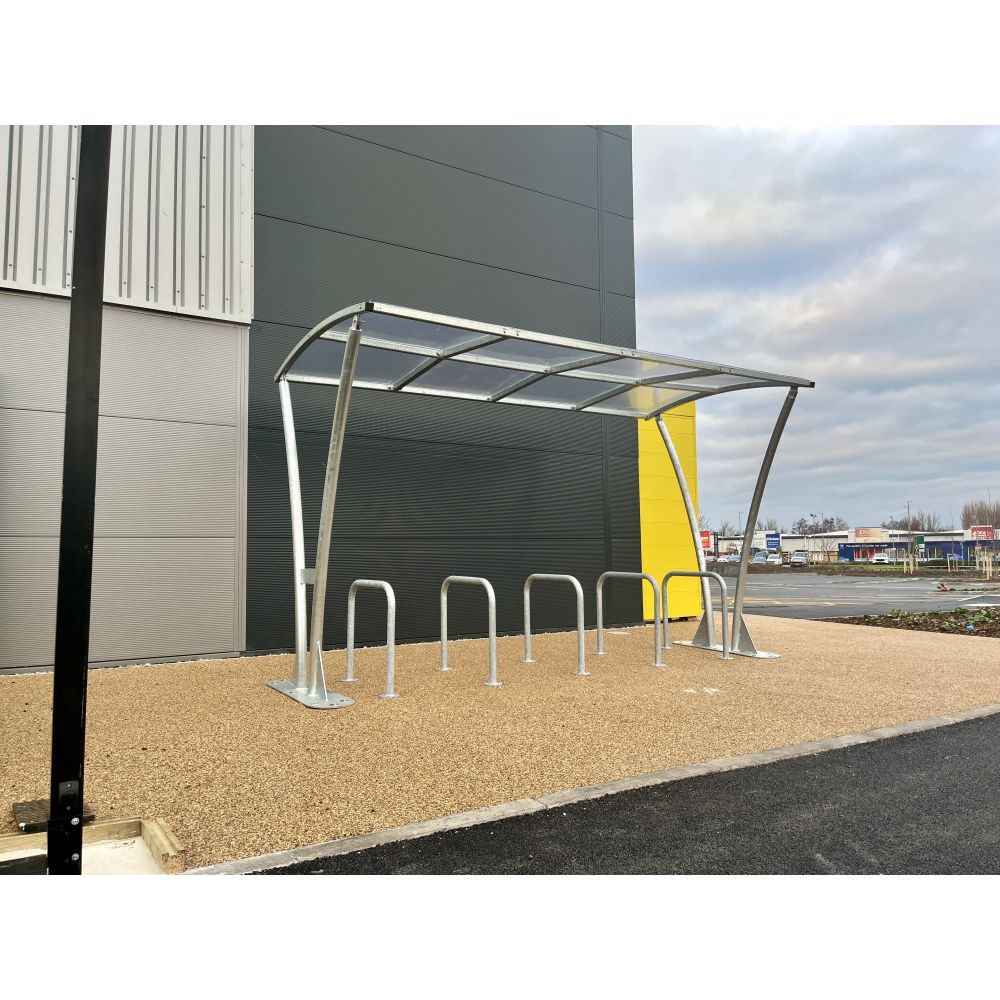

The Tatham shelter is a free-standing, open sided shelter designed for on site assembly, constructed from galvanised mild steel. Complete with a 4mm PETG clear sheet, or 1mm galvanised sheet curved roof.
Width of 2m, with lengths from 2m-5m, extension bays can be added to achieve the desired shelter length. Bolt down as standard.
Features
- Height – 2311mm clearance, 2480mm overall
- Width – 2074mm overall
- Length – 2m, 3m, 4m, 5m and extensions
- Flange plate – 1224mm x 300mm x 8mm
- Each flange plate requires 8 bolts
- 4mm PETG clear sheet or 1mm galvanised sheet
- Bike stands are not included but available here
Installation
- This product is guaranteed for 12 months (if installed and used correctly)
- Each shelter leg requires bolting down to a suitable concrete surface, using expanding anchor bolts
- The area surrounding the installation must be flat and level with no nearby surface irregularities or gradient changes
- On-site assembly requires construction skill
PETG Roof

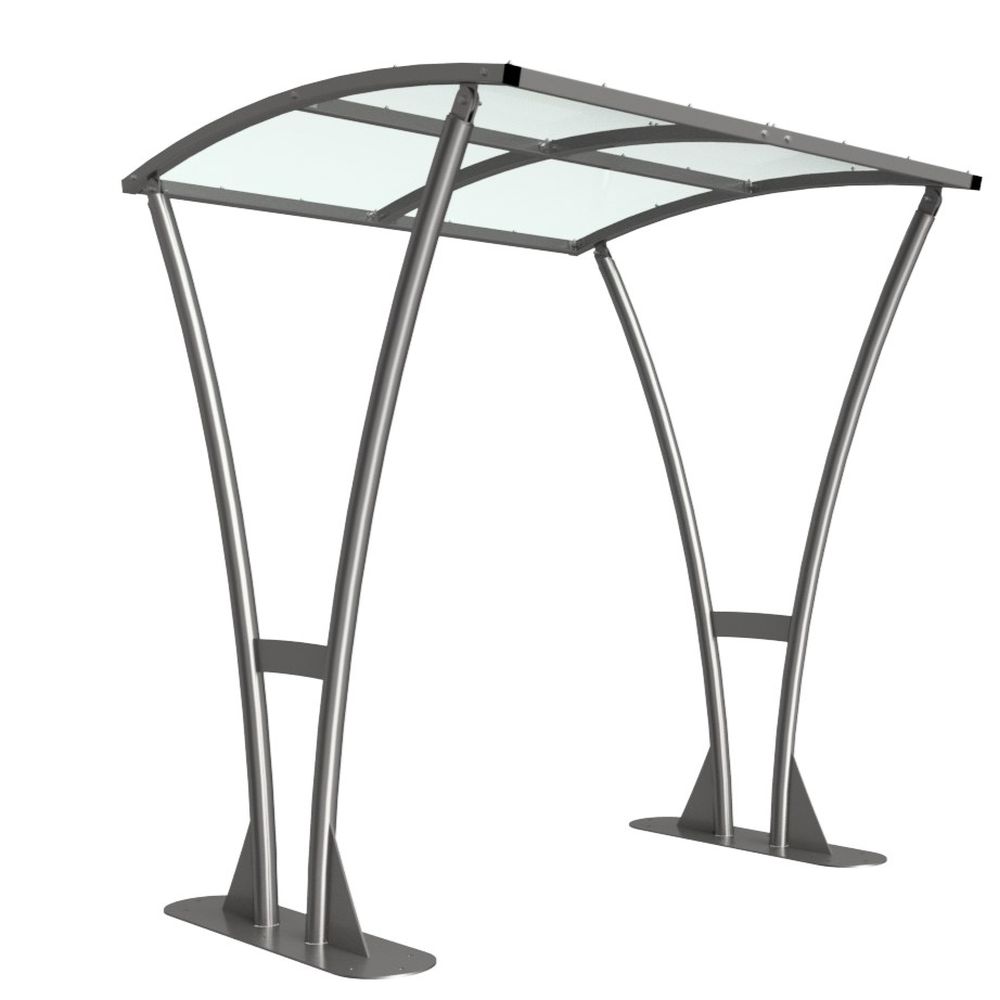

138204700 – Tatham Shelter 2m – 187kg – 5 Cycles
138204702 – Tatham Shelter 3m – 218kg – 8 Cycles

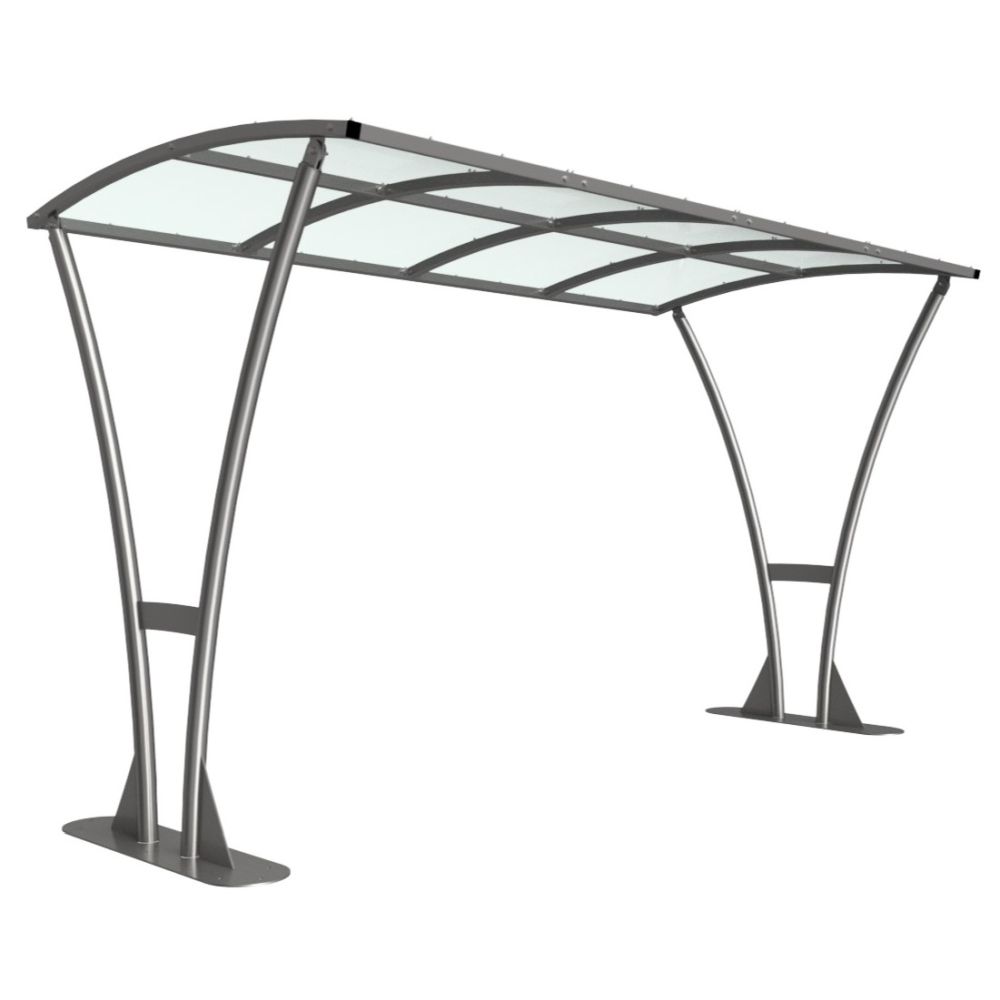

138204704 – Tatham Shelter 4m – 249kg – 10 Cycles

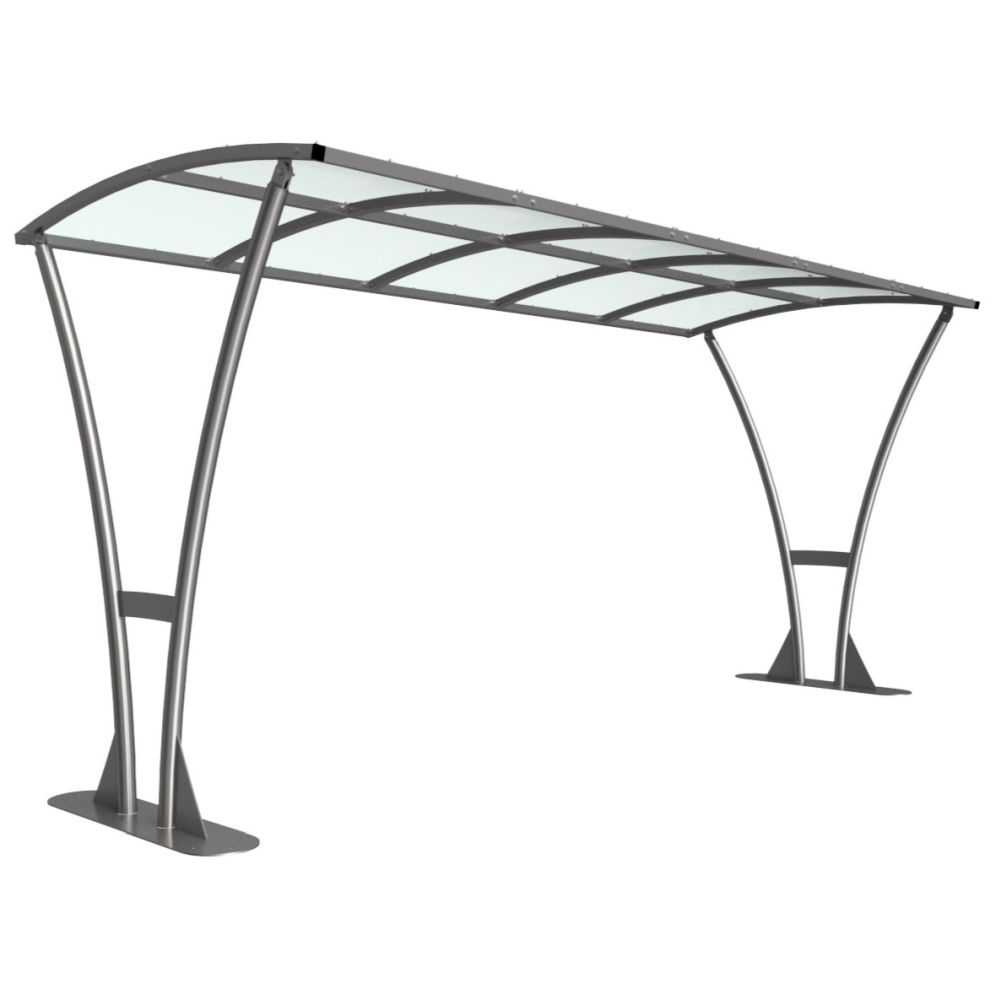

138204706 – Tatham Shelter 5m – 280kg – 12 Cycles
138204701 – Tatham Shelter 2m extension bay
138204703 – Tatham Shelter 3m extension bay
138204705 – Tatham Shelter 4m extension bay
138204707 – Tatham Shelter 5m extension bay
Galvanised Roof

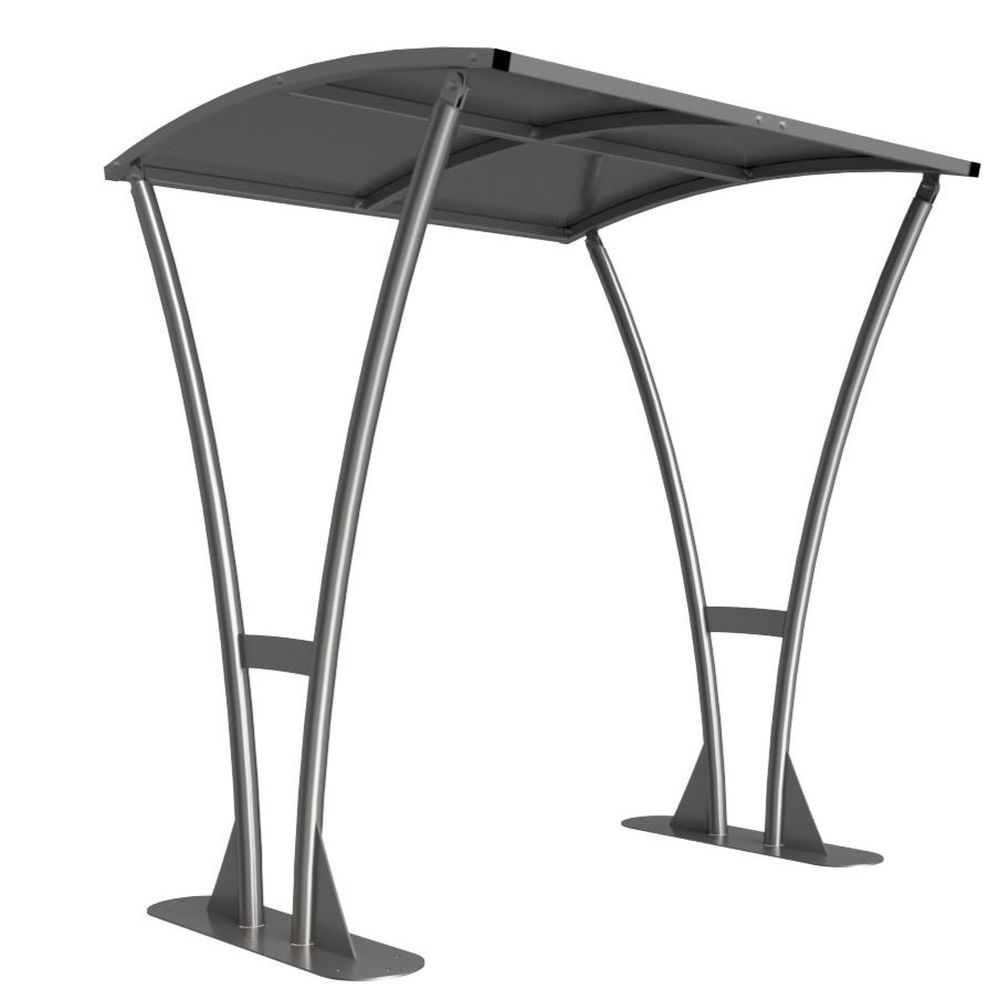

138204710 – Tatham Shelter 2m – 194kg – 5 Cycles

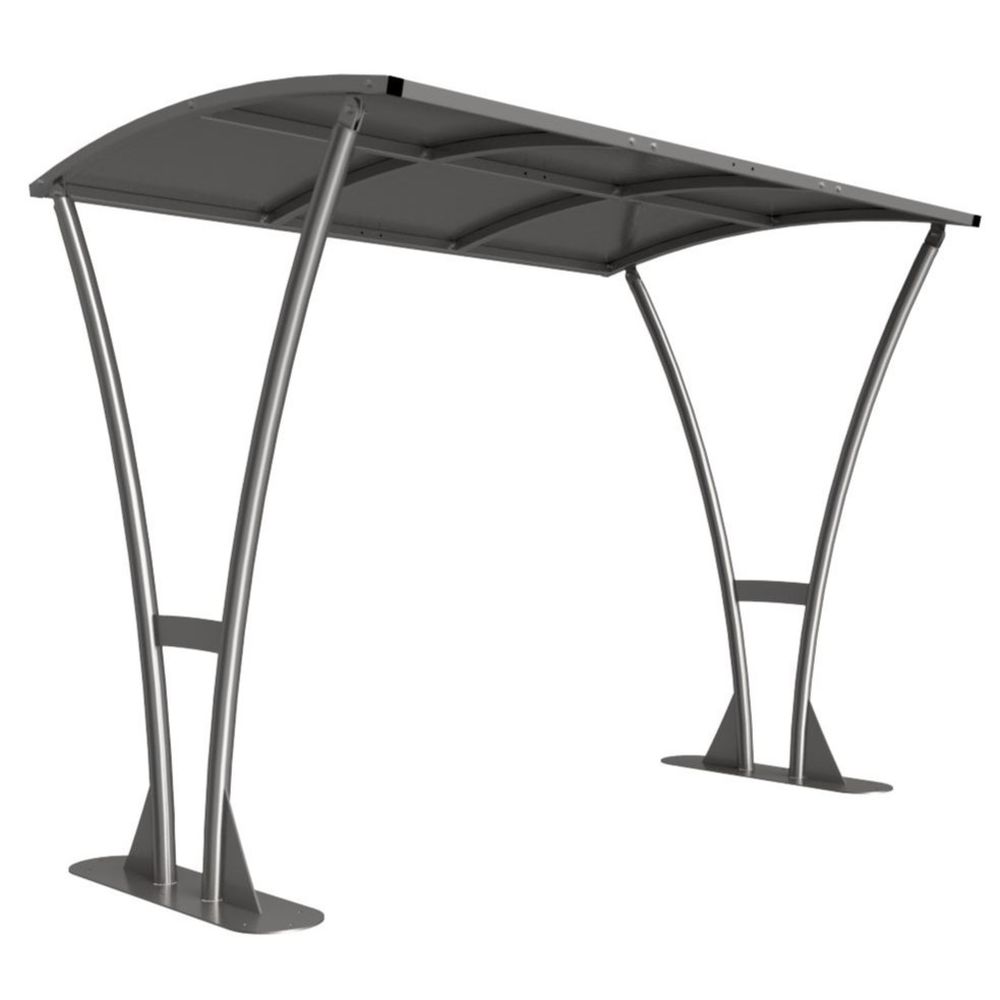

138204712 – Tatham Shelter 3m – 229kg – 8 Cycles

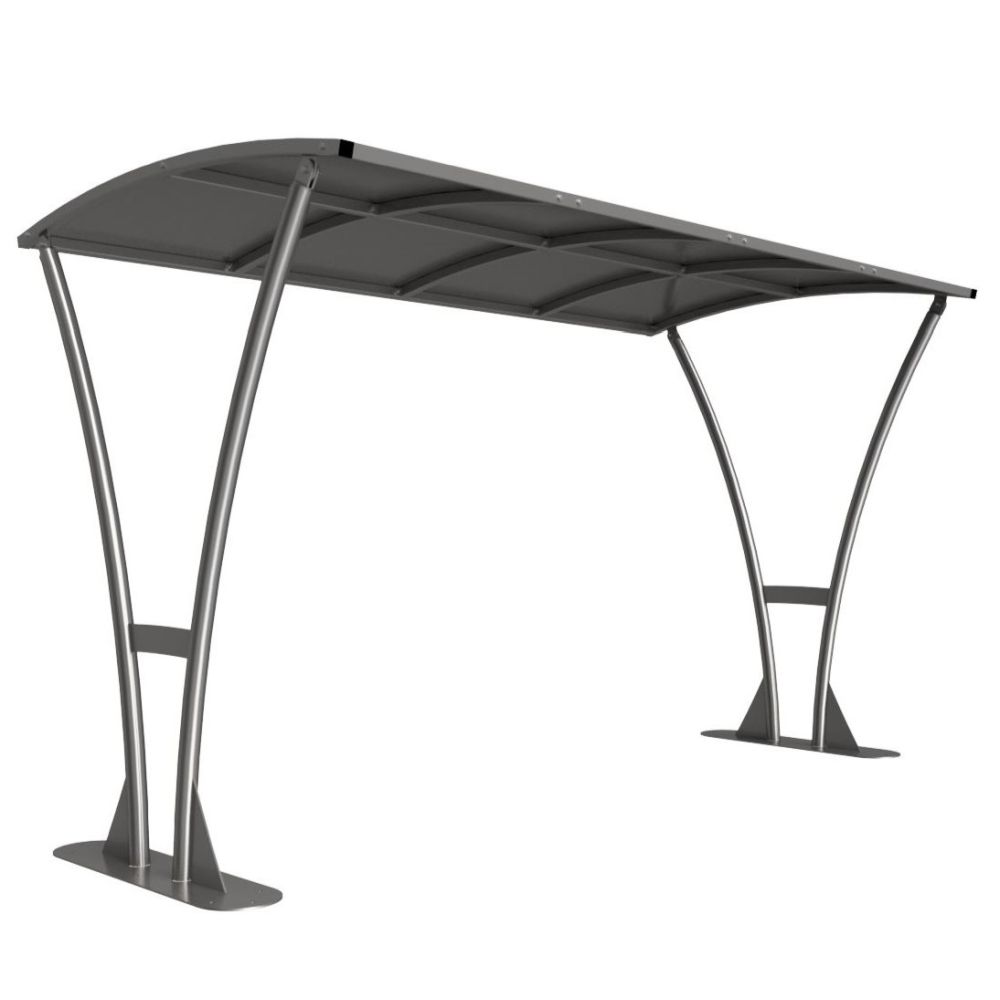

138204714 – Tatham Shelter 4m – 263kg – 10 Cycles

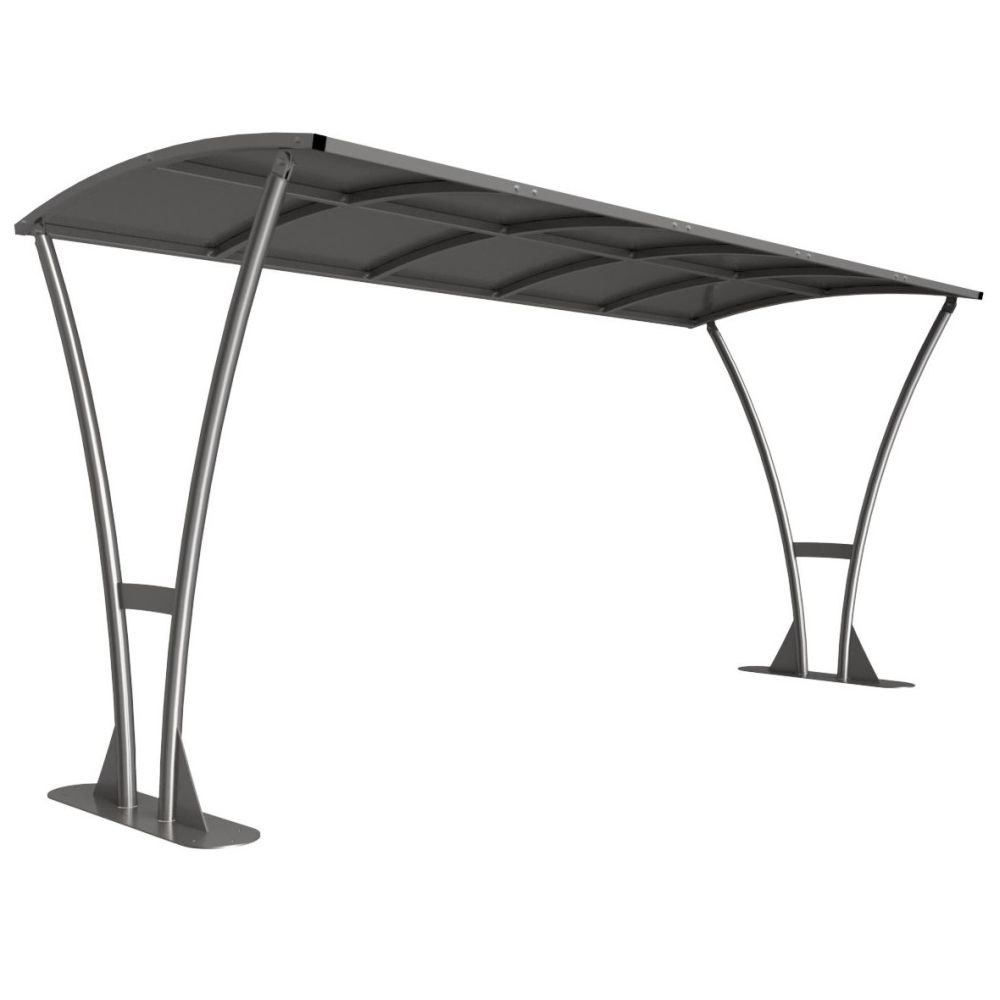

138204716 – Tatham Shelter 5m – 298kg – 12 Cycles
138204711 – Tatham Shelter 2m extension bay
138204713 – Tatham Shelter 3m extension bay
138204715 – Tatham Shelter 4m extension bay
138204717 – Tatham Shelter 5m extension bay
