Description
The Welton shelter is a free-standing, open fronted shelter designed for on site assembly, constructed from galvanised mild steel. Complete with a 4mm PETG clear sheet roof, and side panels. Side-to side curved roof.
Width of 4m, with lengths from 1m-5m, extension bays can be added to achieve the desired shelter length. Bolt down as standard.
Suitable for cycles, trolleys, sports & spectators, waiting passengers, pay & display, electric vehicles etc.
Product Details
- Height – 2090mm clearance, 2695mm overall
- Width – 4062mm overall
- Length – 1m, 2m, 3m, 4m, 5m and extensions
- Square flange plate – 140mm x 140mm x 10mm
- Each flange plate requires 4 bolts
- 1mm galvanised steel panels

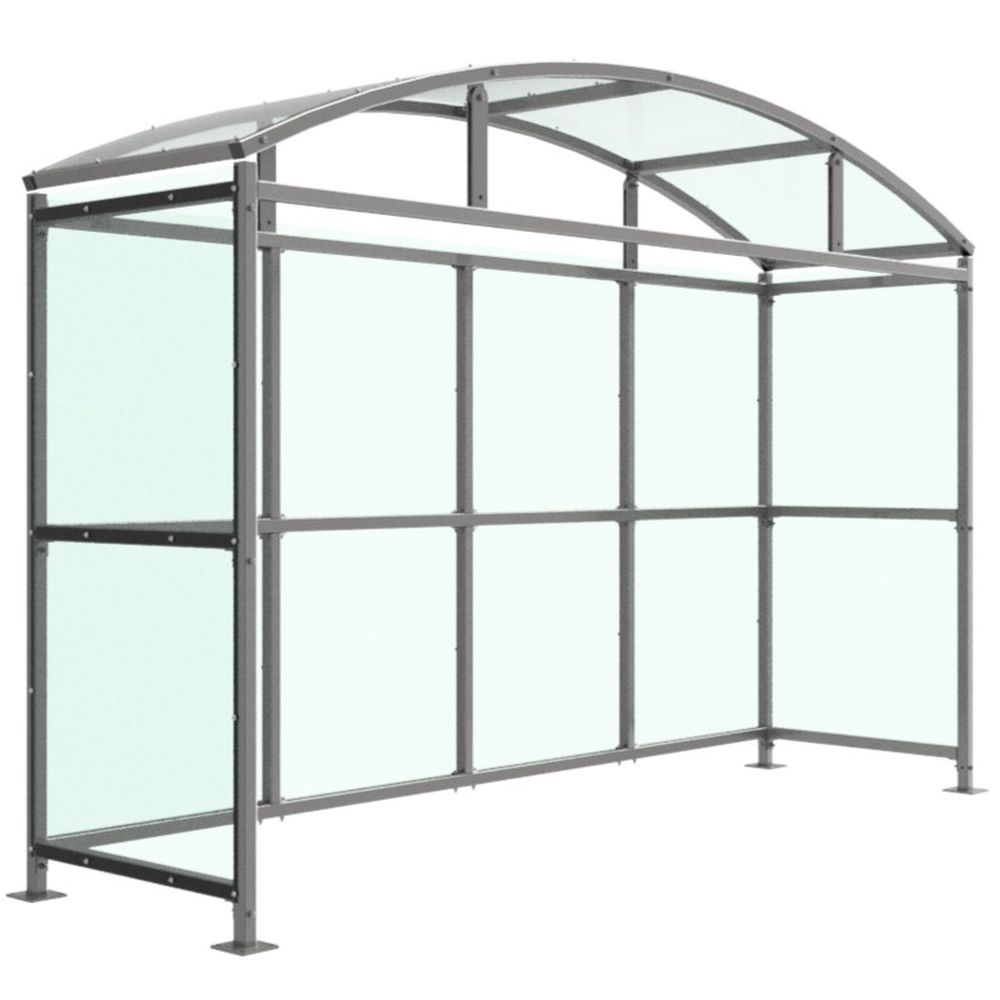

138000512 – Welton Shelter 1m – 332kg

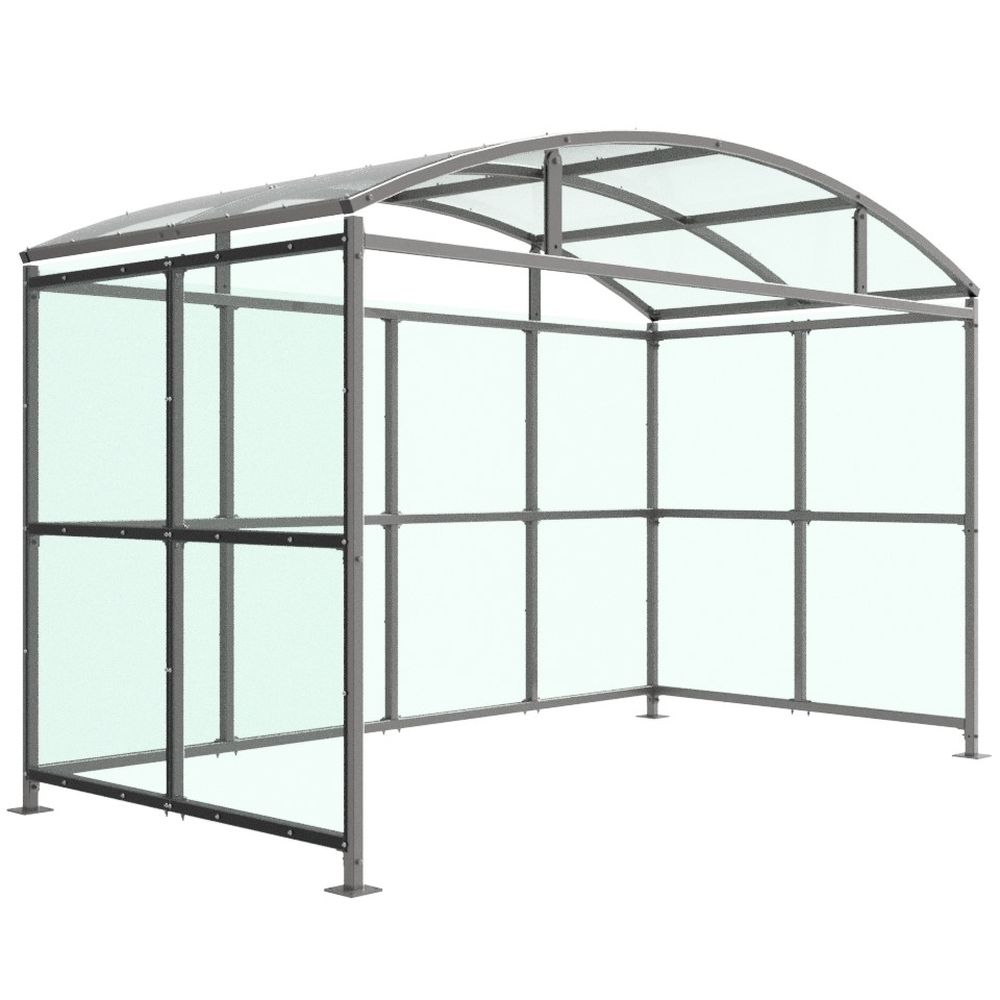

138000514 – Welton Shelter 2m – 467kg

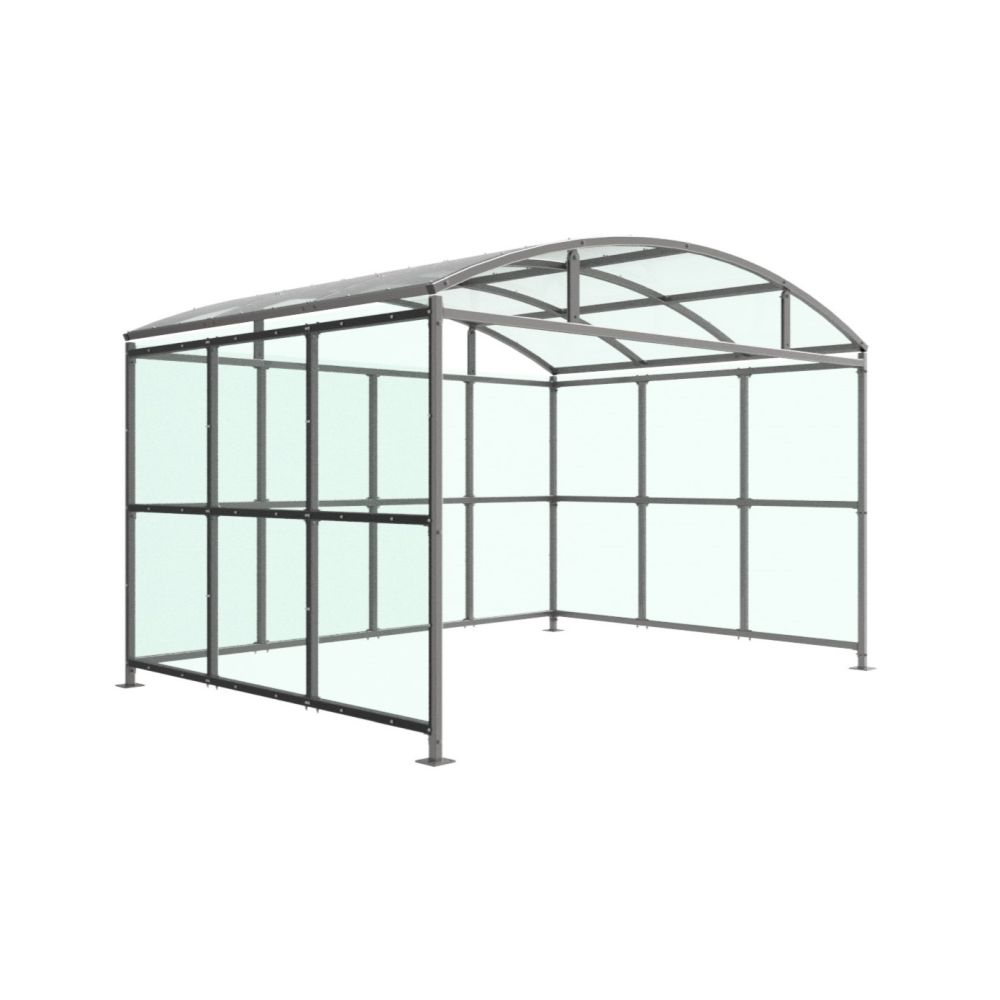

138000516 – Welton Shelter 3m – 602kg

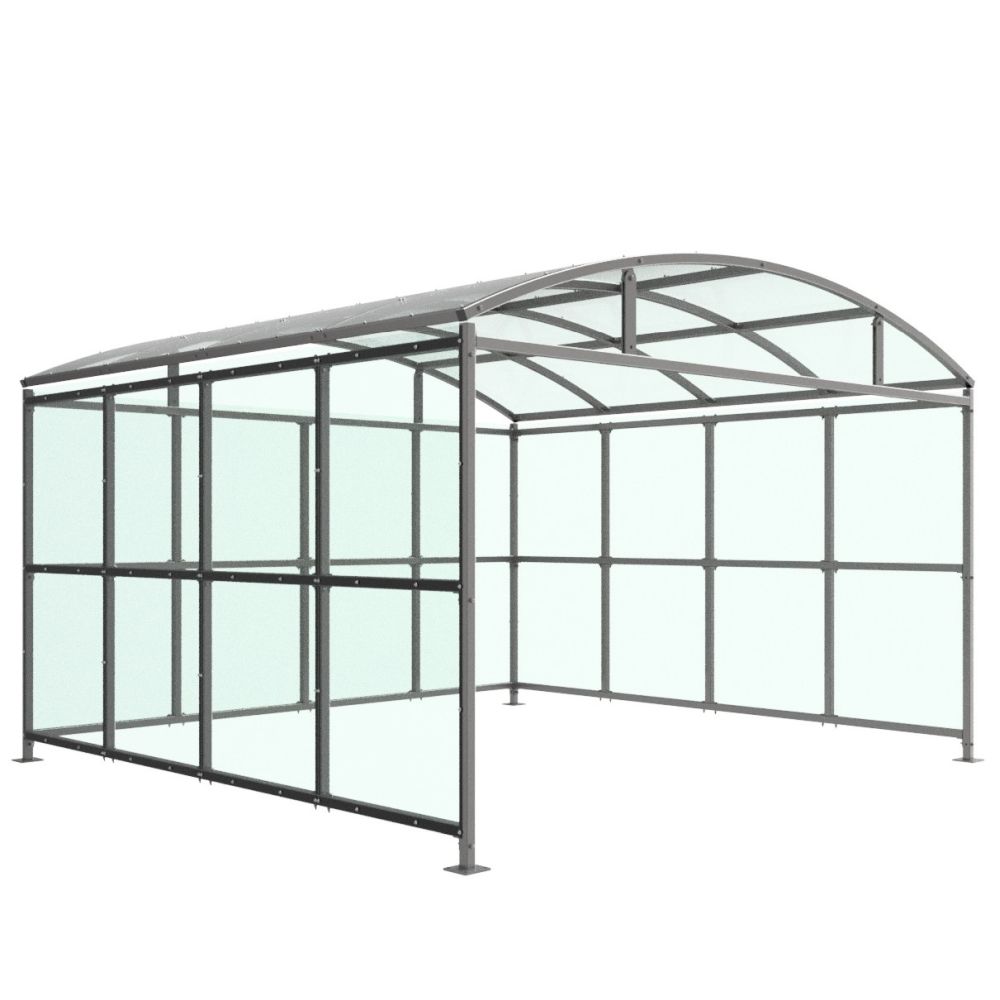

138000518 – Welton Shelter 4m – 736kg

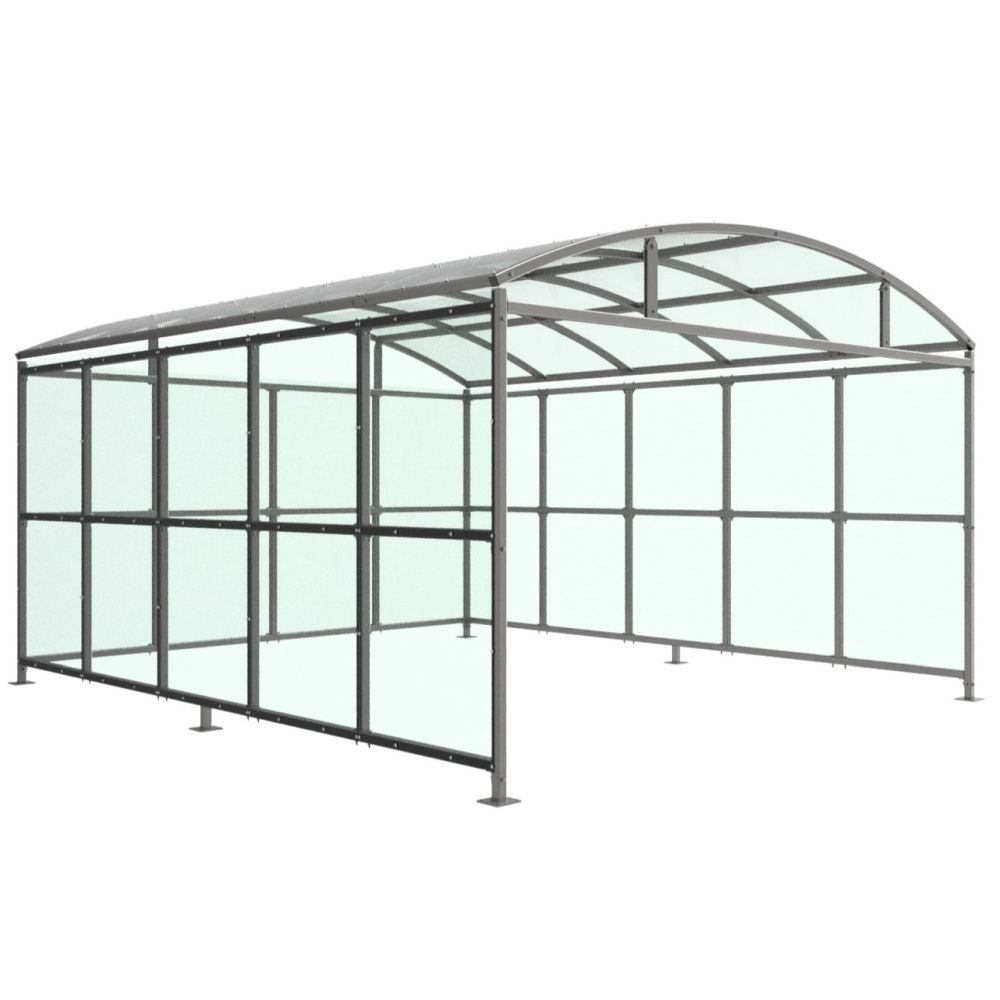

138000520 – Welton Shelter 5m – 874kg
138000511 – Welton Shelter 1m extension bay
138000513 – Welton Shelter 2m extension bay
138000515 – Welton Shelter 3m extension bay
138000517 – Welton Shelter 4m extension bay
138000519 – Welton Shelter 5m extension bay
Installation & Use
- This product is guaranteed for 12 months (if installed and used correctly)
- Each shelter leg requires bolting down to a suitable concrete surface, using expanding anchor bolts
- The area surrounding the installation must be flat and level with no nearby surface irregularities or gradient changes
- On-site assembly requires construction skill
