Description

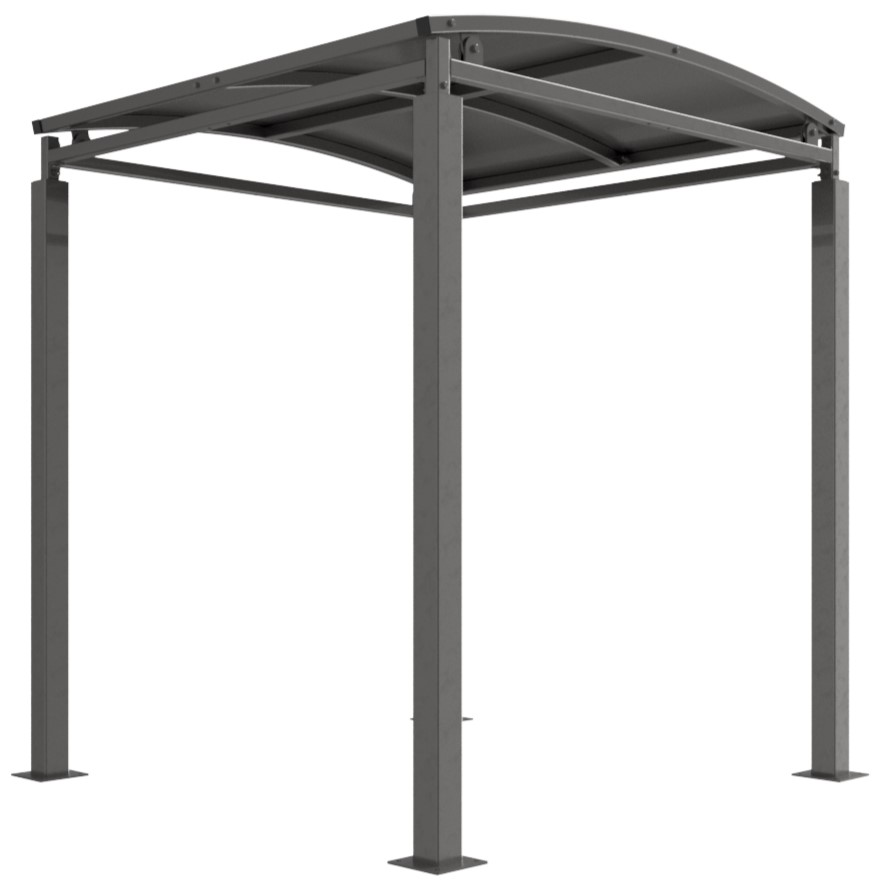

The Denham shelter is a free-standing, open sided shelter designed for on site assembly, constructed from galvanised mild steel. Complete with a 4mm PETG clear sheet or 1mm galvanised sheet curved roof.
Width of 2m, with lengths from 1m-5m, extension bays can be added to achieve the desired shelter length. Bolt down as standard.
For a shorter shelter/canopy, try our Haxby shelter. For something larger, try our Shelton shelter.
Features

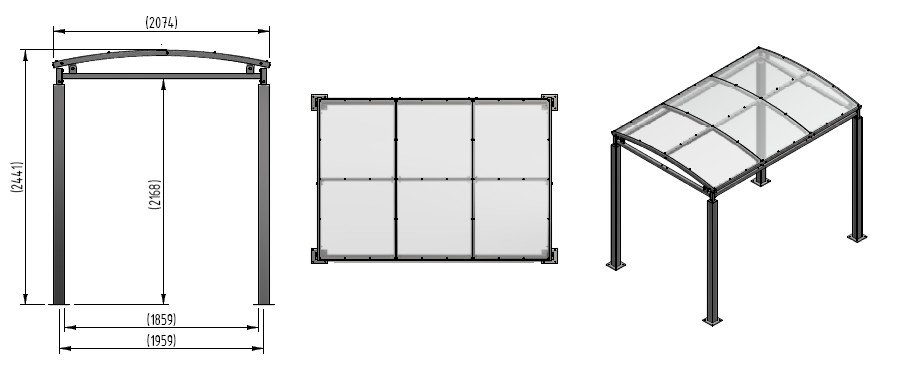

- Height – 2168mm clearance, 2441mm overall
- Width – 2074mm overall
- Length – 1m, 2m, 3m, 4m, 5m and extensions
- Square flange plate – 200mm x 200mm x 8mm
- Each flange plate requires 4 bolts
- 4mm PETG clear sheet or 1mm galvanised sheet
Installation
- This product is guaranteed for 12 months (if installed and used correctly)
- Each shelter leg requires bolting down to a suitable concrete surface, using expanding anchor bolts
- The area surrounding the installation must be flat and level with no nearby surface irregularities or gradient changes
- On-site assembly requires construction skill
PETG Sheet

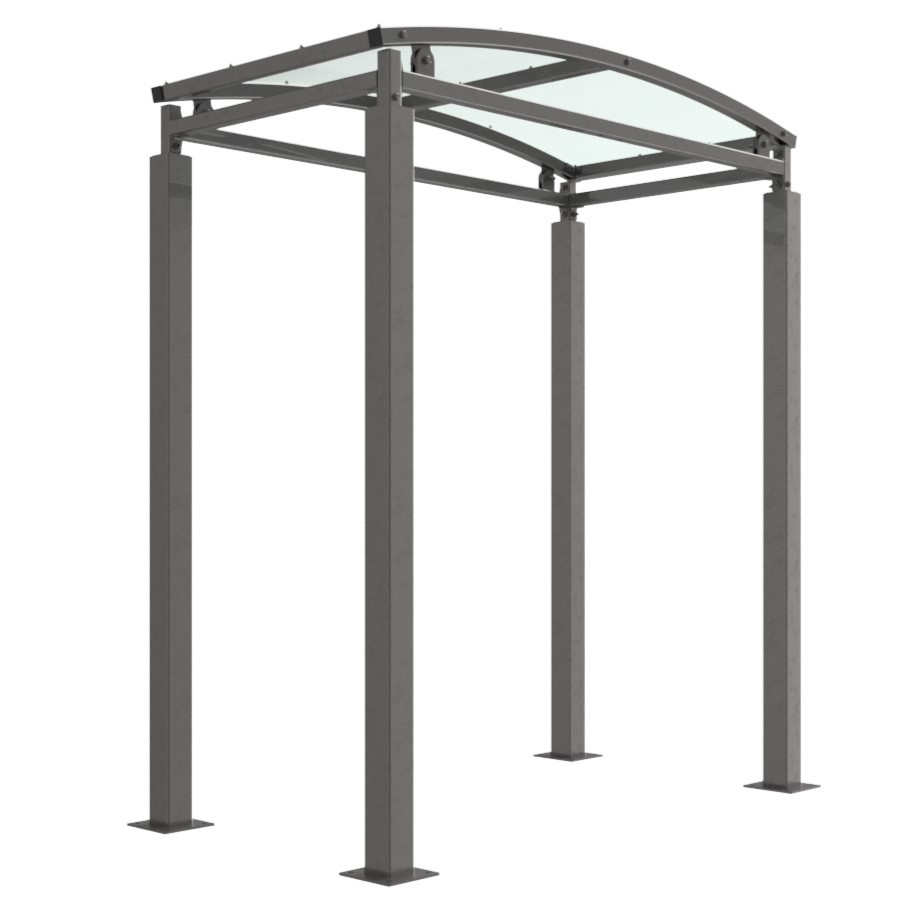

138200580 – Denham Shelter 1m – 155kg

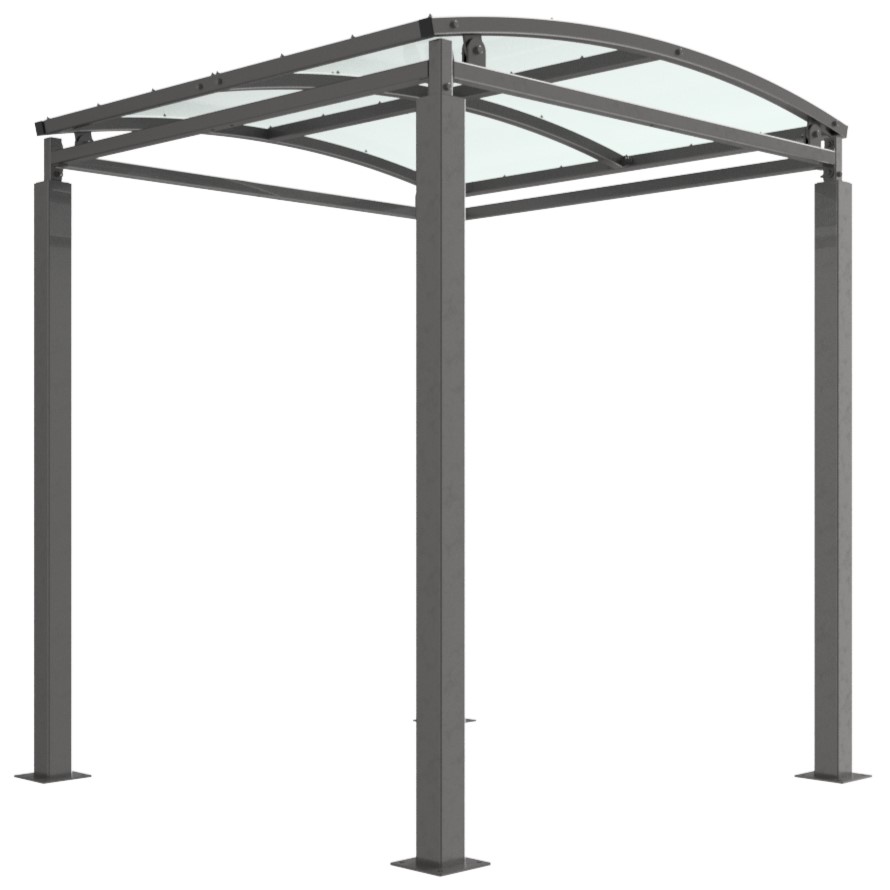

138200581 – Denham Shelter 2m – 193kg
138200582 – Denham Shelter 3m – 231kg

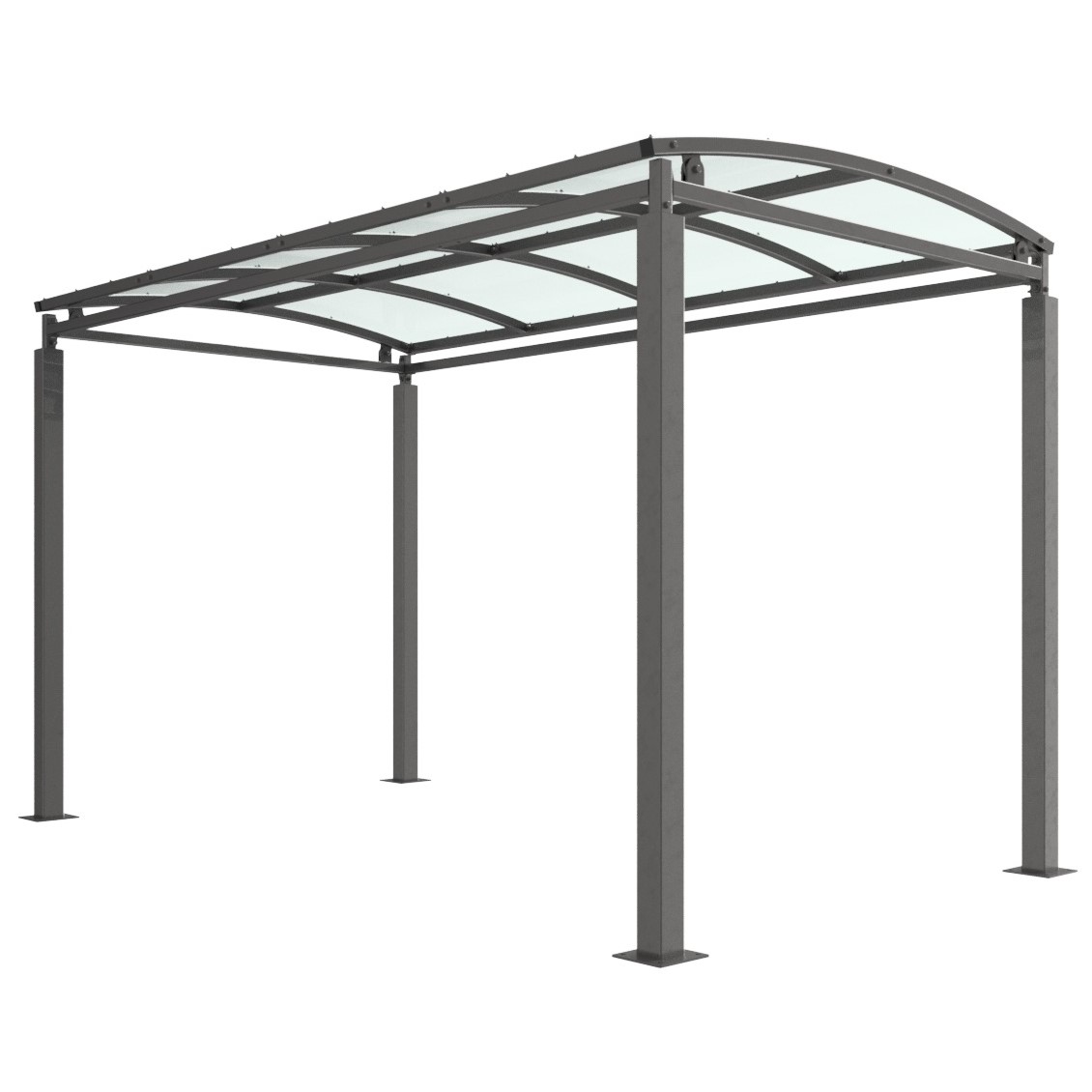

138200583 – Denham Shelter 4m – 269kg

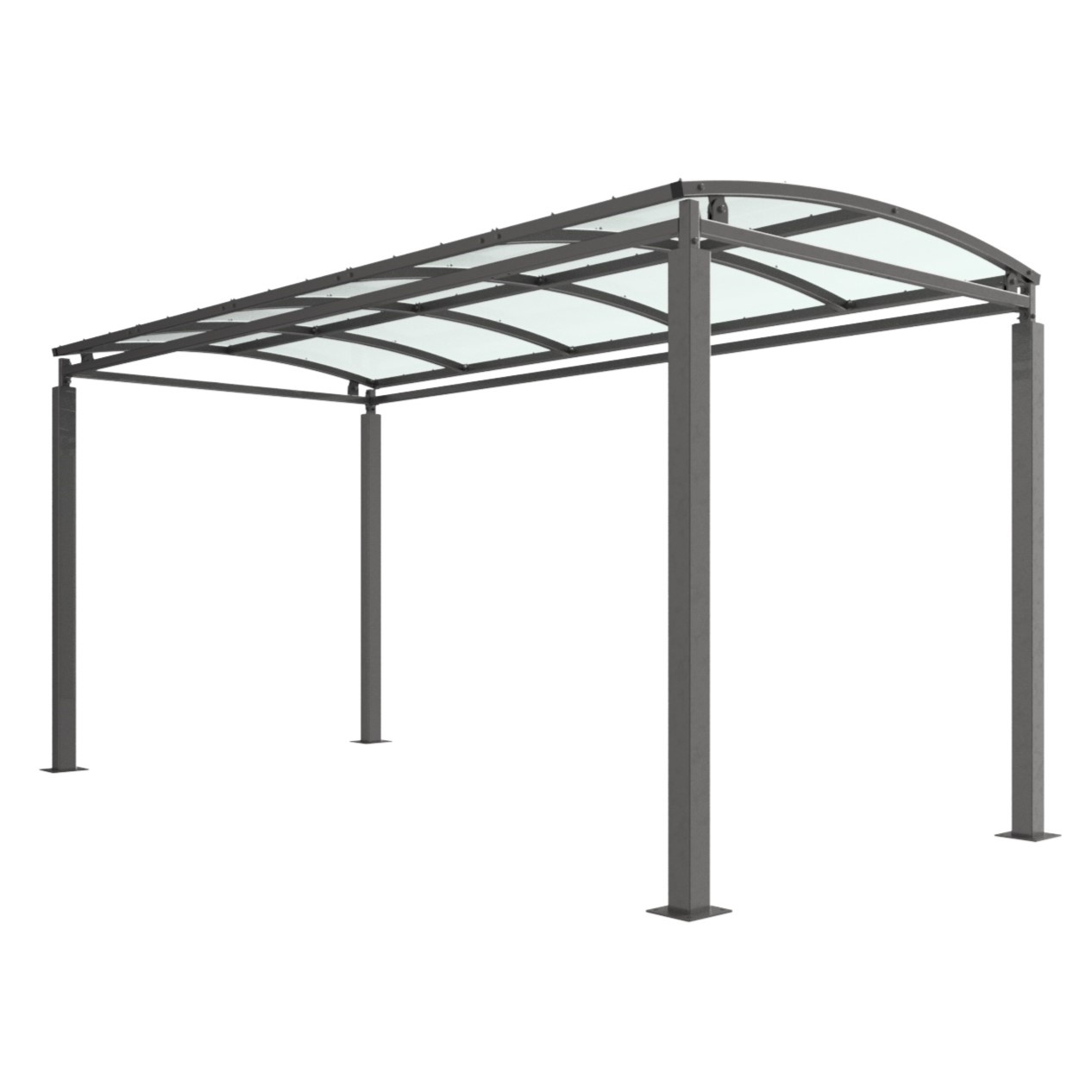

138200584 – Denham Shelter 5m – 307kg
138200585 – Denham Shelter 1m extension bay
138200586 – Denham Shelter 2m extension bay
138200587 – Denham Shelter 3m extension bay
138200588 – Denham Shelter 4m extension bay
138200589 – Denham Shelter 5m extension bay
Galvanised Sheet

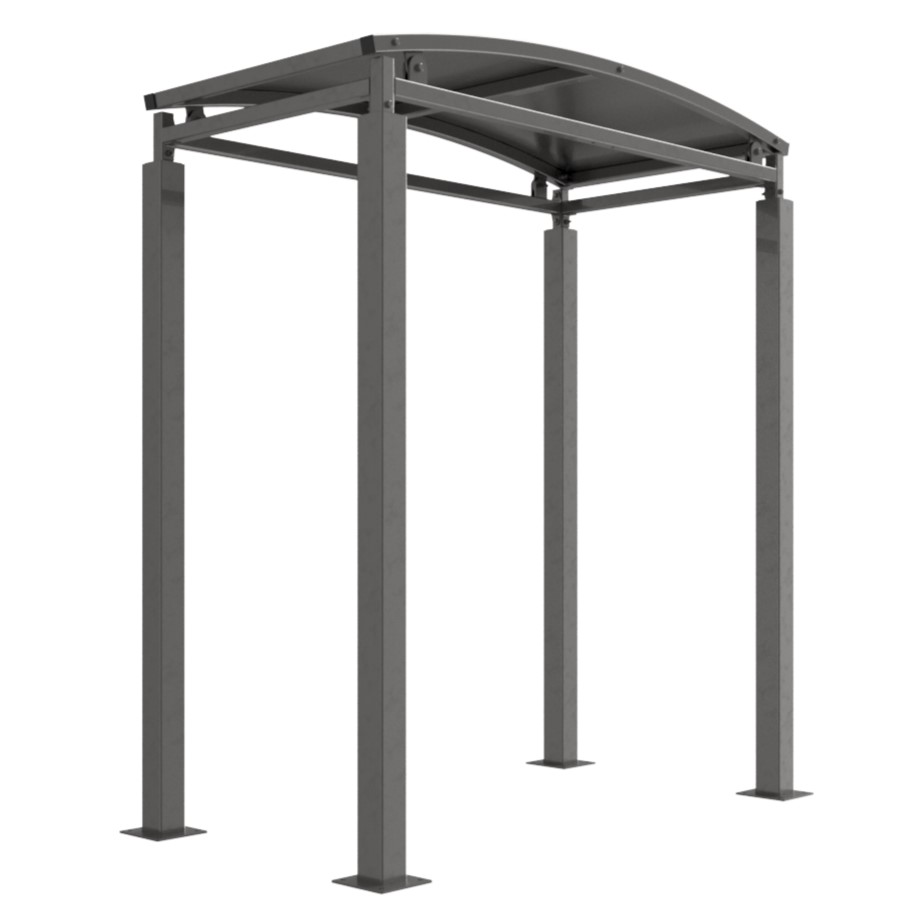

138200590 – Denham Shelter 1m – 158kg
138200591 – Denham Shelter 2m – 200kg

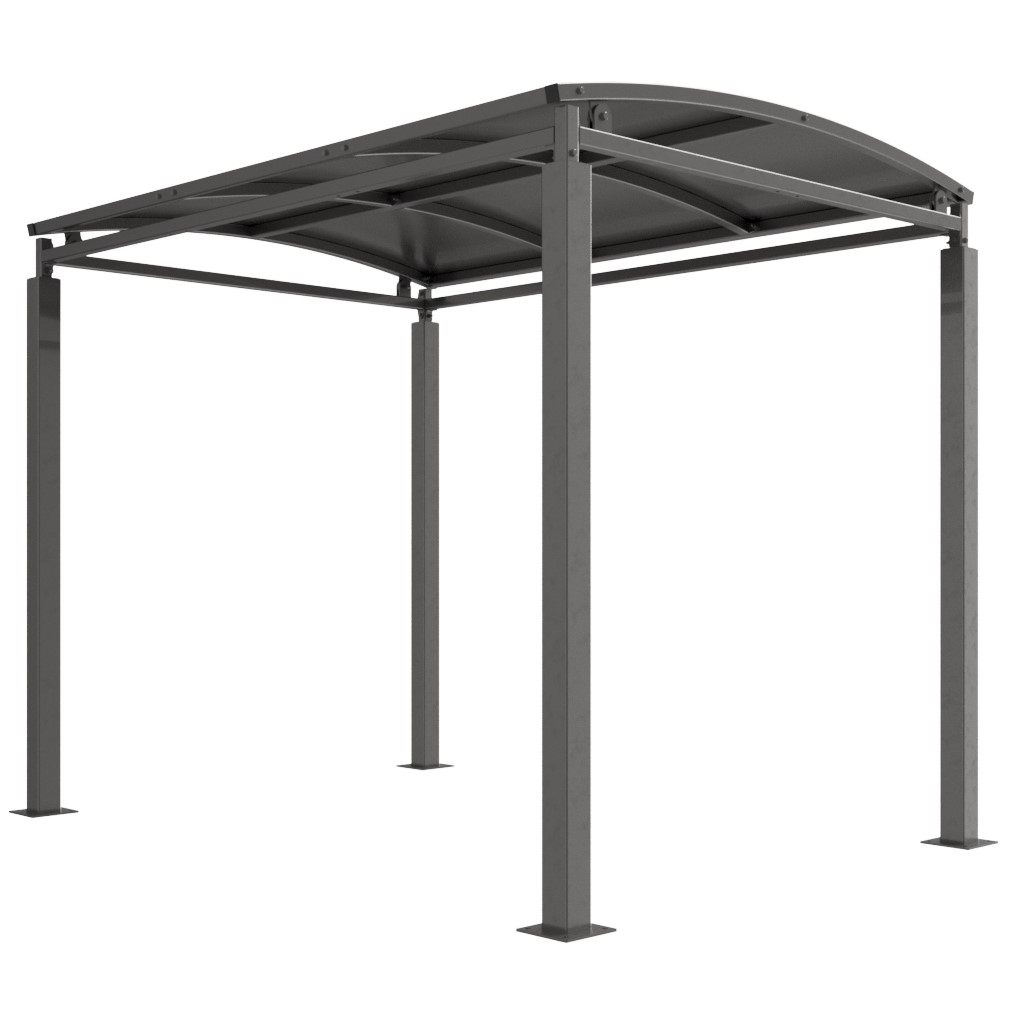

138200592 – Denham Shelter 3m – 242kg
138200593 – Denham Shelter 4m – 283kg

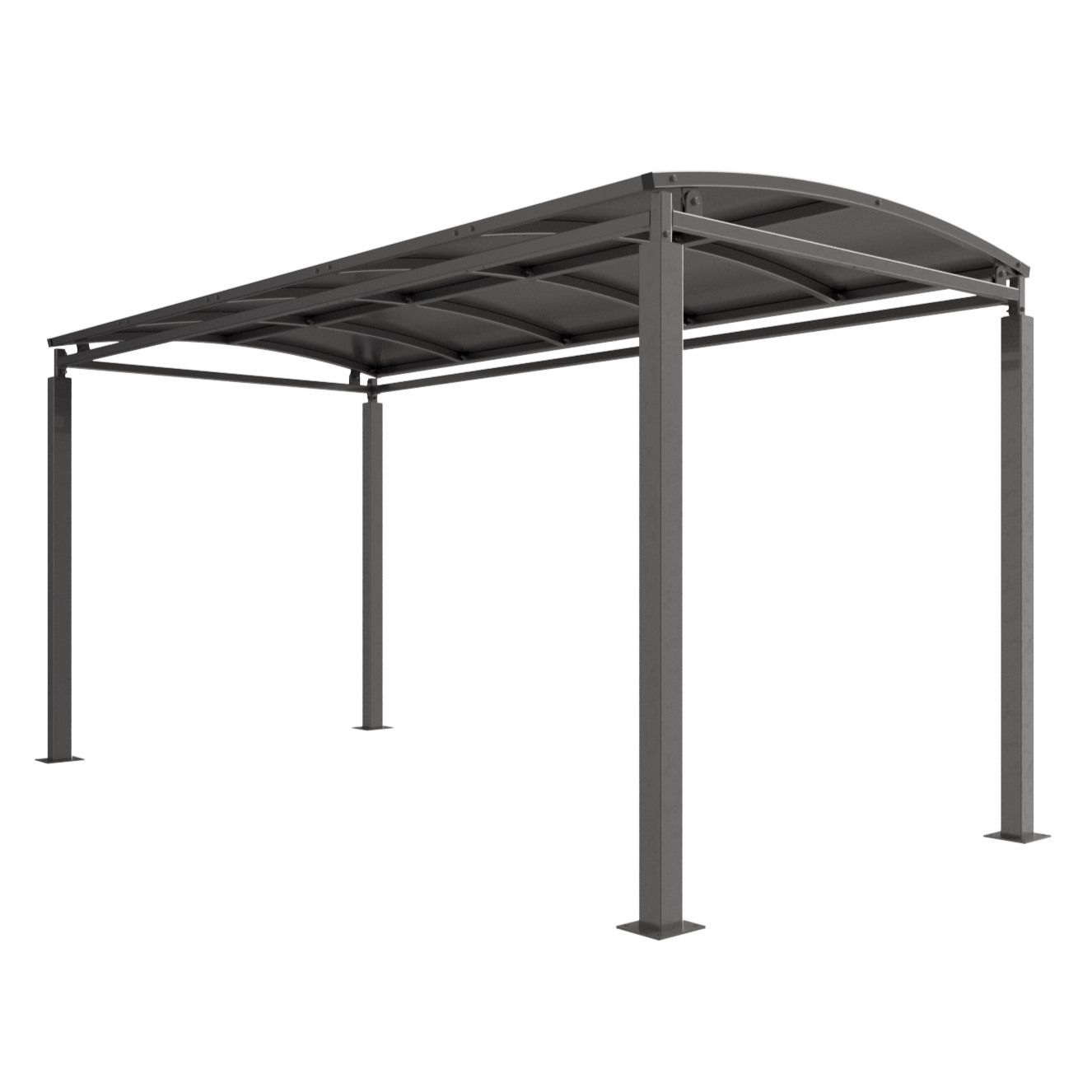

138200594 – Denham Shelter 5m – 325kg
138200595 – Denham Shelter 1m extension bay
138200596 – Denham Shelter 2m extension bay
138200597 – Denham Shelter 3m extension bay
138200598 – Denham Shelter 4m extension bay
138200599 – Denham Shelter 5m extension bay
