Description
The Shelton shelter is a free-standing, open sided shelter designed for on site assembly, constructed from galvanised mild steel. Complete with a 4mm PETG clear sheet curved roof.
Width of 4m, with lengths from 1m-5m, extension bays can be added to achieve the desired shelter length. Bolt down as standard.
If you require a smaller width shelter, try our Denham shelter.
Features
- Height – 2168mm clearance, 2773mm overall
- Square flange plate – 200mm x 200mm x 8mm
- Width – 4121mm overall
- Each flange plate requires 4 bolts
- Length – 1m, 2m, 3m, 4m, 5m and extensions
- 4mm PETG clear sheet
Installation
- This product is guaranteed for 12 months (if installed and used correctly)
- Each shelter leg requires bolting down to a suitable concrete surface, using expanding anchor bolts
- The area surrounding the installation must be flat and level with no nearby surface irregularities or gradient changes
- On-site assembly requires construction skill

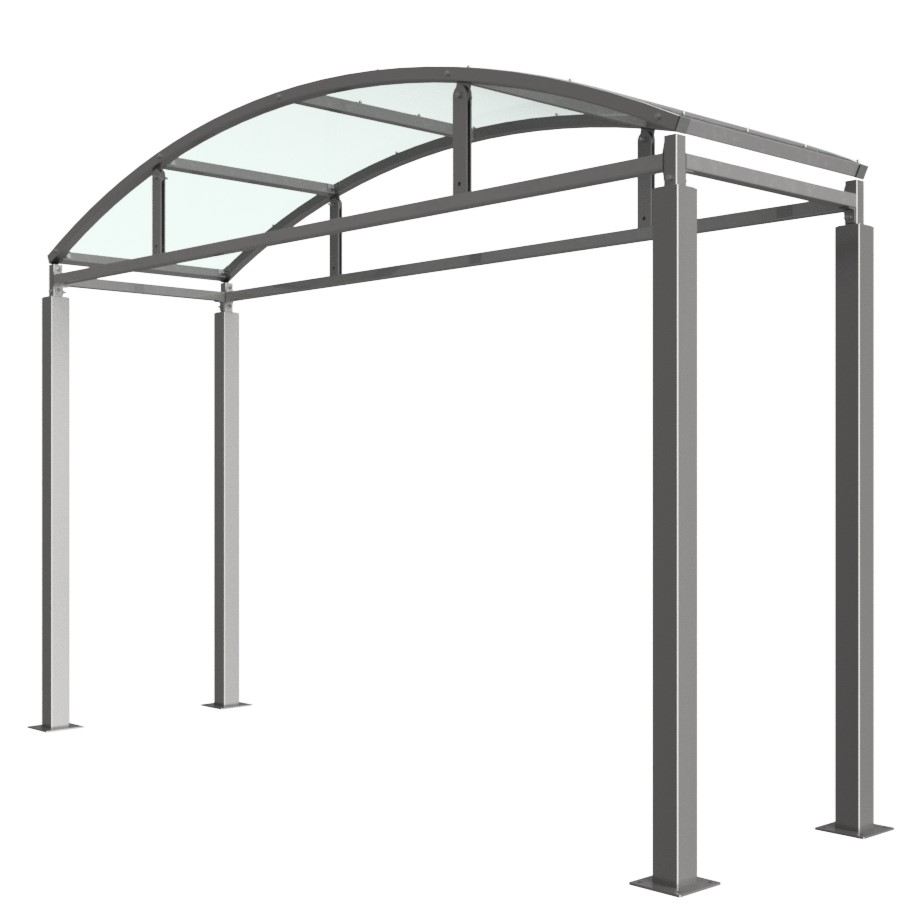

138200350 – Shelton Shelter 1m – 214kg

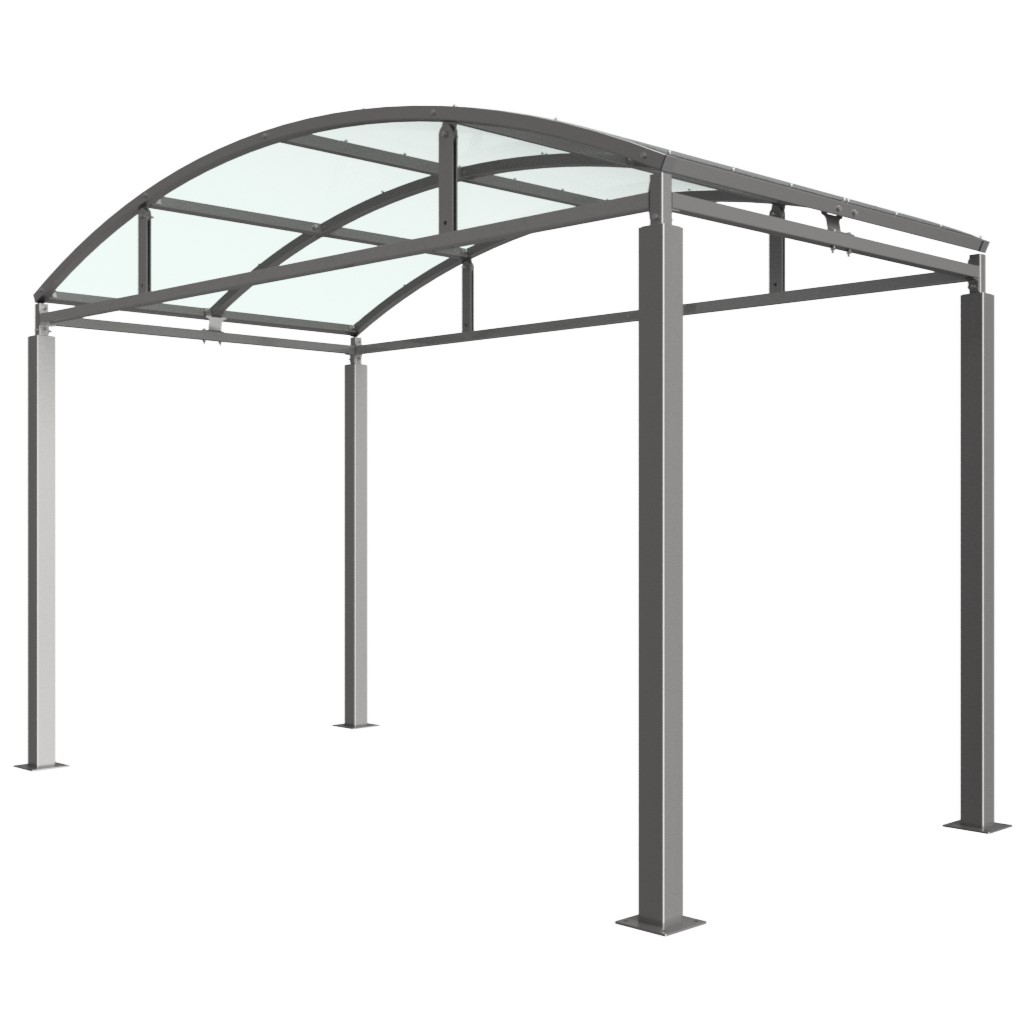

138200351 – Shelton Shelter 2m – 281kg
138200352 – Shelton Shelter 3m – 347kg

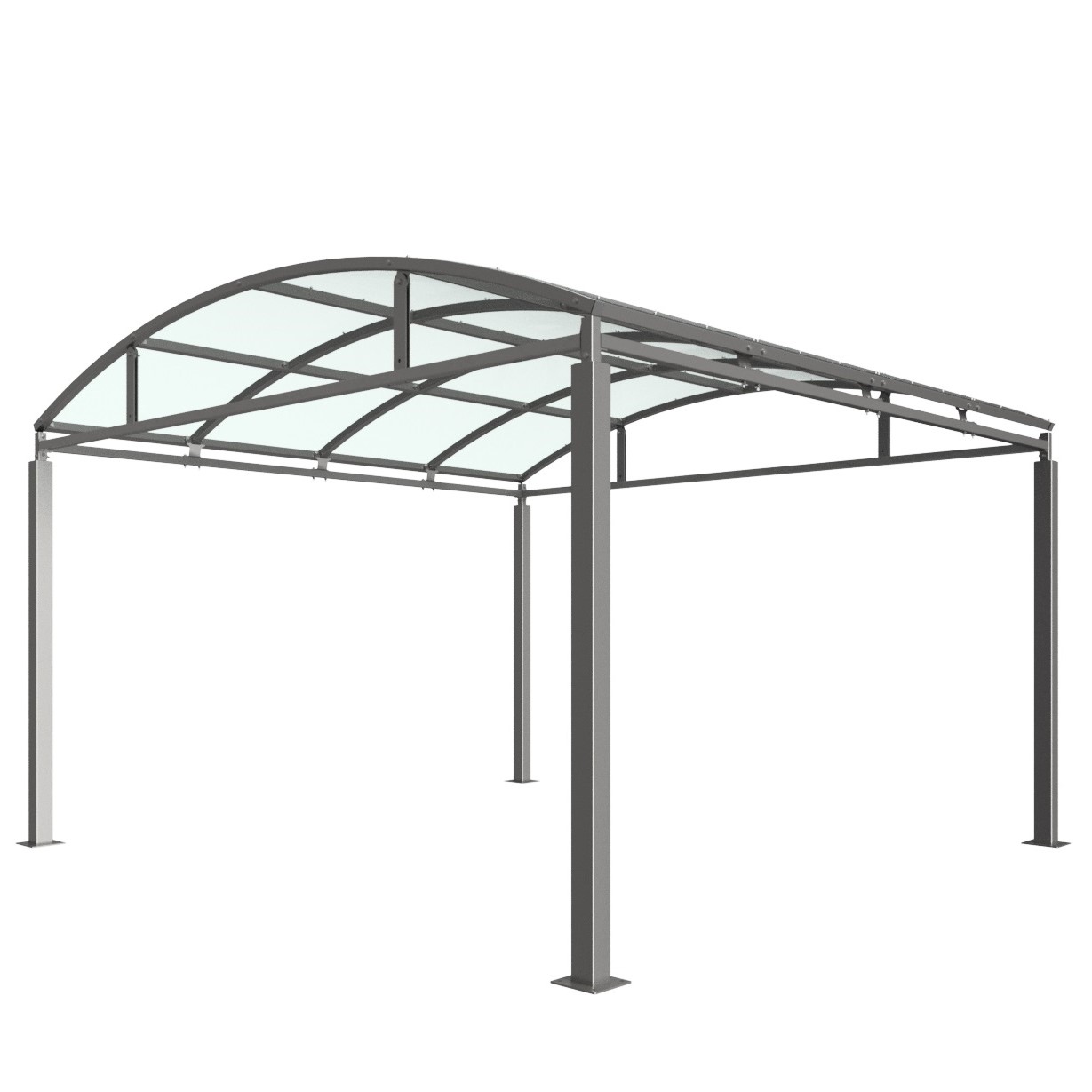

138200353 – Shelton Shelter 4m – 414kg

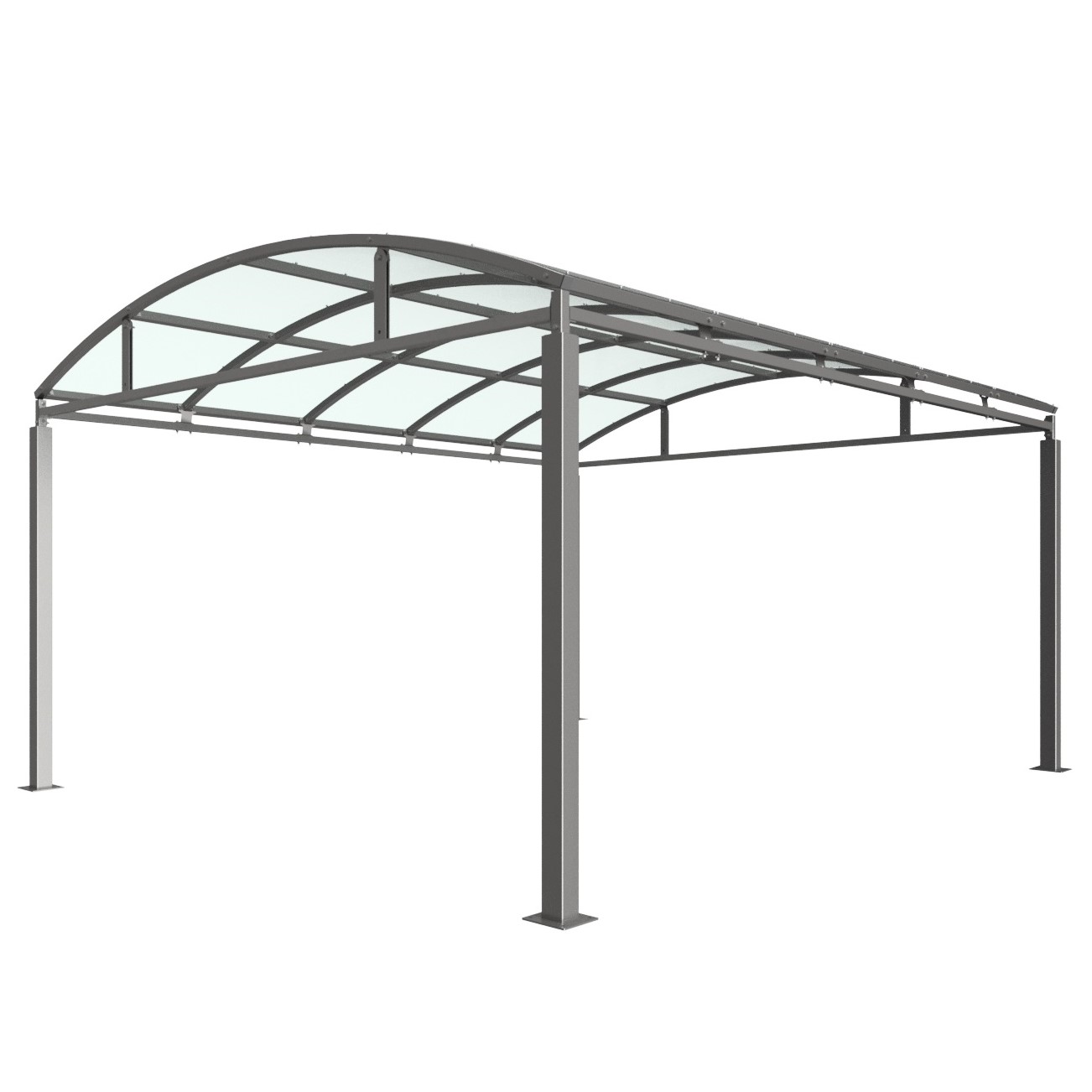

138200354 – Shelton Shelter 5m – 481kg
138200355 – Shelton Shelter 1m extension bay
138200356 – Shelton Shelter 2m extension bay
138200357 – Shelton Shelter 3m extension bay
138200358 – Shelton Shelter 4m extension bay
138200359 – Shelton Shelter 5m extension bay
