Description

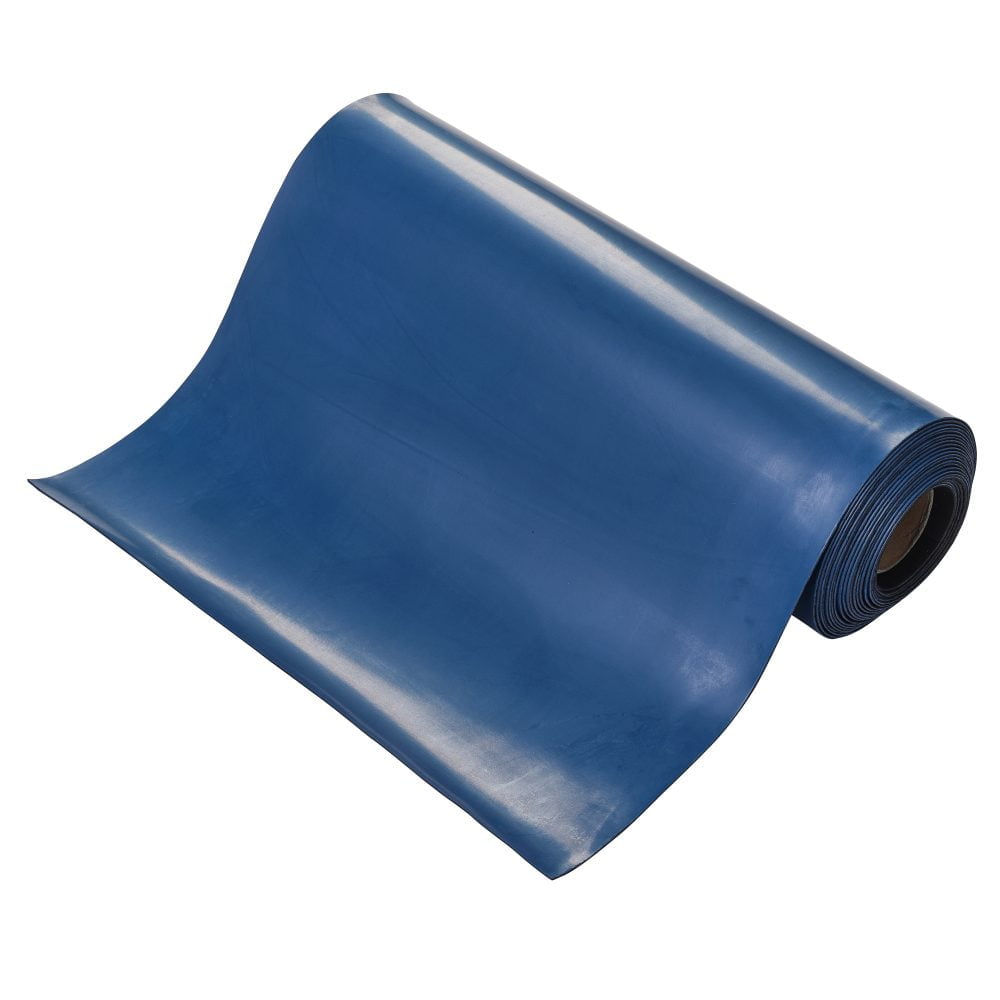

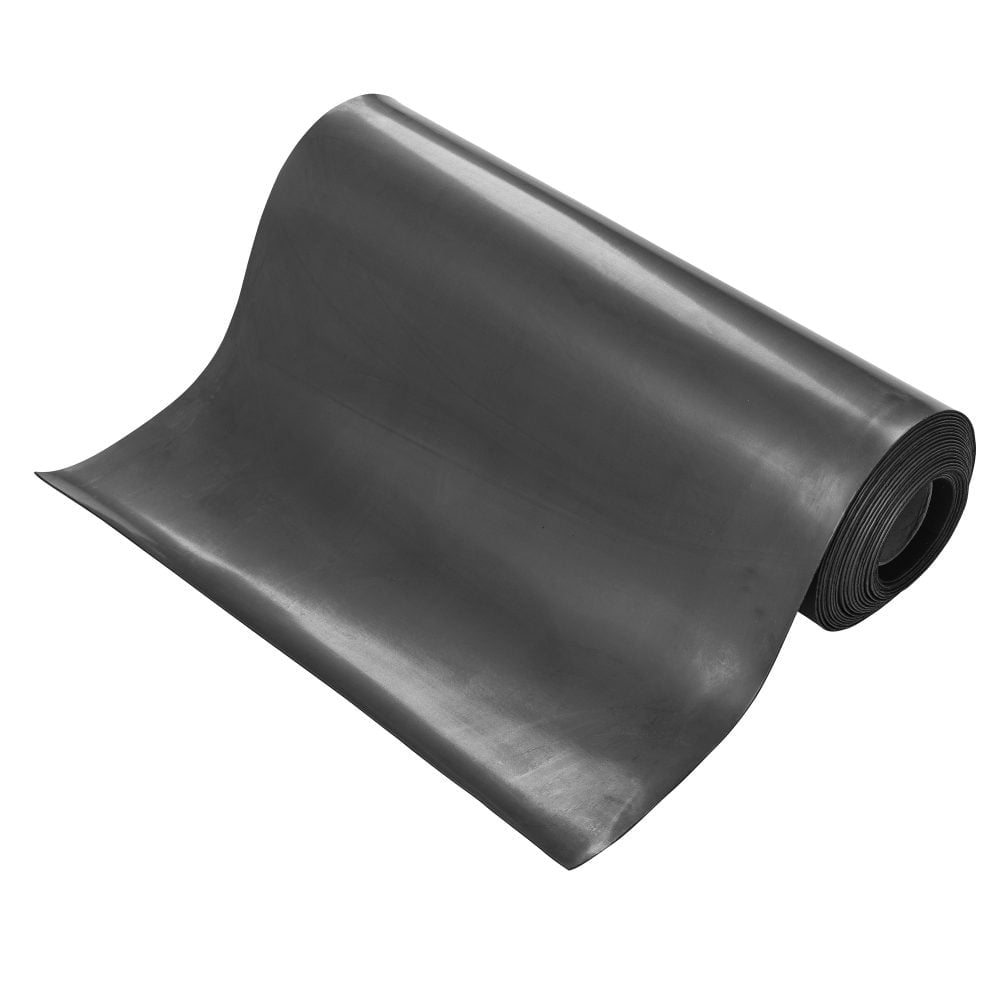

Dual layer rubber sheet for electrical applications
- The ESD Antistatic Double Layer Sheet is made of two layers: a conductive bottom layer made of an NBR/NR blend and a static dissipating top layer made of synthetic rubber NBR.
- The structure of the sheet is such that both layers have an approximate 1:1 ratio in terms of thickness.
- Durable, with good anti-acid, anti-alkali, and antichemical flux characteristics
- Surface is resistant to high temperature and most chemicals.
- Product is non-marking. Does not leave any marks, stain, discoloration or residue on the floor.
- High level of flexibility without cracking.
- Prevents dangerous sparks in volatile working environments.
- Easy to maintain, and can be cleaned with general detergents.

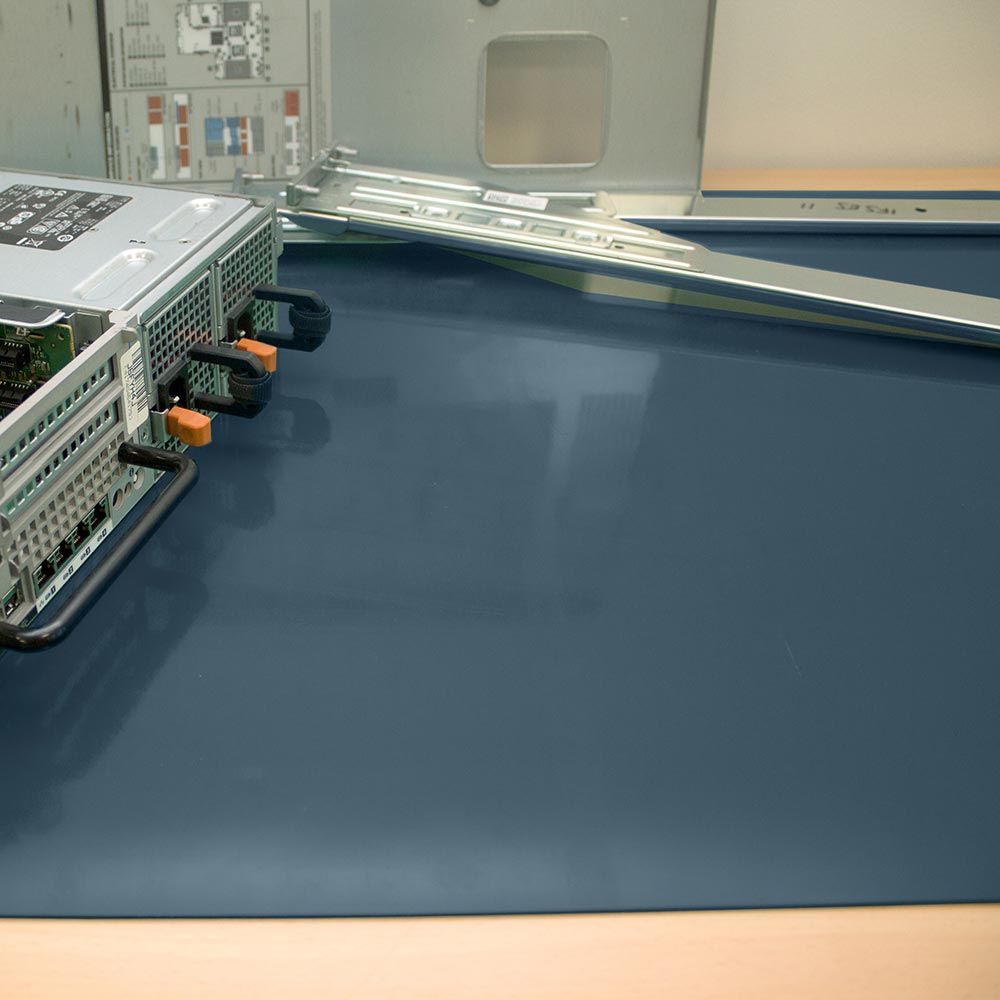

- ESD Antistatic Sheet is usually used for E-Shops, Clean Rooms, Computer Rooms, other precision instruments and rooms for equipment operation, sensitive electrical applications and circuit manufacturing.

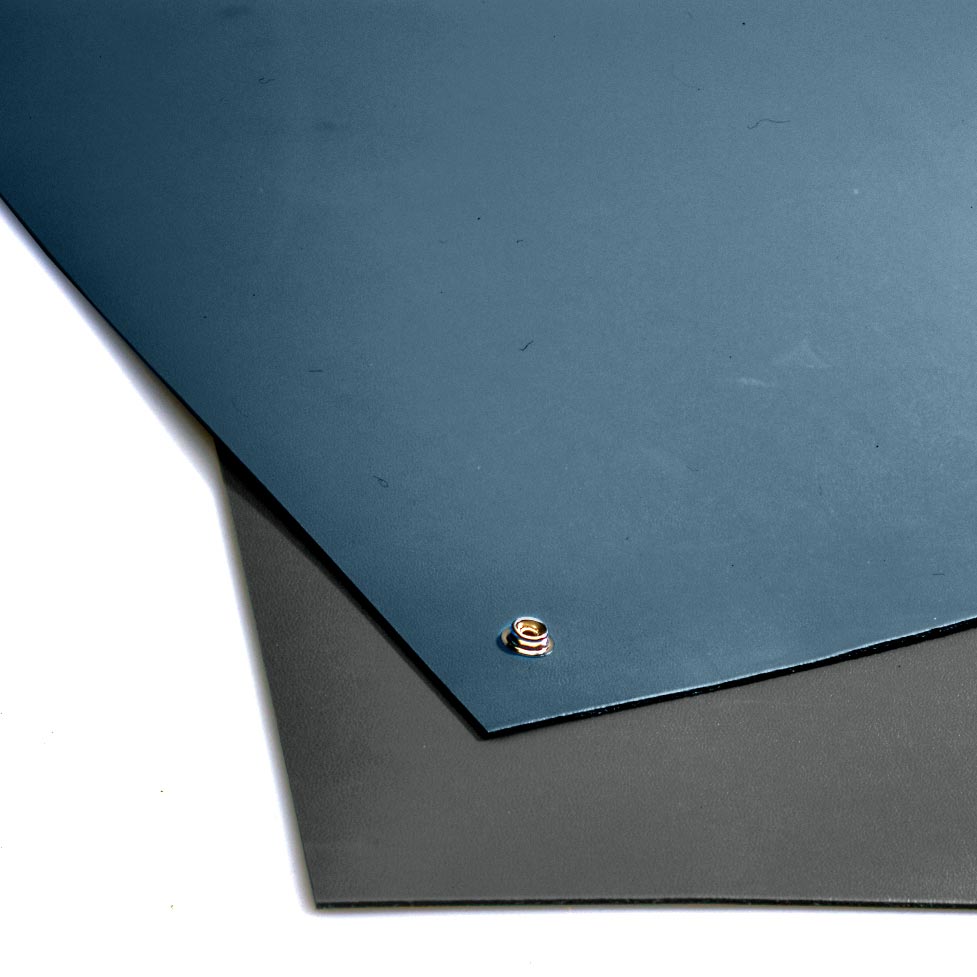

- Surface finish: Top Coloured side smooth surface and Black surface textured
- Resistant to soldering iron and solder splatter.

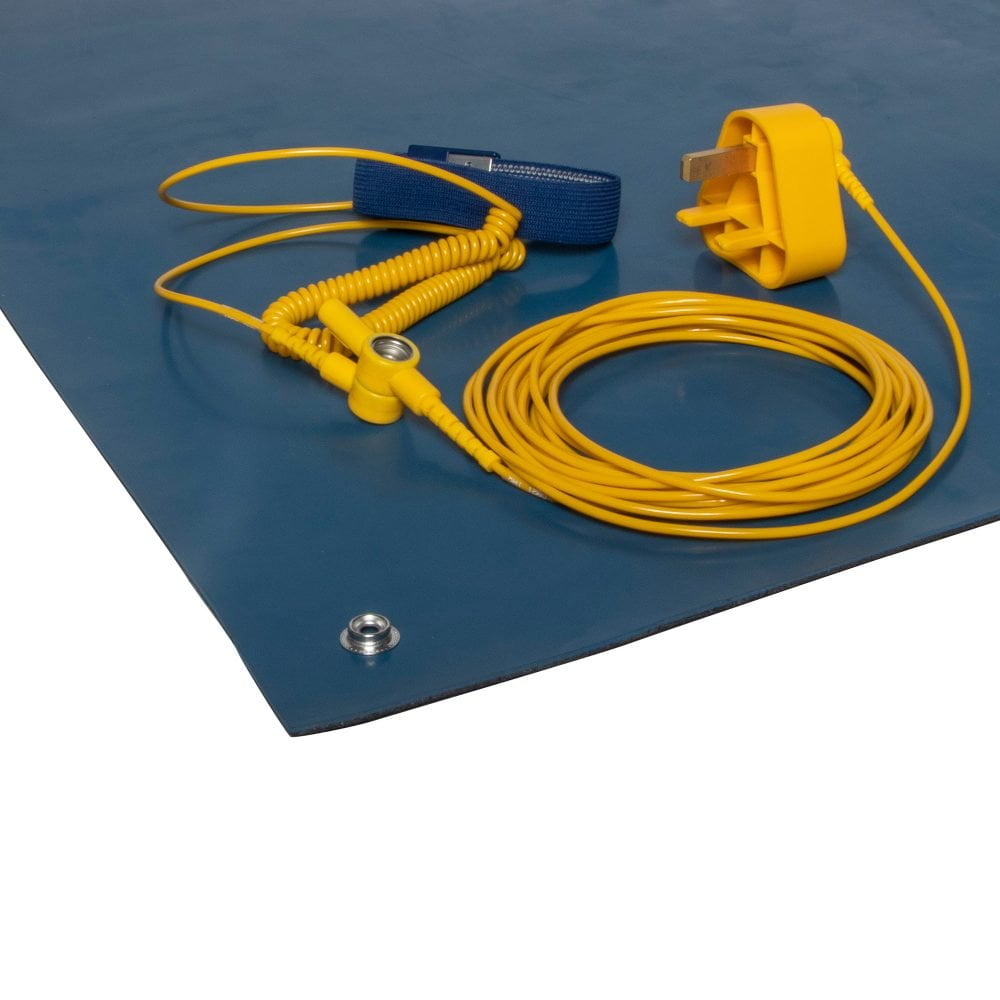

- Not supplied with anti-static straps and studs.
| Material | NBR |
| Recycled Material Content % | 15 |
| Natural Material Content % | 37 |
| Product Height | 2 mm |
| Tensile Strength | 6 +/- 1 |
| Elongation | 350 +/- 50 |
| Specific gravity (g/cm³) | 1.3 +/- 0.05 |
| Shore A Hardness | 60 +/- 5 |
| Tear Strength/Nmm-1 | 45 +/-5 |
| Surface Resistivity Ω Bottom Layer | 10³-10⁴ Ω |
| Surface Resistivity Ω Top Layer | 10⁷- 10⁸ Ω |
